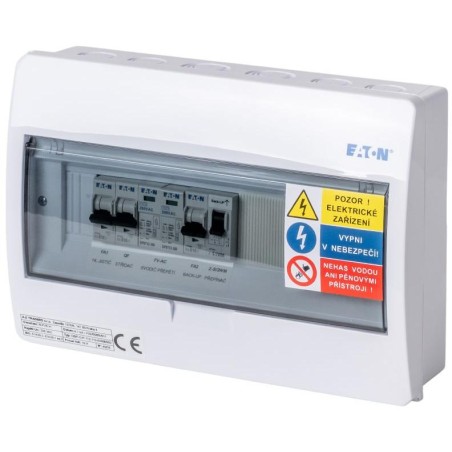

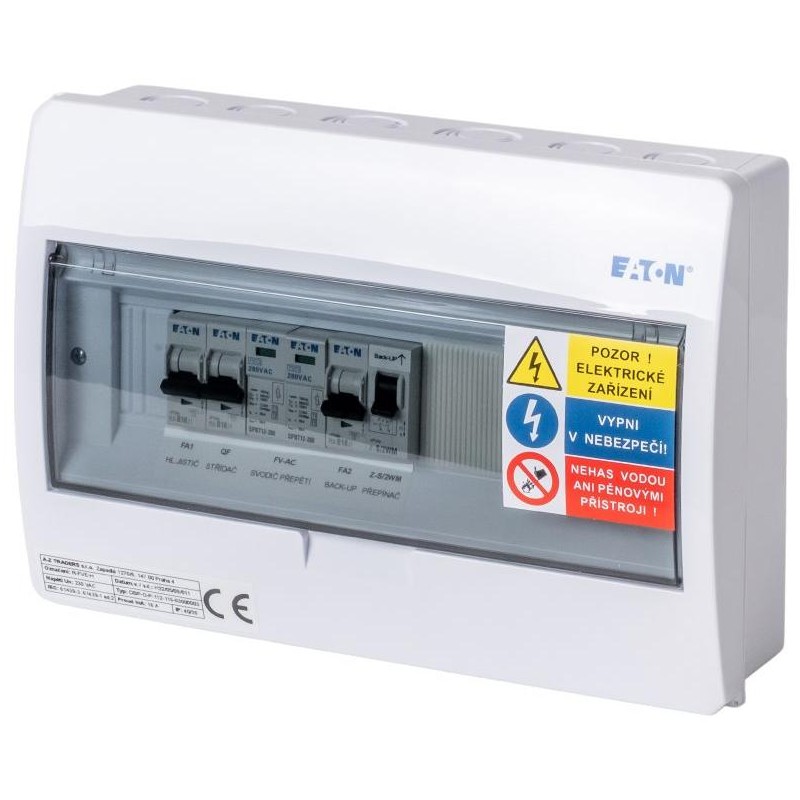

Xtend Solarmi ACZ1 fitted distribution board
AC distribution board designed for wall mounting, IP40/20, serving as an input/output distribution board (at the inverter) for single-phase photovoltaic power plants (typically GoodWe 3648-EM and 3648D-ES inverters) to ensure protection of the outputs, including the switch, in the event of a fault or when the inverter is switched off.
Its advantage is its compact size and the ability to easily stack with other AC cabinets side by side or one under the other. This allows installation even in areas with limited space.
The switchboard is equipped with a B16/1 circuit breaker to protect the input to the inverter and the output for the backup circuits. There is also a manual two-pole switch to bypass the backup circuits during service or when the inverter is turned off.
Suitable for combination with the R-FVE-DC1, R-FVE-DC2 and R-FVE-BAT100 distribution board for the DC part of the installation and the R-FVE-Z1 for the outlet with sockets.
- Meets the standards/requirements according to ČSN EN IEC 61439-3 and 61439-1 edition 2
- White plastic distribution box + smoked organic glass plastic door
- Protection class IP40/20C & Mechanical resistance IK05
- Rated voltage 230 V AC & Rated insulation voltage 240 V AC
- 1 row, 12 modules
Component list:
1× Surface-mounted distribution board, transparent plastic door, 1 row, 12 modules
1× Switch, 2 changeover contacts, 16 A
2× Surge arrester class T1+T2 (B+C), 1 pole
3× Circuit breaker PL6, char B, 1-pole, Icn = 6 kA, In = 16 A
BASIC SPECIFICATIONS
Intended use: for photovoltaics
Fitted: yes
Material: plastic
Weight: 1.7 kg
Dimensions: 303 × 212 × 98 mm
