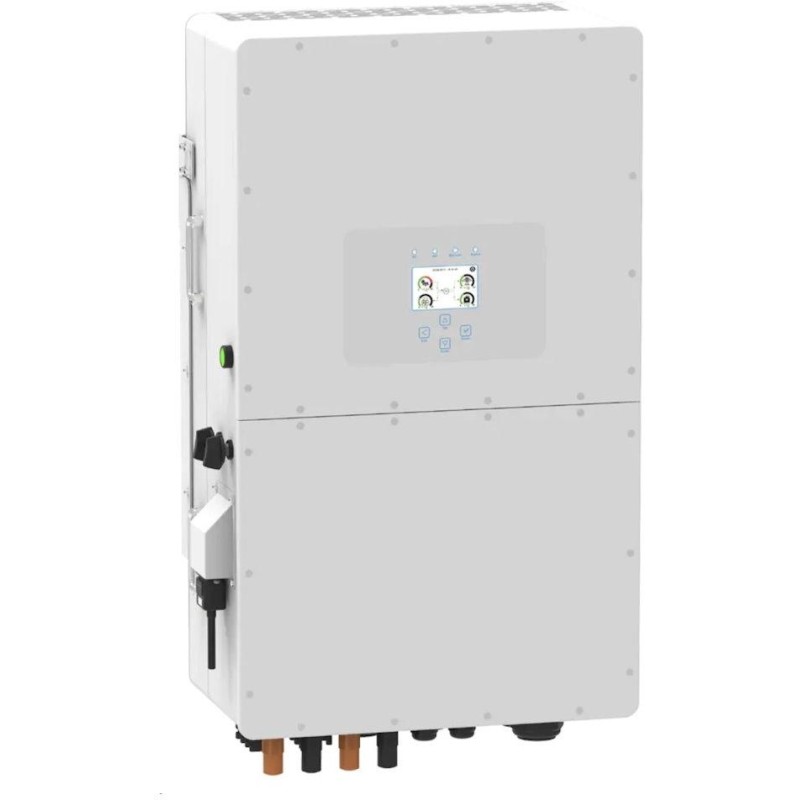

Xtend Solarmi SUN-50K-SG01HP3-EU-BM4
Multifunctional 3-phase asymmetric (100%) hybrid inverter/converter from the manufacturer DEYE with a high-voltage battery, which combines the functions of an inverter, solar charger and battery charger . It offers uninterrupted power support with the possibility of regulation. A comprehensive LCD display provides user-configurable and easily accessible control (battery charging, AC/solar charging, permissible input voltage depending on various applications, etc.). It is equipped with an RS-485/CAN port for communication and management. The inverter allows connection to the system, including "smart control" , and at the same time connection to the system of sharing the generated energy .
- 4 MPP trackers, up to 8 strings in 2+2+2+2 configuration
- This converter is listed in the list of approved converters for connection to the distribution system according to PPDS 2025. We will send a protocol on verification of compliance with RfG upon request.
- Intelligent and flexible system - CAN, BMS, RS-485
- Support for energy storage from diesel generator
- 6 time slots for battery charging/discharging
- Intelligent air cooling
- Protection class IP65
BASIC SPECIFICATIONS
Charger (battery)
Battery type: lithium-ion battery
Battery voltage range: 160-800V
Max. charging current: 50 A + 50 A
Max. discharge current: 50 A + 50 A
Charging process: 3 stages / equalization
External temperature sensor: no
Charging system for Li-Ion (LiFePO4) batteries: customization using a BMS system
PV input (photovoltaics)
Max. DC input power: 65000 W
PV input voltage: 180-1000V
MPPT range: 150-850V
Rated DC input voltage: 600 V
Starting voltage: 180 V
PV input current: 36A + 36A + 36A + 36A
Max. PV ISC: 55 A + 55 A + 55 A + 55 A
Number of MPPTs: 4
Number of strings per MPPT: 2 + 2 + 2 + 2
Inverter (AC output)
Power (rated): 50000 W (max. 55000 W)
Power (peak): 1.5x rated, 10 seconds
Rated current: 75.8 A
Max. continuous AC current flow: 200 A
Output voltage: AC 220/380 V, AC 230/400 V (50/60 Hz), 3L/N/PE
Efficiency: 97.0% (MPPT 99.9%)
Protection: IP65
Dimensions: 894 × 527 × 294 mm
Weight: 80 kg
