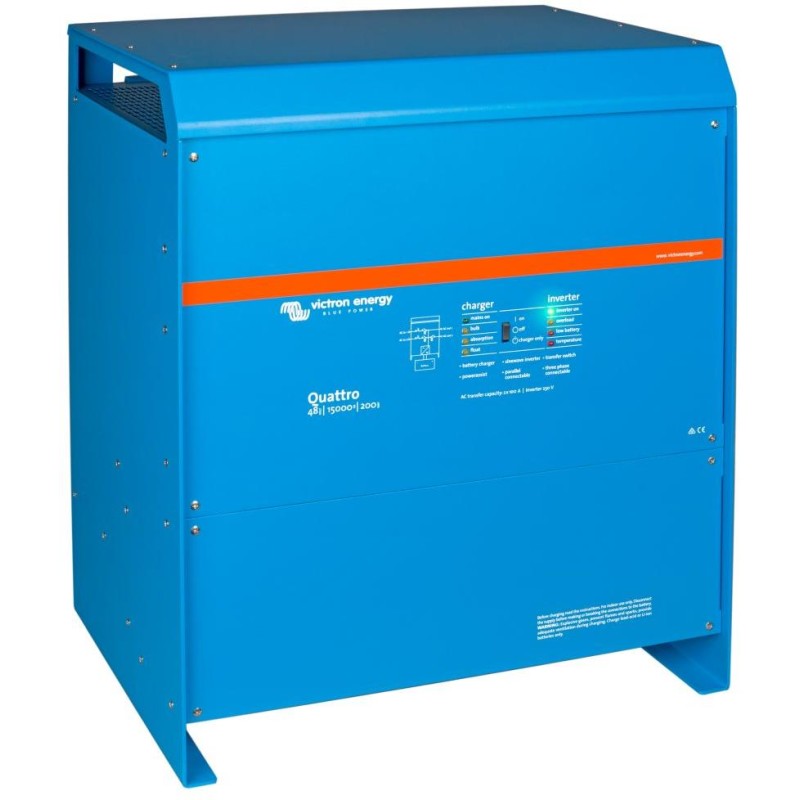

Victron Quattro inverter/charger 48V/15000VA/200A-100A/100A

Victron Quattro 48 V (15000 VA) The Quattro is a sophisticated AC-DC battery charger and DC-AC inverter with two AC inputs, a pure sine wave output voltage and an ultra-fast switch between the grid (generator) and batteries. Similar to the MultiPlus, the Quattro is also a combined device that includes an inverter and a charger. In addition, it can accept two AC inputs and automatically connects to an active source. Its functions include a voltage converter (pure sine wave), adaptive charging, PowerAssist hybrid technology and multiple functions for system integration, such as three-phase or split-phase power and parallel operation. The multifunctional Quattro inverter/charger is a powerful DC-AC inverter with a pure sine wave output voltage, a sophisticated adaptive battery charger and an ultra-fast bypass loop switch. The inverter is housed in an aluminum compact housing. Two AC inputs The Quattro is equipped with two independent AC inputs (the main difference compared to the MultiPlus series) as mains and generator or two generators. The device is able to automatically connect to the source that is currently available when needed. Two AC outputs The Quattro is equipped with two AC outputs as standard. The main output is equipped with a function that ensures uninterrupted power supply. The Quattro takes over the power supply to the connected appliances in the event of a mains or generator failure. This happens so quickly (less than 20 ms) that computers and other electronic devices will continue to operate without interruption. The second output is only energized when AC is available at one of the Quattro inputs. Loads that would quickly discharge the batteries, such as a water heater, air conditioner, electric oven, can be connected to this output. Three-phase operation Three units of the same model can be assembled into a three-phase output. But that's not all: up to 10 three-phase arrays (30 units in total) can be connected in parallel to provide an output power of up to 270 kW (300 kVA) with a battery charging capacity of up to 4,000 A. PowerControl - AC source overload limitation The Quattro is a very powerful battery charger. It is capable of drawing a large amount of current from the generator or the mains (up to 16 A for each 48/5000/70 model unit operating at 230 V on the AC side). A maximum power draw limit can be set on each AC input to prevent overloading the AC source. Unique PowerAssist features Take PowerControl to the next level. It prevents overloading of the power-limited AC source. If the source is overloaded, the battery charging current is automatically reduced first. Secondly, the output power of the connected generator or local power supply (e.g. current-limited electrical connection) is boosted by the power drawn from the batteries. Solar energy: Alternating current (AC) is available even in the event of a mains failure. The Quattro can be used to advantage in off-grid systems with solar panels or other alternative energy sources. Setting up the system has never been easier! Immediately after installation, the device is ready to perform its function. If the settings need to be changed, this can be done very easily using the built-in DIP switches in a matter of minutes. Even parallel connection of the units can be done using the DIP switches, no computer is needed for this! Alternatively, the settings can be made using the VE.net control panel or sophisticated software (VE.Bus Quick Configure and VE.bus System Configurator), which offers further extended setting options. Four-stage adaptive charger charging with two battery charging outputs The main output provides powerful battery charging via the "adaptive charging" system. The software controls the three-stage automatic charging process to suit the condition and type of battery, and adds a fourth stage of trickle charging. In addition, the Quattro allows charging a second auxiliary battery using an independent charging output intended for, for example, a generator starter battery (12 and 24 V models only). The PC communication interface MK2-USB is used to set parameters and to display the current status of the unit. BASIC SPECIFICATIONS Inverter Input voltage: DC 48 V (38-66 V) Power (at 25 °C): 15000 VA / 12000 W Output voltage: AC 230 V (50/60 Hz) Transfer capacity: 2x 100 A Weight: 72 kg Dimensions: 572 x 488 x 344 mm Charger Charging current: 200 A Input voltage: AC 187-265 V (45-65 Hz) Output voltage (absorption/suspension/storage): DC 57.6 / 55.2 / 52.8 V Software and further information can be found at this link: https://www.victronenergy.cz/inverters-chargers/quattro
