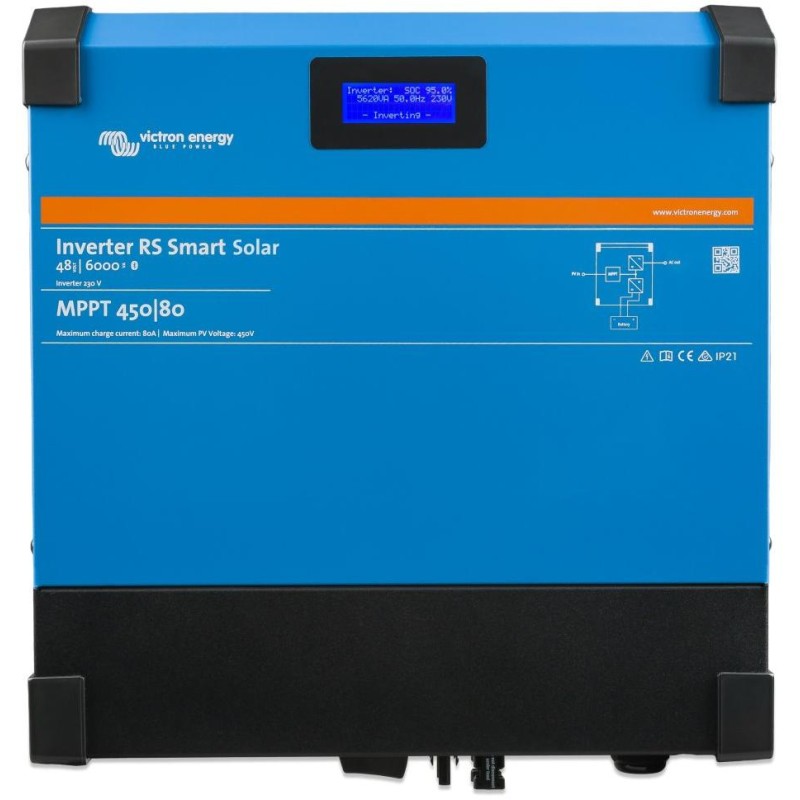

Victron SmartSolar RS 48/6000 230 V
RS Smart Solar is a combination of a powerful voltage converter (48 VDC, 6 kVA, 230 VAC) and a high-voltage MPPT solar controller 450 V (80 A) suitable for island systems (without AC input for the distribution network or generator).
Wide MPPT voltage range
DC 80 to 450 V - The starting voltage of photovoltaics is DC 120 V.
Lightweight, efficient and quiet
Thanks to its modern design and high-frequency technology, the inverter weighs only 11 kg and has excellent efficiency, low self-consumption and very quiet operation.
Display and Bluetooth Smart
The inverter is equipped with a display for visualizing battery, inverter and solar controller data. These parameters can also be read via Bluetooth using the Victron Connect app. In addition, the inverter can be connected to a GX device for system monitoring via the VE.Direct and VE.Can ports.
Built-in PV isolator
Both parallel PV strings connected to MC4 connectors can be safely isolated with a large built-in switch on the bottom of the unit.
BASIC SPECIFICATIONS
Input DC voltage range: 38-64 V
Inverter output voltage: 230 V (50 Hz, can be set to 60 Hz)
Power (at 25°C): increases linearly from 4800 W at 46 VDC to 5300 W at 52 VDC
Power (at 40 °C): 4500 W
Power (at 65 °C): 3000 W
Maximum photovoltaic power: 4000 W
MPPT operating voltage range: 80-450V
Charging voltage (absorption): 57.6 V
Charging voltage (float): 55.2 V
Efficiency (max.): 96.5%
Protection: IP21
Weight: 11 kg
Dimensions: 440 x 425 x 125 mm
VictronConnect app:
VictronConnect app for Android mobile devices
VictronConnect app for iOS mobile devices
VictronConnect app for Mac devices
The application is also available for download on the Victron Energy manufacturer's website (Mac/Windows/Linux/iOS/Android):
https://www.victronenergy.com/support-and-downloads/software#victronconnect-app
