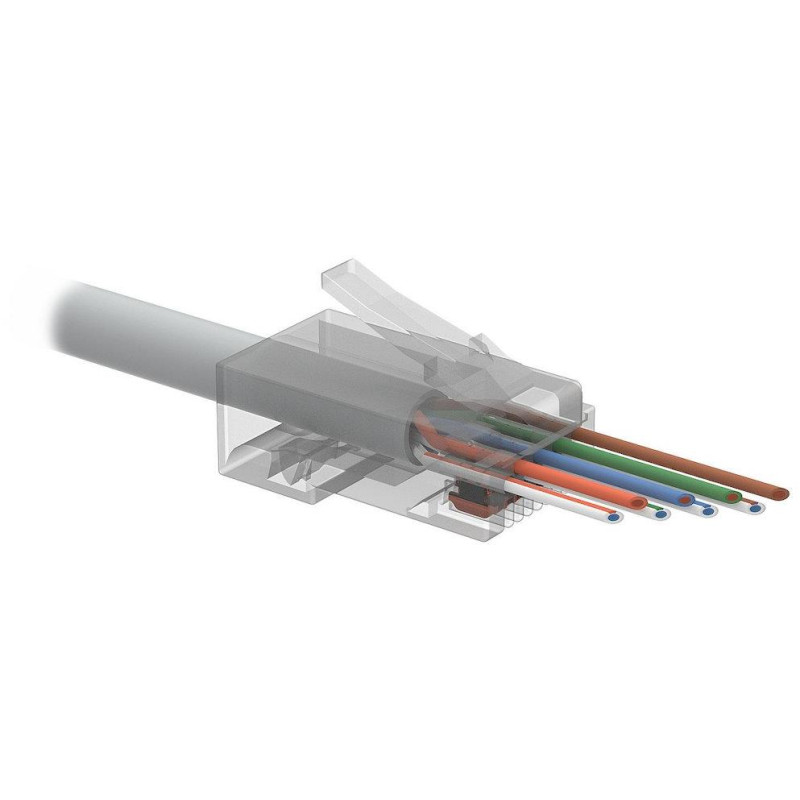

Solarix Universal EASY connector RJ45 CAT6 UTP 8p8c for wire and cable SXRJ45-6-UTP-EASY

Universal unshielded RJ-45 Cat6 connector with a pass-through design for easy installation.

Solarix SXRJ45-6-UTP-EASY connectors represent a professional solution for quick and reliable termination of unshielded UTP cables of category 6. Thanks to their universal design, they allow use for both stranded and stranded conductors.

These connectors feature a pass-through design that allows wires to be pulled through the entire connector, making installation significantly easier and faster. They are ideal for terminating cables with a total conductor diameter of up to 1.1 mm (including PE insulation). The connector contacts are covered with a 50 µ layer of gold to ensure excellent conductivity and long-term connection reliability.

Through-hole construction for flawless installation

The through-hole design allows you to see all the wires running through the connector, making it easy to check the correct order before crimping, significantly reducing the risk of installation errors.

Universal solution for all types of wires

Unlike conventional connectors that are designed for either wire or stranded wire, the SXRJ45-6-UTP-EASY connectors work reliably with both types of conductors. This versatility provides flexibility in installations and eliminates the need to stock different types of connectors.

Optimal for professional installations

For best results, we recommend using HT-EASY crimping pliers, which automatically removes excess wire after crimping the connector, ensuring a professional look and functionality of the installation.

BASIC SPECIFICATIONS

Category: CAT6

Supported protocols: 2.5/5G Base-T and below

Connector type: RJ-45

Shielding: no

Conductor type: wire and stranded

Folded: no

Contact position assignment: 8p8c

Contact plating: 50 µ gold

Storage temperature: -40 to +70 °C

Operating temperature: -10 to +60 °C

Max. operating humidity: 93%
