Xtend Solarmi GridFree 1000M
The complete solar power plant GridFree 1000M includes the original Solarmi GTIL 1kW inverter with limiter and 2 solar panels . An easy way to combine your own electricity production with maintaining a connection to the grid. An ideal way to reduce electricity costs. Stop your electricity meter too!
The GridFree 1000M solar power station contains the latest technological advances while maintaining an affordable price for every household. The set includes a revolutionary SUN-1000G2H inverter, which integrates an MPPT controller and a consumption meter for regulating its own power. The power station is used to directly generate electricity from solar panels, which is distributed to your (not only) household via a microinverter.

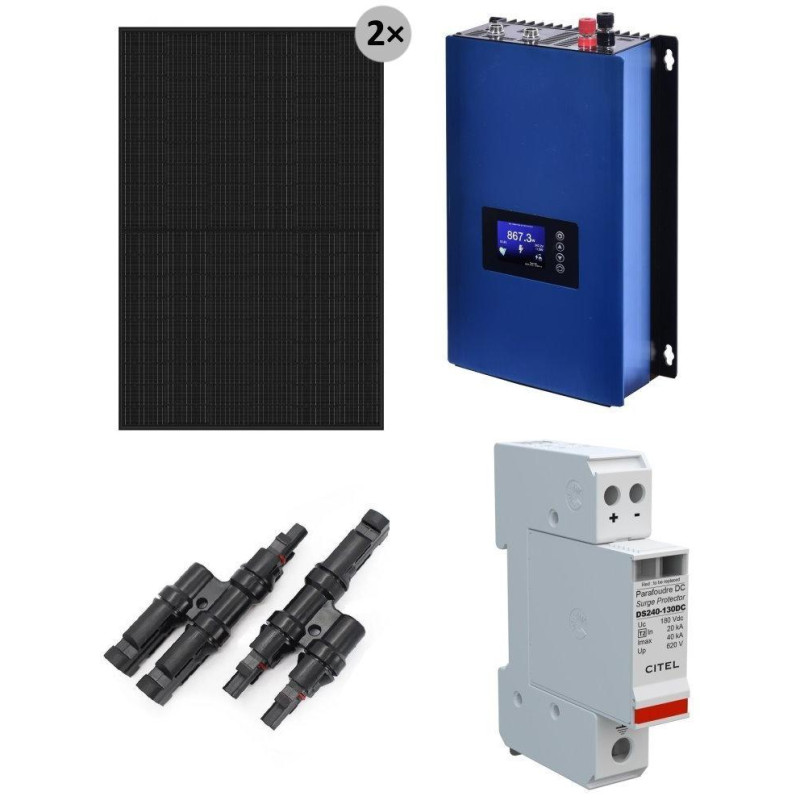

The set includes:
1× Solarmi GridFree GTIL 1kW inverter 230 V with limiter SUN-1000G2H (input 45–90 V)
2× Solarmi solar panel ELERIX Mono 480 Wp black
1× Solarmi DS240S-130DC surge arrester 180Vdc, 50A, CE
1× Solarmi MC4 T-split connector 1 to 2 (Male + Female set)
The GridFree inverter with limiter is a revolutionary solution for grid-connected photovoltaic power plants , which works similarly to other GridFree microinverters, but can also limit its own power according to current consumption, thus completely preventing overflows into the public grid.
These inverters are designed for indoor use . In addition to the classic terminals for connecting solar panels or batteries and an output for connecting to the grid, the inverter also has a current probe connector for the internal limiter.
On the inverter's clear display you can monitor:
- Current inverter output from solar panels/batteries
- Power supplied from the grid
- DC input voltage
- Inverter temperature
- Mains voltage
- Date and time
- Daily production schedule
- Inverter settings.
There are also specific settings available for powering the inverter from batteries, instead of solar panels, i.e. the operating input voltage (lower limit) and the maximum inverter power delivered.
The GridFree inverter operates in the input voltage range of DC 45–90 V and its power is 900 W (peak 1000 W) . The output from the inverter is then AC 230 V , which is connected between the main circuit breaker with the electricity meter and the circuit breakers of the individual circuits. The inverter therefore transfers the power from the panels (or suitable batteries) to the home distribution. Your appliances will then consume energy produced primarily from your power plant. If the power of your power plant is not enough at a given moment, the connected public network will cover the shortfall. By installing a current probe to the limiter , you will protect your system against unwanted overflows in the event that your power plant is capable of producing more energy than your appliances require.
The inverter does not operate in island mode, i.e. it requires a connection to the public distribution network for its function. As soon as a power failure occurs, the inverter switches off immediately.
The inverters are certified for sale and use in the EU. They meet the criteria of EMC, LVD, RoHS certifications. The inverters comply with the EN50549-1 standard.
Very effective asA great solution for independent electricity production while maintaining connection to the distribution network. An ideal way to reduce electricity costs. Slow down your electricity meter too!
Connecting the inverter to the solar system (without battery):
Connecting the inverter to a solar system (with battery):
For more information about connecting to the battery, please contact technical support .
The supplied panel assembly is connected in series-parallel according to the following figure. After connecting the individual pairs of panels, we recommend connecting the branches in the installation box due to the current load of the connectors and cables (40A). We recommend equipping the inverter input with disconnecting fuses, see
installation manual .
Depending on the specific installation requirements, the kit can be supplemented with suitable additional accessories such as connection cables and solar panel holders . You can easily find out which components of the solar panel mounting system you need in this calculator .
Further information on GridFree solar power plants:
https://www.i4wifi.cz/GridFree or technical support
The elements of the system can be drawn from the Nová Zelená Úsporám program and others.
For proper installation and operation, read the manuals for individual components of the system.
BASIC SPECIFICATIONS
Solar panel
Panel type: monocrystalline
Number of articles: 120 [2× (10× 6)]
Max. power (P max ): 480 W
Rated voltage (V mp ): 36 V
Rated current (I mp ): 13.6 A
Dimensions: 1910 × 1134 × 30 mm
Color: black
SVT subsidy code: SVT35222
Voltage converter
Continuous power: 900 W (1000 W peak)
Input voltage: DC 45-90V
Output voltage: AC 230V (50Hz)
Dimensions: 322 × 196 × 88 mm
Weight: 3.6 kg
Color: blue - black
