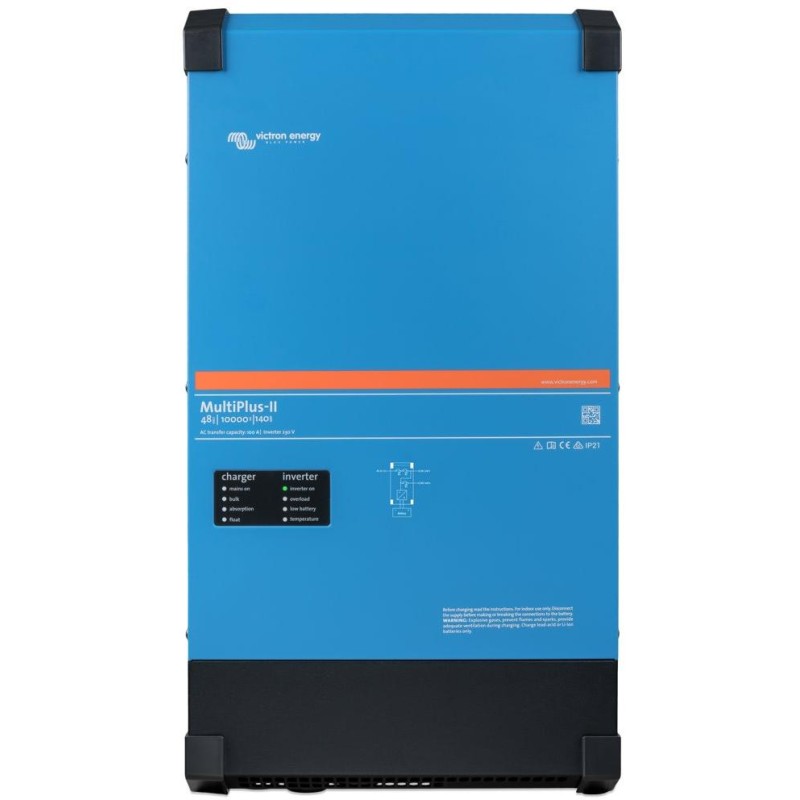

Victron MultiPlus-II hybrid inverter 48V/10000VA/140-100/100 230V

Victron MultiPlus-II 48V/10000VA/140-100A NOTE: MuptiPlus II 8,10 and 15kVA units cannot be connected in parallel. MultiPlus-II is a powerful DC-AC hybrid inverter/charger with a pure sine wave output, integrated adaptive battery charger and ultra-fast transfer switch of the power source - battery/source (external AC). MultiPlus-II combines the functions of MultiPlus and MultiGrid It has all the functions of the MultiPlus unit and in addition with the possibility of connecting an external current sensor for the PowerControl and PowerAssist functions with optimization of self-consumption. It also has all the functions of the MultiGrid unit with built-in anti-islanding protection on its AC input - reinforced protection against unwanted supplies to the distribution network in the event of a power outage. ESS (Energy Storage System): The MultiPlus-II is a key element in the Victron ESS system, providing flexibility for combination with solar MPPT controllers or grid-tied PV inverters. One AC input The MultiPlus-II is equipped with one AC input for connection to the distribution grid or e.g. a generator. If two AC inputs are required, then we choose the Quattro unit. Two AC outputs The MultiPlus-II is equipped with two AC outputs. The main output AC1 ensures power supply without interruption of the power supply. For example, in UPS mode the MultiPlus-II will take over the power supply to the connected appliances (in less than 20 ms) in the event of a grid or generator failure. The second AC output is only functional when the AC input (distribution grid/generator) is available. A load that would quickly discharge the batteries, such as a water heater, can therefore be connected to this output and will be powered only by the AC source. Four-stage charging with an adaptive charger with two battery charging outputs The main DC output provides powerful full-scale charging of batteries through the "adaptive charging" system. The software controls the three-stage automatic charging process to suit the battery condition and adds a fourth charging stage - maintenance charging. The MultiPlus-II is designed to charge all types of lead, alkaline and lithium batteries. Three-phase operation Three units of the same type can be configured for three-phase operation with phase shift. The unique features of the PowerControl and PowerAssist functions of the MultiPlus-II prevent overloading of a power-limited AC source, e.g. a current-limited electrical connection or a generator. If a large load should overload the input AC source, the charging current to the battery will be automatically reduced in the first step (PowerControl). The energy for charging is transferred to power the AC appliances. In the second step, the input AC source is strengthened with current taken from the battery (PowerAssist). The AC output receives energy from the AC source and the battery (inverter) together. Solar energy AC current can be available even in the event of a power outage. MuliPlus-II can be used both in off-grid (island) systems and in photovoltaic systems permanently connected to the distribution grid. MultiPlus-II is not equipped with an input for PV arrays, but is intended to work with MPPT controllers (DC coupling systems) or grid inverters (AC coupling systems) located on the AC input and/or AC output. More here in the ESS description. System configuration - In the case of a simple, for example, UPS installation, the settings can be easily made in a few minutes using the DIP switches on the MultiPlus-II or the VE.Configure 3 software and a PC. - Three-phase applications can be configured using the VE.Bus Quick Configure software (up to three units) or more complex systems using the VE.Bus System Configurator software (over three units) and a PC. - Off-grid and hybrid PV installations to support self-consumption and greater energy independence, which includes grid-connected inverters and/or solar MPPT chargers, can be configured using the VE.Configure 3 software using the appropriate wizards (specialized functions for specific applications). - The MultiPlus-II has several programmable relays and auxiliary contacts for a variety of additional functions. - The VE.Configure 3 basic software, as well as other configuration software, can be downloaded for free at www.victronenergy.com/support-and-downloads/software. - You will need the MK3-USB PC communication interface for this software. Remote monitoring and system configuration Monitor and control your system locally or remotely via the internet from anywhere in the world using the free VRM app and the free VRM portal: https://vrm.victronenergy.com/landingpage Access can be from a phone, tablet, laptop or PC (various operating systems). For remote access you need one of the following control panels and then you have the possibility of monitoring and configuring the system from anywhere in the world: Color Control GX, Venus GX, Cerbo GX In combination with Cerbo GX, ColorControl GX or VEnus GX it provides the calculation of the battery state of charge in percentage (SOC). MultiPlus-II offers many operating variants and is able to offer solutions to a variety of user requirements. BASIC SPECIFICATIONS Inverter Input voltage: DC 38–66 V Power (at 25 °C): 10,000 VA / 8,000 W Output voltage: AC 230 V (50/60 Hz) Transfer capacity: 100 A Weight: 49 kg Dimensions: 677 × 363 × 206 mm Charger Input voltage: AC 187–265 V (45–65 Hz) Output voltage (absorption/float/storage): DC 57.6 / 55.2 / 52.8 V Battery charging current (max.): 140 A Most common operating modes:
