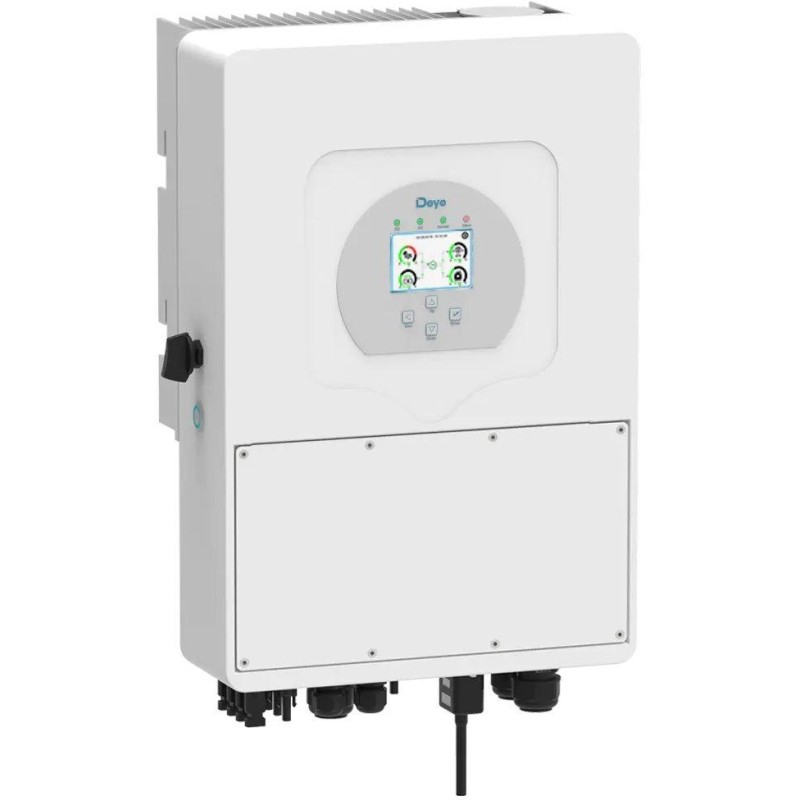

Xtend Solarmi SUN-25K-SG01HP3-EU-AM2
Multifunctional 3-phase asymmetric (100%) hybrid inverter/converter from the manufacturer DEYE with a high-voltage battery, which combines the functions of an inverter, solar charger and battery charger . It offers uninterrupted power support with the possibility of regulation. A comprehensive LCD display provides user-configurable and easily accessible control (battery charging, AC/solar charging, permissible input voltage depending on various applications, etc.). It is equipped with an RS-485/CAN port for communication and management. The inverter allows connection to the system, including "smart control" , and at the same time connection to the system of sharing the generated energy .
- This series supports a 1.3 DC/AC ratio
- Intelligent and flexible system - CAN, BMS, RS-485, Wi-Fi
- Remote shutdown function
- Intelligent air cooling
- Intelligent monitoring platform - setup, FW update, facilitating operation and maintenance of photovoltaic power plant
- Protection class IP65
BASIC SPECIFICATIONS
Charger (battery)
Battery type: lead-acid, lithium-ion battery, LiFePO4
Battery voltage range: 160-700V
Max charging current: 50 A
Max. discharge current: 50 A
Charging process: 3 stages / equalization
External temperature sensor: no
Charging system for Li-Ion (LiFePO4) batteries: customization using a BMS system
PV input (photovoltaics)
Max. DC input power: 32500 W
PV input voltage: 180-1000V
MPPT range: 150-850V
Rated DC input voltage: 700 V
Starting voltage: 180 V
PV input current: 26A + 26A
Max. PV ISC: 39 A + 39 A
Number of MPPTs: 2
Number of strings per MPPT: 2 + 2
Inverter (AC output)
Power (rated): 25000 W (max. 27500 W)
Power (peak): 1.5x rated, 10 seconds
Rated current: 37.9 A
Max. continuous AC current flow: 80 A
Output voltage: AC 220/380 V, AC 230/400 V (50/60 Hz), 3L/N/PE
Efficiency: 97.0% (MPPT 99%)
Protection: IP65
Dimensions: 638 × 408 × 237 mm
Weight: 30.5 kg
