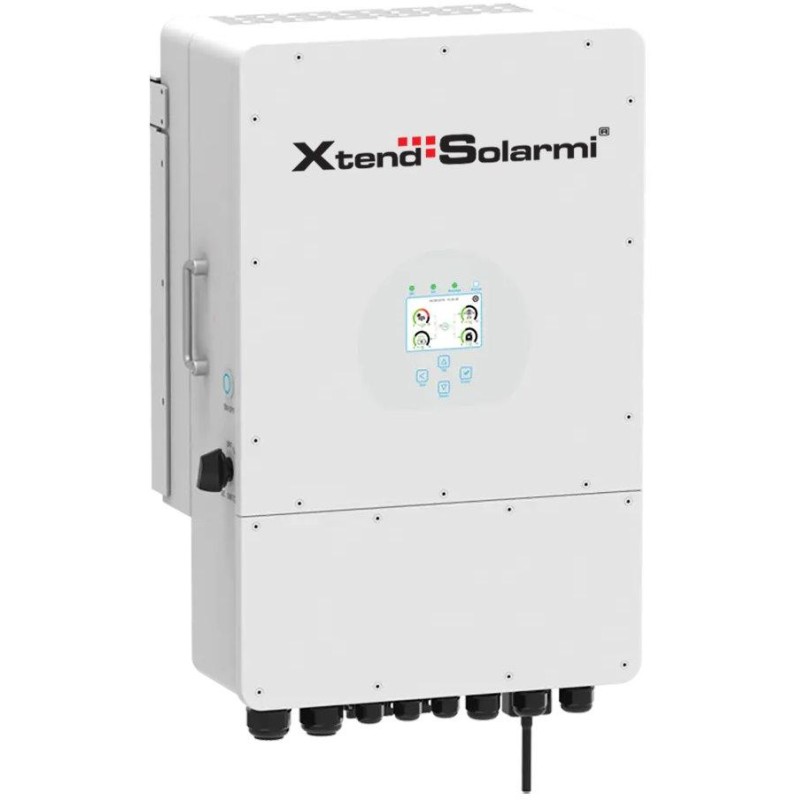

Xtend Solarmi SUN-10K-SG04LP3-EU
Multifunctional 3-phase asymmetric (150%) hybrid converter/inverter from the manufacturer DEYE , which combines the functions of a converter, solar charger and battery charger . It offers uninterrupted power support with the possibility of regulation. A comprehensive LCD display provides user-configurable and easily accessible control (battery charging, AC/solar charging, permissible input voltage depending on various applications, etc.). It is equipped with an RS-485/CAN port for communication and management. The converter provides additional information, statistics, graphs + the possibility of remote management via the supplied Wi-Fi dongle. The package includes probes for measuring consumption and a datalogger. The electricity meter is not included.
- This converter is listed in the list of approved converters for connection to the distribution system according to PPDS 2025. We will send a protocol on verification of compliance with RfG upon request.
- The inverter is suitable for use with LiFePO4 batteries .
- The inverter allows connection to the system, including "smart control" , and at the same time connection to the system of sharing the generated energy .
These inverters are equipped with a great SmartLoad function , which allows you to connect a 230V appliance only under certain conditions. To connect such an appliance, the GEN port is used, which can be changed in the settings from the generator port to a smartly switched appliance port.
So, for example, if the battery is 90% charged, the inverter turns on the GEN port and connects, for example, a boiler. After the battery capacity drops to the set level, it disconnects the appliance on the GEN port again. This way, surpluses can be effectively used to heat water in the boiler, swimming pool, etc.
Now with a 10-year warranty!
- Supports 3-phase unbalanced output 150%
- This series supports a 1.3 DC/AC ratio
- Intelligent and flexible system - CAN, BMS, RS-485, RS-232, DRM
- Remote shutdown function
- Intelligent monitoring platform - setup, FW update, facilitating operation and maintenance of photovoltaic power plant
- Unique Smart Load application and Grid peak shaving function
- Protection class IP65
Wiring diagram:
This device is in the list of products of the New Green Savings program (code: SVT30772, SVT32118)
BASIC SPECIFICATIONS
Charger (battery)
Battery type: lead-acid, lithium-ion battery, LiFePO4
Battery voltage range: 40-60V
Max charging current: 210 A
Max. discharge current: 210 A
Charging process: 3 stages / equalization
External temperature sensor: yes
Charging system for Li-Ion (LiFePO4) batteries: customization using a BMS system
PV input (photovoltaics)
Max. DC input power: 13000 W
PV input voltage: 550V (160-800V)
MPPT range: 200-650V
DC voltage range at full load: 350-650 V
Starting voltage: 160 V
PV input current: 26A + 13A
Max. PV ISC: 34 A + 17 A
Number of MPsPT: 2
Number of strings per MPPT: 2 + 1
Inverter (AC output)
Power (rated): 10000 W (max. 11000 W)
Power (peak): 2x rated, 10 seconds
Rated current: 15.2 A (max. 22.7 A)
Max. continuous AC current flow: 45 A
Output voltage: AC 220/380 V, AC 230/400 V (50/60 Hz), 3L/N/PE
Efficiency: 97% (MPPT 99.9%)
Protection: IP65
Dimensions: 700 x 422 x 279 mm
Weight: 33.6 kg
SVT subsidy code: SVT30772, SVT32118
