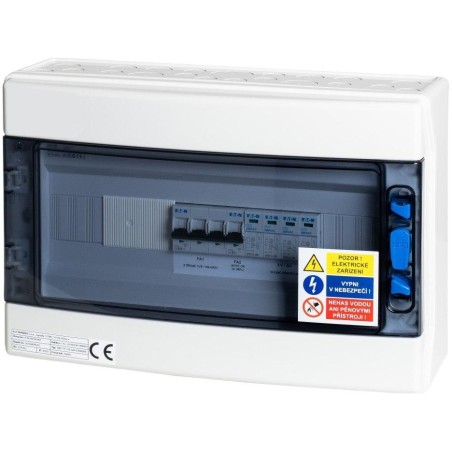

Xtend Solarmi AC40N0 fitted distribution board
AC distribution board designed for wall mounting, protection class II, IP65, serving as an input distribution board (at the inverter) for three-phase photovoltaic power plants (typical inverters: DEYE/Xtend Solarmi, GOODWE, SOLAX, GROWATT, WATTSONIC and others).
Its advantage is its small size, the ability to "stack" with other AC distribution boards next to or below each other, which makes it possible to install them even in areas where space is a problem.
The switchboard is equipped with an AC surge arrester T1+T2, a B40/3 circuit breaker for protecting the input to the inverter and a B2/1 circuit breaker that protects the Finder SOCKET/RELAY, which provides N0% to meet the distribution conditions (both NC and NO contact and center are included). This ensures use for all types of inverters on the market.
Suitable for combination with the R-FVE-DC2T1-IKA, R-FVE-DC3T1-IKA or up to R-FVE-DC9T1-IKA switchboard for the DC part of the installation and the R-FVE-A40-2 switchboard for backup circuits with a manual switch (inverter bypass), or the R-FVE-Z4 switchboard with a residual current device, sockets and fuses.
- Meets the standards/requirements according to ČSN EN IEC 61439-3 and 61439-1 edition 2
- Compact distribution board, indoor use, IP65, IKA series
- Including N/PE terminal block
- Professional design (ABS + polycarbonate door)
- 1 row, 18 modules, DIN rails
- Rated voltage 415 V AC & Rated insulation voltage 1000 V AC / 1500 V DC
Component list:
1× Surface-mounted distribution board IP65, transparent door, 1 row, 18 modules (EATON IKA-1/18-ST)
1× Surge arrester class T1+T2 (B+C), 4-pole set for TN-S (EATON SPBT12-280/4)
1× Circuit breaker PL6, char B, 1-pole, Icn=6kA, In=2A (EATON PL6-B2/1)
1× Relay + Socket N0% (NC, NO, CENTER) (FINDER RELAY 2P/8A 230AC + SOCKET 40/41/44/99.01)
1× Circuit breaker PL6, char B, 3-pole, Icn=6kA, In=40A (EATON PL6-B40/3)
BASIC SPECIFICATIONS
Intended use: for photovoltaics
Fitted: yes
Material: plastic
Weight: 3 kg
Dimensions: 418 × 286 × 148 mm
