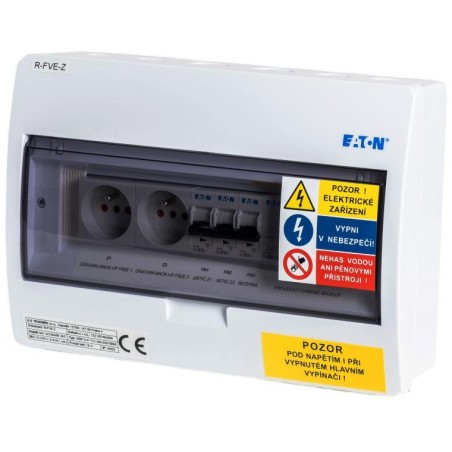

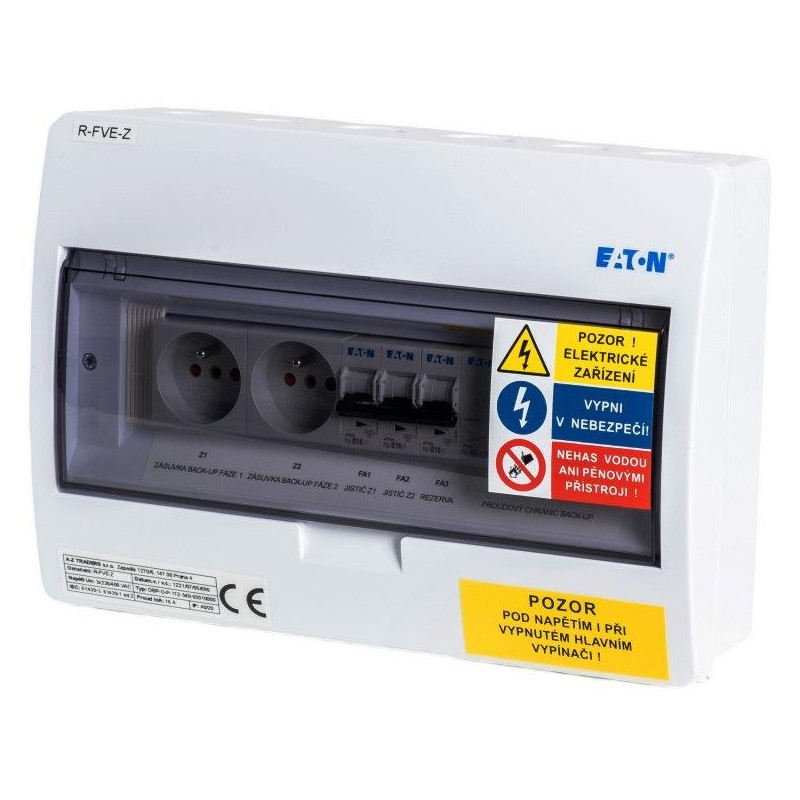

Xtend Solarmi ACZ3 fitted distribution board
AC distribution board designed for wall mounting, protection class II, IP40/20, used to operate a three-phase photovoltaic power plant (typically DEYE/Xtend Solarmi, Goodwe 4 to 10K-ET inverters). Ideal where it is not possible to use selected circuits for backup in the existing distribution board, but only sockets and a backup circuit breaker for selected appliances can be used.
Its advantage is its compact size and the ability to easily stack with other AC cabinets side by side or one under the other. This allows installation even in areas with limited space.
The switchboard is equipped with a B16/1 circuit breaker for protecting two sockets and one reserve for a separate appliance from the inverter backup, and a type A residual current device.
Suitable for combination with the R-FVE-DC1, R-FVE-DC2 switchboard for the DC part of the installation and the R-FVE-M4 switchboard, which is intended for the inverter input.
- Meets the standards/requirements according to ČSN EN IEC 61439-3 and 61439-1 edition 2
- White plastic distribution box + smoked organic glass plastic door
- Protection level IP40 & Mechanical resistance IK05
- Including N/PE terminal block
- 1 row, 12 modules, DIN rails
- Rated voltage 400 V AC & Rated insulation voltage 400 V AC
Component list:
1× Surface-mounted distribution board, transparent plastic door, 1 row, 12 modules
1× Circuit breaker PL6, char B, 1-pole, Icn = 6 kA, In = 16 A
1× Protector Ir = 250 A, type A, 4-pole, I dn = 0.03 A, In = 40 A
2× DIN rail socket with shutters and pin
BASIC SPECIFICATIONS
Intended use: for photovoltaics
Fitted: yes
Material: plastic
Weight: 1.9 kg
Dimensions: 303 × 212 × 98 mm
