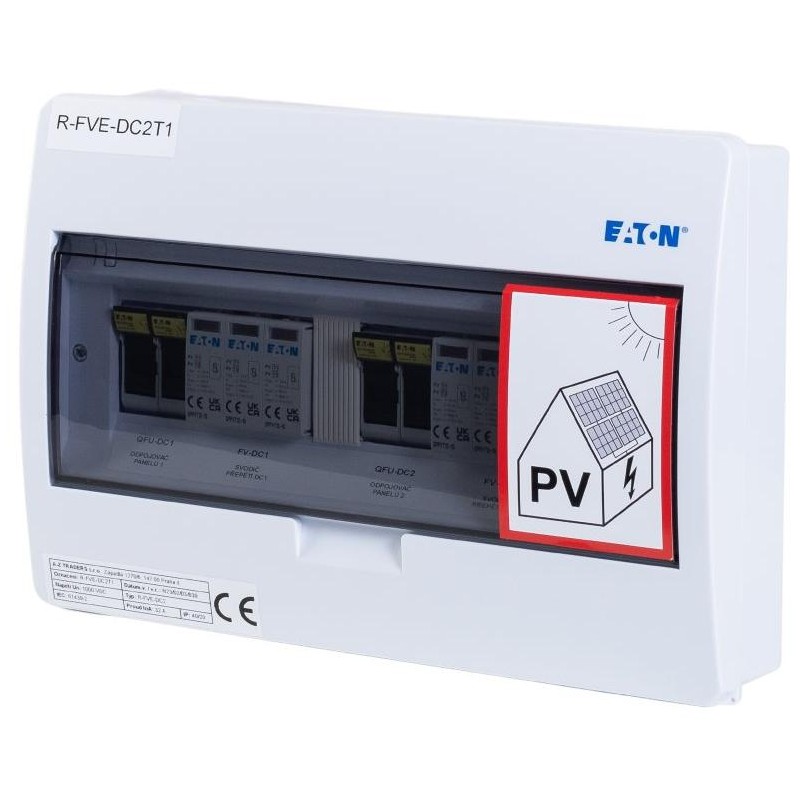

Xtend Solarmi DC23 fitted distribution board
DC distribution board designed for wall mounting, protection class I+II , IP40/20, serving as an input distribution board from photovoltaic panels (to the inverter) for the entire portfolio of photovoltaic power plants.
Its advantage is its compact size and the ability to easily stack with other cabinets side by side or one under the other. This allows installation even in areas with limited space.
- Meets the standard/requirements according to ČSN EN IEC 61439-2 ed. 3:21
- White plastic distribution box, rear cover part of the distribution box + plastic door made of smoked organic glass
- Protection class IP40/20 & Mechanical resistance IK05
- Protection class I+II (fully insulated)
- Including N/PE terminal block
- 1 row, 12 modules, DIN rail
- Rated voltage 400 V AC & Rated insulation voltage 400 V AC
The switchboard is equipped with a DC surge arrester with fuse disconnectors including gPV fuses to protect the DC input to the inverter.
Component list:
1× Surface-mounted distribution board, transparent plastic door, 1 row, 12 modules
2× Surge arrester T1+T2 (I+II, B+C), photovoltaic applications 1000 V DC, max. short-circuit current 1000 A
4× Ultra-fast cylindrical fuse for photovoltaics, (UL standard), 10 × 38 mm, 1100 V DC, 15 A
2× Fuse disconnector, photovoltaic applications, 2-pole, 1000 V AC / 30 A, C10 (10 × 38 mm)
BASIC SPECIFICATIONS
Intended use: for photovoltaics
Equipped: yes
Material: plastic
Dimensions: 303 × 212 × 98 mm
