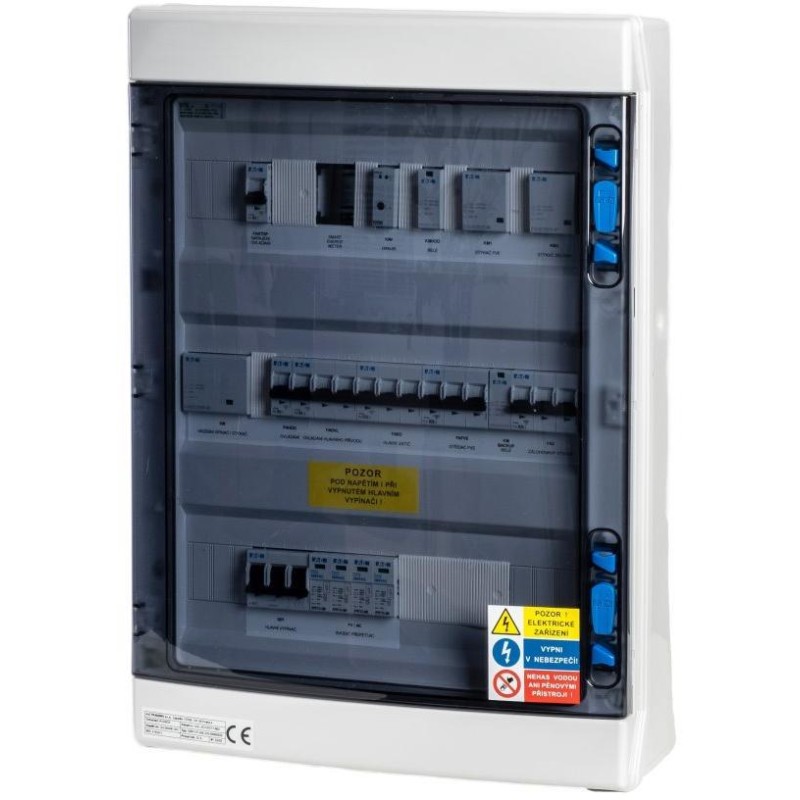

Xtend Solarmi AC40 fitted distribution board
AC switchboard designed for wall mounting, protection class I+II, IP65, used to operate a three-phase photovoltaic power plant (typically DEYE/Xtend Solarmi, Goodwe 4 to 10K-ET inverters and others).
Its advantage is the automatic switching between standard grid operation and backup. It is necessary to control the load during a power outage to avoid overload, as its function switches the entire house to the inverter backup.
The undisputed advantage is the minimal intervention in the customer's switchboard - Smartmeter (inverter measurement), the common breakdown point and all fuses are part of this switchboard. So, it is enough to make a loop between the main switchboard and the location of the technology.
The switchboard also includes a crisis disconnection of the HDO inverter (N0%) and preparation for the installation of a FIRE-SAFETY solution. The GW40 type is designed for a 40 A main circuit breaker in the column.
There is a slight time delay when switching (contactor switching). This is not a fail-safe backup solution.
- Meets the standards/requirements according to ČSN EN IEC 61439-3 and 61439-1 edition 2
- Compact distribution board, indoor use, IP65, IKA series
- Including N/PE terminal block
- Professional design (ABS + polycarbonate door)
- 3 rows, 54 modules, DIN rails
Component list:
1× Surface-mounted distribution board IP65, transparent door, 3 rows, 54 modules
1× Surge arrester class T1+T2 (B+C), 4-pole set for TN-S
1× Main switch, 240 V, 40 A, 3HP
2× Circuit breaker PL6, characteristic B, 1-pole, Icn = 6 kA, In = 6 A
1× Voltage monitoring relay
2× Installation contactor, 230 V AC/50 Hz, 1S, 1R, 25 A
2× Installation contactor, 230 V AC/50 Hz, 4S, 25 A
1× Installation contactor, 230 V AC/50 Hz, 4S, 40 A
1× Circuit breaker PL6, characteristic B, 3-pole, Icn = 6 kA, In = 6 A
1× Circuit breaker PL6, characteristic B, 3-pole, Icn = 6 kA, In = 40 A
2× Circuit breaker PL6, characteristic B, 3-pole, Icn = 6 kA, In = 20 A
BASIC SPECIFICATIONS
Intended use: for photovoltaics
Fitted: yes
Material: plastic
Weight: 8.4 kg
Dimensions: 586 × 418 × 148 mm
