Xtend Solarmi DC6 fitted distribution board
DC3 switchboard (T1+T2), house switchboard, PNS series.
DC distribution board designed for wall mounting, IP65/20 serving as an input distribution board from photovoltaic panels (to the inverter) for the entire portfolio of photovoltaic power plants.
Its advantage is its compact size and the ability to easily stack with other cabinets side by side or one under the other. This allows installation even in areas with limited space.
- Meets the standard/requirements according to ČSN EN IEC 61439-2 ed. 2
- Grey ABS distribution box, transparent polycarbonate plastic door, rear cover part of the distribution box
- Protection level IP65/20 & Mechanical resistance IK08
- Protection class II (fully insulated)
- Including N/PE terminal block
- 1 row, 18 modules, DIN rail
- Rated voltage 415 V AC & Rated insulation voltage 1000 V AC / 1500 V DC
The switchgear is equipped with a DC surge arrester with fuse disconnectors including gPV fuses to protect the DC input to the inverter.
Component list:

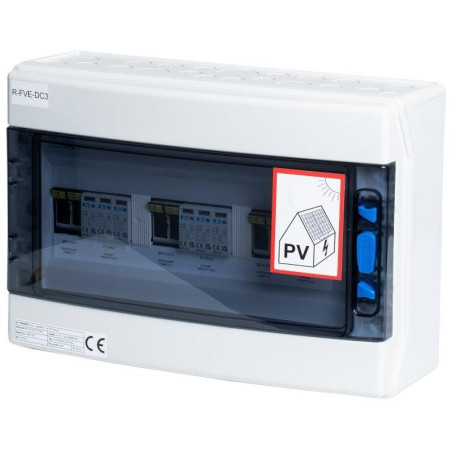

1× Surface-mounted distribution board IP65, transparent door, 1 row, 18 modules
3× Surge arrester T1+T2 (I+II, B+C), photovoltaic applications 1000 V DC, max. short-circuit current 1000 A
4× Ultra-fast cylindrical fuse for photovoltaics, (UL standard), 10 × 38 mm, DC 1100 V (15 A)
3× Fuse disconnector, photovoltaic applications, 2-pole, AC 1000 V, 30 A, 10 × 38 mm
BASIC SPECIFICATIONS
Intended use: for photovoltaics
Fitted: yes
Material: plastic
Dimensions: 418 × 286 × 148 mm
