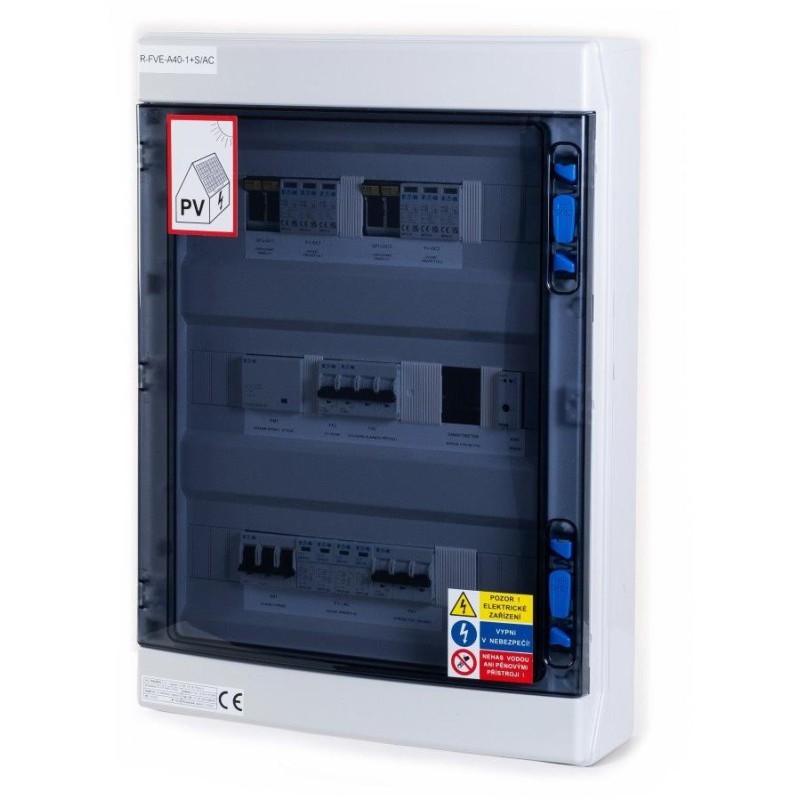

Xtend Solarmi DCAC40 fitted distribution board
DCAC40 switchboard (T1+T2), house switchboard, PNS series.
AC+DC switchboard designed for wall mounting, IP65, used to operate a three-phase photovoltaic power plant (typically DEYE/Xtend Solarmi, Goodwe, etc. inverters).
- Meets the standards/requirements according to ČSN EN 61439-3 and ČSN EN 61439-1 edition 2
- Grey ABS distribution box, transparent plastic door, rear cover part of the distribution box
- Protection level IP65 & Mechanical resistance IK08
- Protection class I+II (fully insulated)
- Including N/PE terminal block
- 3 rows, 54 modules, DIN rail
- Rated voltage 415 V AC & Rated insulation voltage 1000 V AC/ 1500 V DC
Component list:
1× Surface-mounted distribution board IP65, transparent door, 3 rows, 54 modules
1× Surge arrester class T1+T2 (B+C), 4-pole set for TN-S
1× Main switch, 240 V, 40 A, 3 HP
1× Voltage monitoring relay
1× Finder RELAY
1× Installation contactor, 230 V AC/50 Hz, 4S, 40 A
1× Circuit breaker PL6, characteristic B, 3-pole, Icn=6 kA, In=6 A
1× Circuit breaker PL6, characteristic B, 3-pole, Icn=6 kA, In=20 A
1× Circuit breaker PL6, char B, 1-pole, Icn=6 kA, In=2 A
2× Surge arrester T1+T2 (I+II, B+C), photovoltaic applications 1000 V DC, max. short-circuit current 1000 A
4× Ultra-fast cylindrical fuse for photovoltaics, (UL standard), 10 × 38 mm, 1100V DC, 15 A
2× Fuse disconnector, photovoltaic applications, 2-pole, 1000 V AC / 30 A, C10 (10 × 38 mm)
BASIC SPECIFICATIONS
Intended use: for photovoltaics
Fitted: yes
Material: plastic
Dimensions: 586 × 418 × 148 mm
