Solarmi VCX SF263 přepínač napájení, 1-0-2, 2P, 63A, na DIN lištu
  • Solarmi VCX SF263 přepínač napájení, 1-0-2, 2P, 63A, na DIN lištu
  • Solarmi VCX SF263 přepínač napájení, 1-0-2, 2P, 63A, na DIN lištu
  • Solarmi VCX SF263 přepínač napájení, 1-0-2, 2P, 63A, na DIN lištu
  • Solarmi VCX SF263 přepínač napájení, 1-0-2, 2P, 63A, na DIN lištu

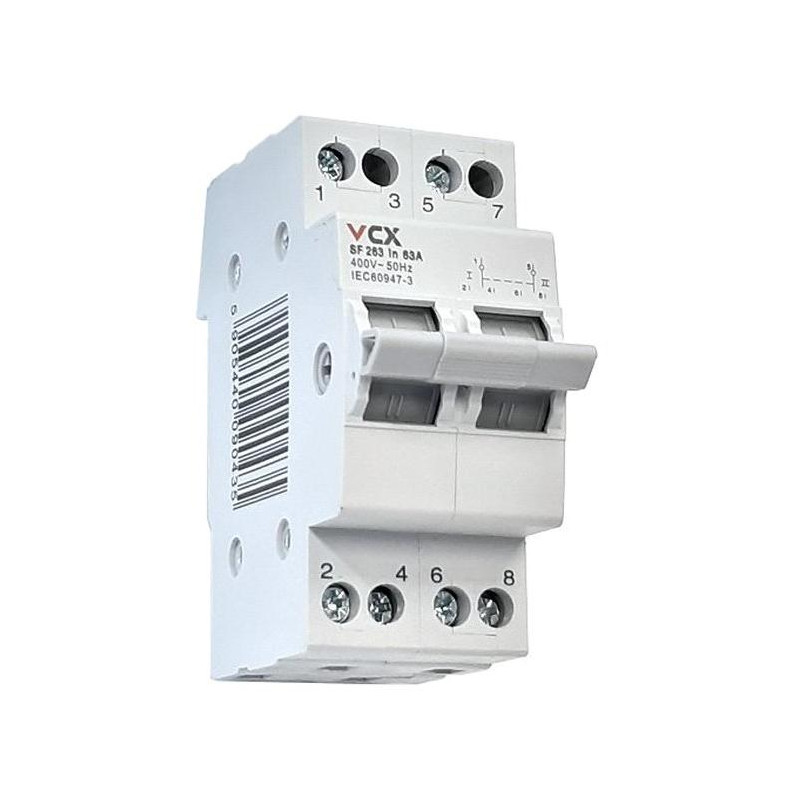

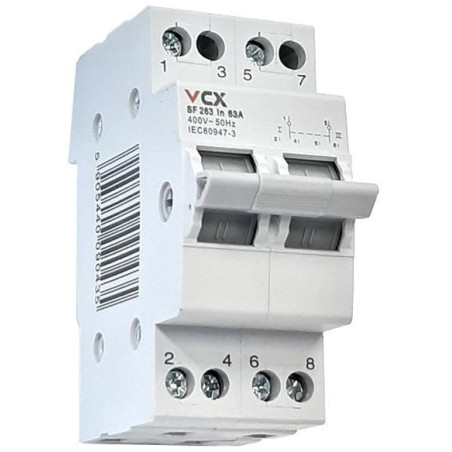

Solarmi VCX SF263 power switch, 1-0-2, 2P, 63A, DIN rail

SOPSMI0068
Grade
Write your review
Installation switch for selecting mains power and SF263 generator. 2-pole switch with rated current 63A, TH35 rail mounting, operating voltage 400V AC, IP20 protection. Allows switching to emergency power supply in case of mains failure.
€33.92
Tax included
€28.03 Tax excluded
i
The amount of VAT applied is 21% for the country Czechia.
To order
Quantity
Out of stock

Ask about the product on WhatsApp


Business terms and conditions



Delivery policy



Return policy

help_outlineProduct inquiry by email
Description


Solarmi VCX SF263







Installation switch for selecting mains power and generator with a rated current of 63 A.


The SF263 switch is used to switch between different types of power supply and allows you to switch to power from a generator or other emergency power source in the event of a mains power failure.


The device is designed for mounting on a standard TH35 rail and provides a reliable solution for automatic or manual switching of power sources in distribution cabinets.









  • 2-pole switch with a rated current of 63 A for reliable switching
  • Operating voltage 400 V AC at a frequency of 50 Hz with an insulation voltage of 690 V AC
  • Mounting on a standard TH35 rail with a width of only 36 mm (2 modules)
  • Operating temperature range -25°C to +55°C for universal use
  • High mechanical strength of 20,000 cycles and electrical strength of 10,000 cycles
  • Rated impulse voltage 6 kV for surge immunity
  • IP20 protection suitable for installation in control cabinets







Connecting wires
The switch allows the connection of conductors with a cross-section of 1–16 mm² in both stranded and solid versions. The terminals are designed for safe and reliable connection.


Certification and compliance
The product complies with the requirements of EU Directives 2014/35/EU for electrical equipment, 2017/30/EU for electromagnetic compatibility and 2015/863/EU regarding restricted substances.








BASIC SPECIFICATIONS


Number of poles: 2P

Rated current: 63 A

Operating voltage: 400 V AC, 50 Hz

Insulation voltage: 690 V AC

Rated impulse voltage: 6 kV

Wire cross-section: 1–16 mm²

Mounting: TH35 rail

Dimensions: width 36 mm (2 modules)

Working temperature: -25 to +55 °C

Mechanical strength: 20,000 cycles

Electrical strength: 10,000 cycles

Protection: IP20




Product Details
XTEND Solarmi
SOPSMI0068

Data sheet

Warranty period for registration number (months)
26
Manufacturer
Xtend Solarmi
Warranty length (months)
26
Processed
Approved
Dropshipment - Alza
Yes
Operating temperature min. (°C)
-25
Operating temperature max. (°C)
55
Rated voltage (V)
400 (AC)
Output voltage (V)
400 (AC)
Input voltage (V)
400 (AC)
Connector
Terminal block
Max input current (A)
63
Voltage frequency (Hz)
50
