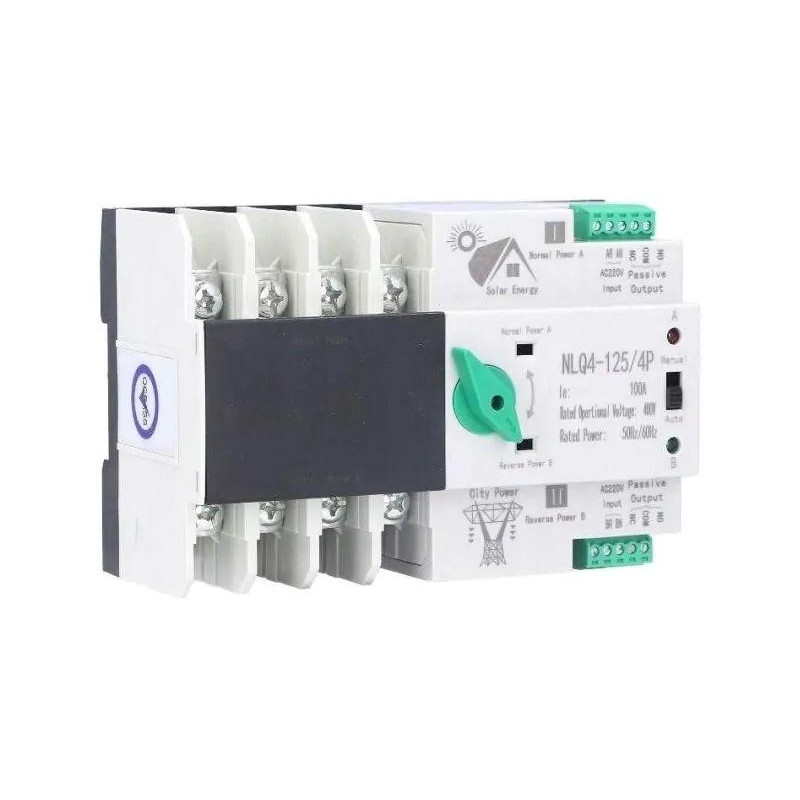

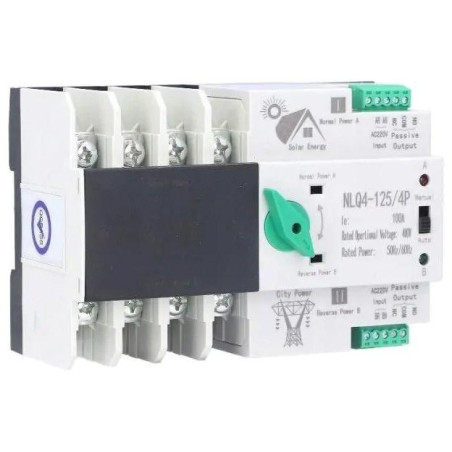

Solarmi NLQ4-125/4P, automatic network switch - power supply 4P 400V 63A for PV
  • Solarmi NLQ4-125/4P, automatic network switch - power supply 4P 400V 63A for PV

Solarmi NLQ4-125/4P, automatic network switch - power supply 4P 400V 63A for PV

SOPSMI0067
Grade
Write your review
Automatic network transfer switch with passive 4P power contacts and control contacts for controlling devices depending on the presence of mains voltage. Used for switching between energy sources or switching on appliances depending on energy availability.
€34.27
Tax included
€28.32 Tax excluded
i
The amount of VAT applied is 21% for the country Czechia.
To order
Quantity
Out of stock

Ask about the product on WhatsApp


Business terms and conditions



Delivery policy



Return policy

help_outlineProduct inquiry by email
Description


Xtend Solarmi NLQ4-125/4P







Automatic network switch with passive 4P power contacts and control contacts for controlling the device according to the presence of mains voltage.


The switch enables automatic switching between two energy sources or controlled switching of appliances depending on the availability of electrical energy. The device contains a control input A (control) and a support input B , and when there is voltage at input A, it automatically switches to position I (power A) , when there is a failure at input A and voltage at input B, it switches to position II (B) .


The power contacts can also be controlled manually using the slide switch in the "manual" position or in the absence of voltage at control input B. The device function is independent of the presence of voltage on the power contacts , which allows isolated use, for example, for switching DC voltages of 12–24V.









  • Rated operating current 63 A at 400 V and frequency 50–60 Hz
  • Fast switching time ≤ 30 ms for minimal power outage
  • 4 changeover contacts (4P) with insulation voltage 690 V AC
  • Automatic and manual control via slide switch
  • Possibility of using one non-galvanically isolated network for both inputs
  • Universal use for switching networks or controlling appliances
  • Compact dimensions 142 × 96 × 76 mm







Application as a network switch
It allows switching between two energy sources, for example between the public grid and a photovoltaic power plant, battery UPS or generator. The connection can also be done inversely - connect the public grid to input I (A) and the backup energy source to input II (B).


Controlled switching on of appliances
Ideal for automatically switching on selected appliances when electricity is available at input I (A), for example heating an accumulator tank, boiler, charging an electric car or pumps. When connecting a backup power source to the power contacts, the appliance can be switched to the backup power source.


Important notice
When used as a network switch, the voltage of both networks must be identical with a tolerance of ± 15%. For proper operation, it is necessary to have control voltage on both inputs A and B (AR,AN+BR,BN).








BASIC SPECIFICATIONS



Rated operating current: 63 A

Rated operating voltage: 400 V

Rated frequencyFrequency: 50–60 Hz

Switching time: ≤ 30 ms

Insulation voltage: 690 V AC

Number of poles: 4P (4× changeover contact)

Dimensions: 142 × 96 × 76 mm

Control: automatic + manual




Product Details
XTEND Solarmi
SOPSMI0067

Data sheet

Warranty period for registration number (months)
26
Manufacturer
Xtend Solarmi
Warranty length (months)
26
Processed
Approved
Weight (kg)
2.1
Dimensions
142 × 96 × 76mm
Dropshipment - Alza
Yes
Operating temperature min. (°C)
-5
Operating temperature max. (°C)
35
Rated voltage (V)
400 (AC)
Output voltage (V)
400 (AC)
Input voltage (V)
400 (AC)
Max output current (A)
63
Connector
Terminal block
Max input current (A)
63
Voltage frequency (Hz)
50 - 60
