Solarmi NLQ4-125/2P, automatický přepínač sítí - napájení 2P 230V 20A pro FVE
  • Solarmi NLQ4-125/2P, automatický přepínač sítí - napájení 2P 230V 20A pro FVE
  • Solarmi NLQ4-125/2P, automatický přepínač sítí - napájení 2P 230V 20A pro FVE
  • Solarmi NLQ4-125/2P, automatický přepínač sítí - napájení 2P 230V 20A pro FVE
  • Solarmi NLQ4-125/2P, automatický přepínač sítí - napájení 2P 230V 20A pro FVE
  • Solarmi NLQ4-125/2P, automatický přepínač sítí - napájení 2P 230V 20A pro FVE
  • Solarmi NLQ4-125/2P, automatický přepínač sítí - napájení 2P 230V 20A pro FVE
  • Solarmi NLQ4-125/2P, automatický přepínač sítí - napájení 2P 230V 20A pro FVE
  • Solarmi NLQ4-125/2P, automatický přepínač sítí - napájení 2P 230V 20A pro FVE

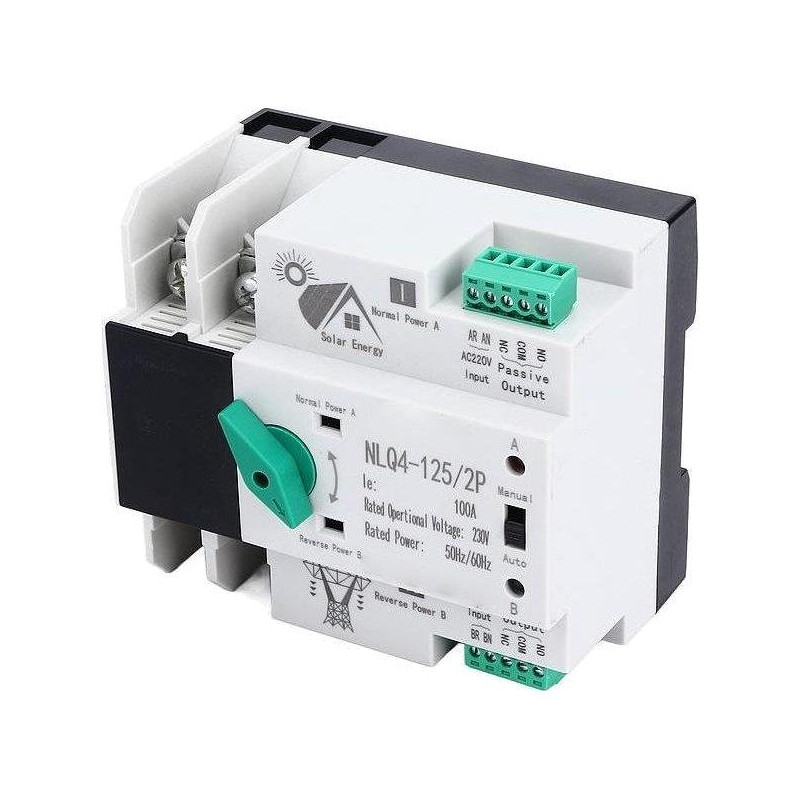

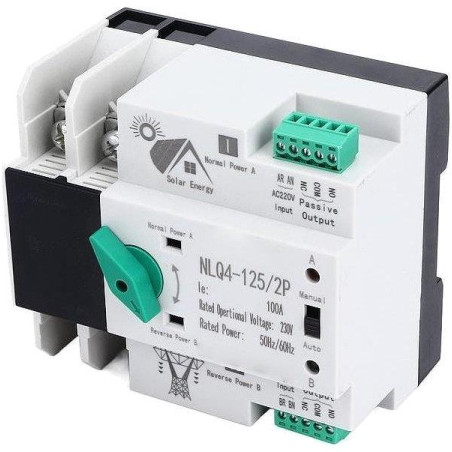

Solarmi NLQ4-125/2P, automatic network switch - power supply 2P 230V 20A for PV plants

SOPSMI0066
Grade
Write your review
Automatic network switch with 2P contacts for switching between two energy sources. Control voltage 230V, rated current 20A, switching time <30ms. Suitable for connecting backup sources or controlling appliances according to energy availability.
€31.04
Tax included
€25.65 Tax excluded
i
The amount of VAT applied is 21% for the country Czechia.
To order
Quantity
Out of stock

Ask about the product on WhatsApp


Business terms and conditions



Delivery policy



Return policy

help_outlineProduct inquiry by email
Description


Xtend Solarmi NLQ4-125/2P







Automatic network transfer switch with 2P passive power contacts for switching between two power sources depending on the presence of mains voltage.


The device contains control contacts for automatic control according to the availability of mains voltage and power contacts for switching loads up to 20 A at 230 V. The switch can be used to connect backup energy sources such as photovoltaic power plants, battery UPS systems or generators. Alternatively, it is used to automatically switch on various appliances according to the availability of energy from solar panels.


For correct automatic function , control voltage is required on both inputs A and B. Control input A determines the priority source, support input B provides energy for switching in case of main source failure. If voltage is unavailable on input B, the device can be controlled manually using a slide switch.









  • Automatic switching between two power sources with a switching time of less than 30 ms
  • Power contacts 2P (2× changeover contact) for rated current 20 A at 230 V
  • Control input A and auxiliary input B for control voltage 230 V at a frequency of 50–60 Hz
  • Manual control via slide switch when control voltage is unavailable
  • Insulation voltage 690 V AC for safe separation of control and power circuits
  • Universal use for switching AC and DC voltages 12–24 V independent of the control voltage
  • Compact dimensions of 107 × 96 × 76 mm for easy installation in distribution boards







Network switch function
It allows switching between the public grid and a backup energy source (photovoltaic power plant, battery UPS, generator). The connection can also be done inversely - connect the public grid to input A and the backup energy source to input B.


Controlling appliances based on energy availability
Automatically turns on selected appliances when electricity is available at input A. Suitable for heating storage tanks, boilers, charging electric cars or controlling pumps based on excess energy from photovoltaics.


Galvanic isolation of control circuits
One non-galvanically isolated network can be used to control inputs A + B, which allows input A to be controlled by an external device (e.g. a PV power plant battery monitor) while simultaneously powering contacts B from the same network.








BASIC SPECIFICATIONS



Rated operating current: 20 A

Rated operating voltage: 230 V

Rated frequency: 50-60 Hz

Switching time: < 30 ms

Insulation voltage: 690 V AC

Number of poles: 2P (2× changeover contact)

Dimensions: 107 × 96 × 76 mm

Voltage tolerance when used as a network switch: ± 15%




Product Details
XTEND Solarmi
SOPSMI0066

Data sheet

Warranty period for registration number (months)
26
Manufacturer
Xtend Solarmi
Warranty length (months)
26
Processed
Approved
Weight (kg)
0.62
Dimensions
107 × 96 × 76mm
Dropshipment - Alza
Yes
Operating temperature min. (°C)
-5
Operating temperature max. (°C)
35
Rated voltage (V)
230 (AC)
Output voltage (V)
230 (AC)
Input voltage (V)
230 (AC)
Max output current (A)
20
Connector
Terminal block
Max input current (A)
20
Voltage frequency (Hz)
50 - 60
