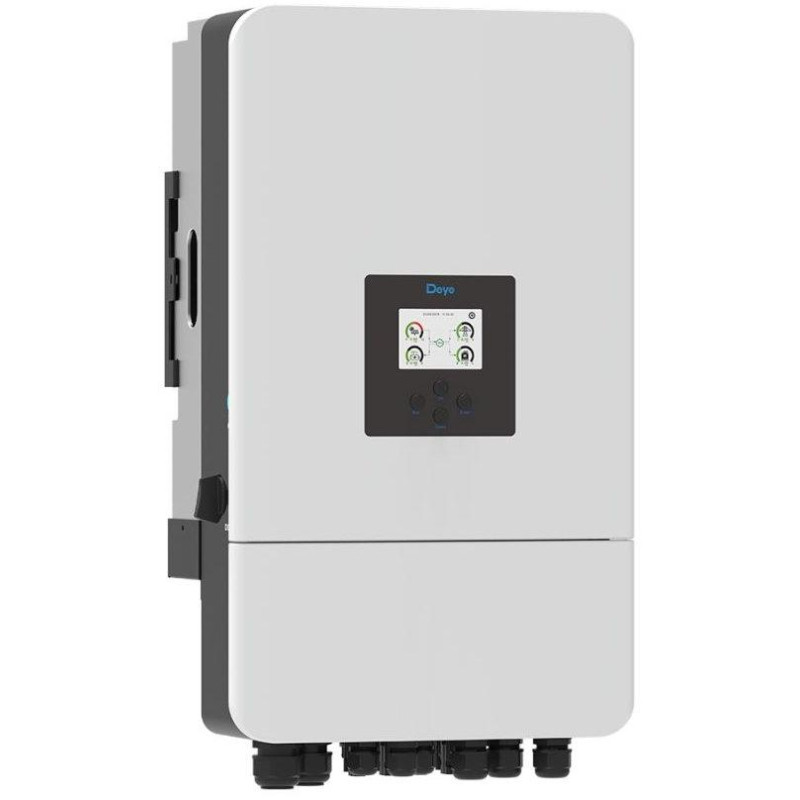

Solarmi Deye SUN-10K-SG05LP3-EU-SM2 hybrid 10kW inverter with limiter, three-phase 400V, 5th gen.

Powerful three-base hybrid inverter with integrated MPPT controller and battery storage support.

The 10 kW hybrid inverter is designed for advanced photovoltaic systems with the option of storing energy in batteries. It supports 48V low-voltage batteries with transformer isolation for maximum safety. The device allows charging batteries from both solar panels and the grid with a maximum current of 210A .

The inverter offers flexible operation in grid and island mode with the ability to parallel up to 10 units for increased performance. Advanced features include 6 time periods for battery charge and discharge control, support for diesel generator energy storage, and 100% unbalanced output with a maximum load of 50% of rated power on each phase.

Advanced battery system management
The inverter supports both lead-acid and lithium-ion batteries with automatic adaptation to the BMS system. It offers 6 independent time periods to optimize charging and discharging according to tariffs or household needs.

Flexible network connection
The device operates with a voltage of 220/380V or 230/400V at a frequency of 50/60Hz. It supports various network standards including IEC 61727, EN 50549 and other European standards for safe connection to the distribution network.

Intelligent monitoring
Built-in RS485/RS232/CAN communication interface enables remote monitoring via GPRS/WIFI/Bluetooth/4G/LAN. The system provides a complete overview of production, consumption and battery status.

BASIC SPECIFICATIONS

Rated power: 10000W AC

Maximum PV power: 16000W

Battery voltage: 40-60V (48V nominal)
/> Maximum charging current: 210A

Maximum discharge current: 210A

Mains voltage: 220/380V, 230/400V ±15%

Frequency: 50/45-55Hz, 60/55-65Hz

Efficiency: 97.6% (max.), 97.0% (euro)

Dimensions: 386 × 660 × 250 mm

Weight: 35.2 kg

Protection: IP65

Operating temperature: -40 to +60°C
