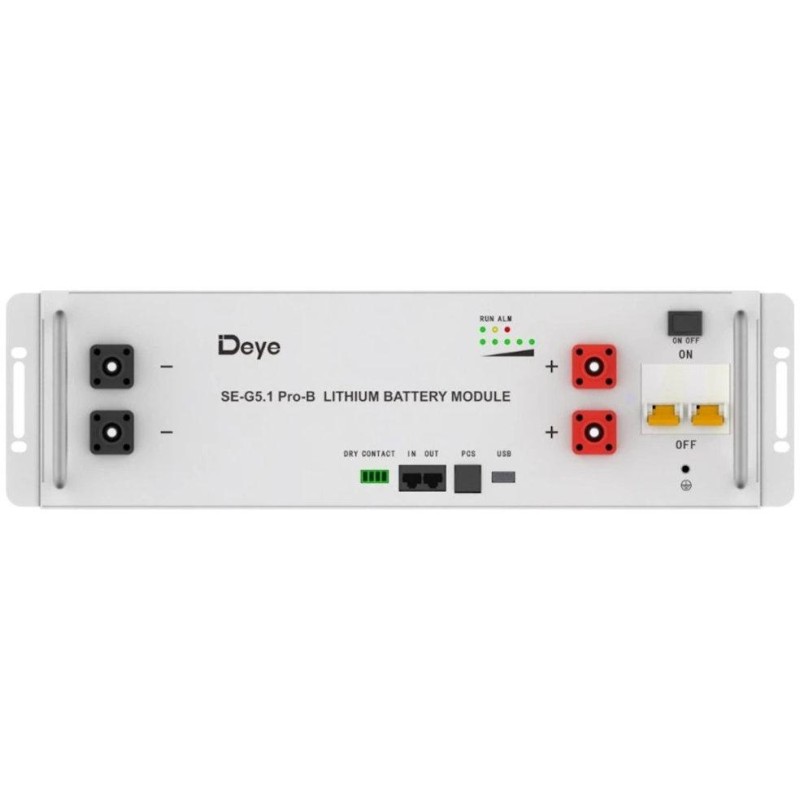

Solar storage Deye SE-G5.1 Pro-B, 51.2V/5.12 kWh, LV, rackmount

Xtend Solarmi Deye SE-G5.1 Pro-B

DEYE SE-G5.1 Pro-B is a 5.12 kWh LiFePO4 battery with long cycle life . It can be used to support reliable power supply for various types of equipment and systems. This series is especially suitable for applications with high power, limited installation space, limited load capacity and long cycle stroke. It has a built-in BMS (Battery Management System) that can manage and monitor cell information including voltage, current and temperature. The BMS also has the ability to balance cell charging and discharging, thereby extending the battery life.

•

• Intelligent BMS system that provides complete protection.

• Scalability - max. 64 units in parallel, max. capacity up to 327 kWh.

• Automatic connection of the battery module to the network, automatic IP addressing, remote monitoring and updates.

• Cycle life at 25°C (under standard charging and discharging conditions, charging 0.5C, discharging 0.5C): ≥ 6000

• CAN, RS485 communication support

• Certifications - UN38.3, UL1973, IEC62619, CE, CEI 0-21


BASIC SPECIFICATIONS

Capacity: 5.12 kWh (4.61 kWh - usable energy capacity)

Battery capacity: 100 Ah

Voltage range: 43.2-57.6V

Rated voltage: 51.2V

Charge/discharge current (nominal): 50/50 A

Charging/discharging current (max.): 100/100 A

Charge/discharge current (peak [2 minutes, 25 °C]): 150/150 A

Operating temperature: 0 to 55°C (charging), -20 to 55°C (discharging)

Protection degree: IP20

Weight: 45 kg

Dimensions: 540 × 440 × 133 mm

Package contents:

1× battery

1× 3U-LBCable150 (A pair of 150mm 4AWG power cable for the battery (both ends have waterproof terminals) and one 250mm RJ-45 communication cable for parallel battery connection.)

1× 3U-LPCable1500 (A pair of 1500mm 4AWG DC power cables (one end has a waterproof terminal, the other end is a M10 copper terminal) and one RJ-45 communication cable connects to the hybrid inverter.)

1× 10AWG yellow-green battery ground wire 300mm

4× M6*16 screw

2× seagull ears

6× M4*8 screw

4x battery stacking holder

2× wall mount

4× M6 screw for wall mount

1× user manual
