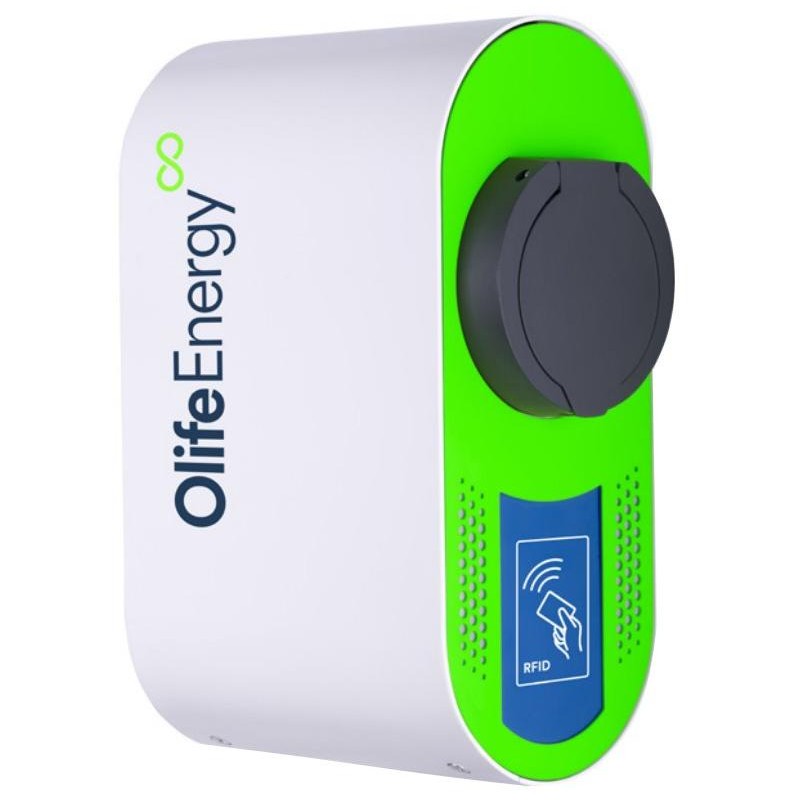

OlifeEnergy EV electric car charger PLUS AC 22kW, Wallbox, Type2, socket, for DEYE/Solarmi, RFID, car mode

OlifeEnergy EV charging station PLUS 22 kW

WallBox is a durable charging station for charging all electric vehicles on the EU market with a power of up to 22 kW (alternating current AC). The charging station is designed for outdoor use and installation in the garage. It also offers the option of mounting on a wall (wallbox) or on a profile anchored to the ground (pole).

This WallBox is equipped with a wide range of functionalities. Charging can be started automatically immediately after connecting the vehicle and identifying it with an RfID card or mobile phone. Complete configuration is also carried out via the mobile app. The station power can be set in the range of 0 to 22 kW.

AC stations in the PLUS variant then add full control over charging. They offer remote control via the home network. After connecting to the application, they enable monitoring and management of charging, user authorization, along with overviews of the history and energy consumption of each user . The stations are also equipped with communication with inverters from leading manufacturers , thanks to which they effectively use surplus solar energy and energy from storage batteries for charging. Using the external OlifeEnergy SmartMeter unit (separate product), it is possible to dynamically control the power of the charging station to avoid tripping circuit breakers during high consumption, and to charge from surplus solar energy or a low tariff.

•

• AC supply type: AC 3 + N + PE 400 V 50 Hz, TN-S

• Max. cable cross-section: 10 mm ²

• Control: local - automatic, RFID, mobile application (Bluetooth), mobile application (LAN/Wi-Fi)

• Residual protection: detection of residual DC current according to IEC 62955

• Communication: Bluetooth, Modbus RTU (over RS-485), ADC 0–10 V, Ethernet, Wi-Fi


BASIC SPECIFICATIONS

Power: 22 kW

Input voltage: 3× 400 V (option 1× 230 V)

Input current: 0-32A

Connection type according to ČSN EN 61851: Type B

Output: Type 2 (according to ČSN EN 62196), socket

Protection category: IP54

Operating temperature: -25 to +40 °C

Dimensions: 320 × 194 × 120 mm

Weight: 6.5 kg (net, packaging + 2 kg)
