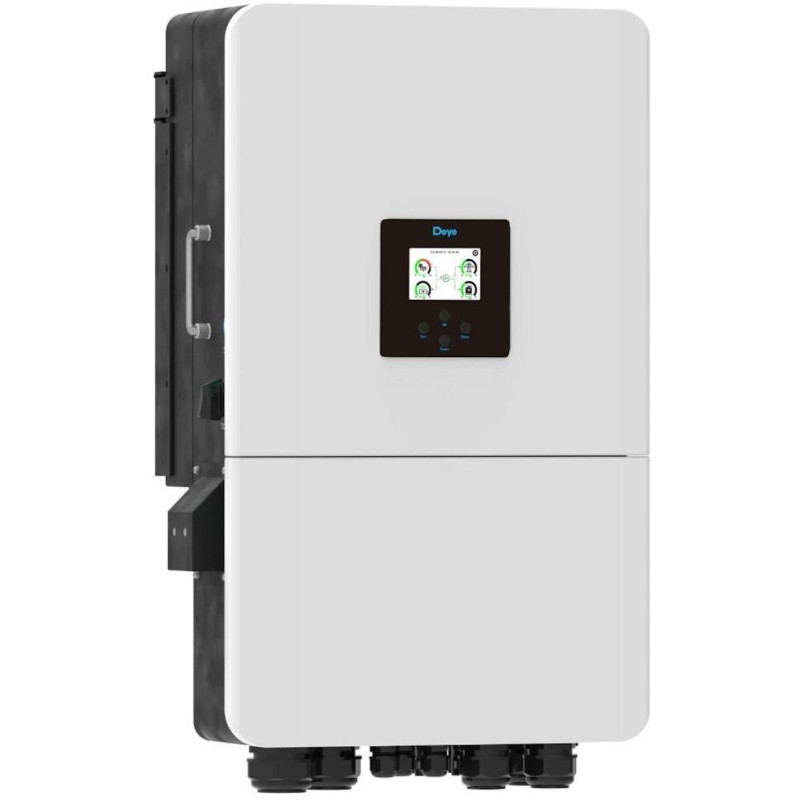

Solarmi Deye SUN-15K-SG05LP3-EU-SM2 hybrid 15kW inverter with limiter, three-phase 400V, asymmetric

Multifunctional 3-phase asymmetric (100%) hybrid converter/inverter from the manufacturer DEYE , which combines the functions of a converter, solar charger and battery charger . The biggest advantage of this converter is the adjustable input/output "smart load" where you can connect a generator, string converter, or heating cartridge for water heating. The comprehensive LCD display provides user-configurable and easily accessible control (battery charging, AC/solar charging, permissible input voltage depending on various applications, etc.). It is equipped with an RS-485/CAN port for communication and management. The converter provides additional information, statistics, graphs + the possibility of remote management via the supplied Wi-Fi dongle. The package includes probes for measuring consumption and a datalogger (Wi-Fi). The electricity meter is not included.

These inverters are equipped with a great SmartLoad function , which allows you to connect a 230V appliance only under certain conditions. To connect such an appliance, the GEN port is used, which can be changed in the settings from the generator port to a smartly switched appliance port.
So, for example, if the battery is 90% charged, the inverter turns on the GEN port and connects, for example, a boiler. After the battery capacity drops to the set level, it disconnects the appliance on the GEN port again. This way, surpluses can be effectively used to heat water in the boiler, swimming pool, etc.

BASIC SPECIFICATIONS

Charger (battery)
Battery type: lead-acid, lithium-ion battery
Battery voltage range : 40–60 V
Max. charging current : 280 A
Max . discharge current : 280 A
Charging processh: 3 degrees / leveling
Charging system for Li-Ion batteries : customization using the BMS system

PV input (photovoltaics)
Max. DC input power: 30,000 W
PV input voltage : 550V (160-800V)
MPPT range : 160-650V
Full load DC voltage range : 160–800 V

Starting voltage : 160 V
PV input current : 36 A + 36 A
Max . PV ISC : 54 A + 54 A
Number of MPPTs : 2
Number of strings per MPPT : 2 + 2

Inverter (AC output)

Power (rated): 15,000 W (max. 16,500 W)
Power (peak): 2× rated, 10 seconds
Rated current : 22.8 A (max. 25.0 A)
Max. continuous alternating current flow : 70 A

Output voltage : AC 220/380 V, AC 230/400 V (50/60 Hz), 3L/N/PE

Efficiency: 97% (MPPT 99%)
Protection: IP65

Dimensions : 750 × 456 × 268.5 mm
Weight : 51.9 kg
