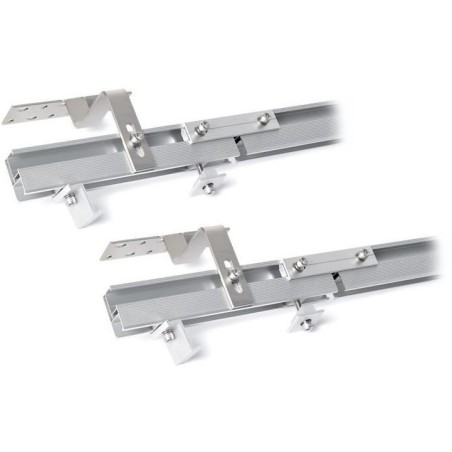

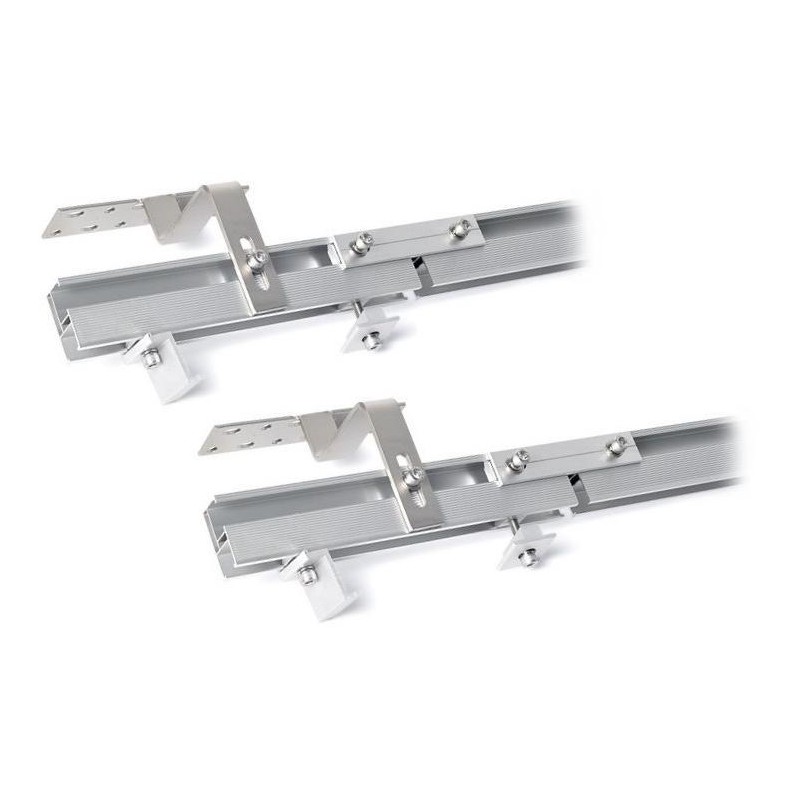

Solarmi SCOMP-2H35 complete SC bracket for mounting 2 pcs of 35 mm solar panels on a pitched roof (hook)

Xtend Solarmi SCOMP-2H35

Precise and easy to install complete SC bracket for two solar panels with a frame height of 35 mm . Contains all the necessary parts for attaching two panels to a tiled (gable) roof.

The solid construction of the complete SC bracket withstands even heavy snow or wind and is used to attach solar panels to pitched roofs with tiled coverings . It is attached with screws to the roof beams. Screws are not included in the delivery.

The complete bracket includes the following components:

•

• 6x roof hook with screws for the rail, which is intended for attachment to the beam using screws

• 4x side panel clamp

• 2x center panel clamp

• 2x rail connecting profile

• 2x pairs of 100 cm and 110 cm strips. Always use 1x 100 cm strip with 1x 110 cm strip in a row


Advantages of the SC system:

•

• High-quality stainless steel fasteners and hooks

• Welded hook construction

• Symmetrical arrangement

• Standard hook height 135 mm (dimension between beam and solar panel.

• Side mounting aluminum rail for easy installation and weather resistance

• Fastening with M8 Allen key


If you need to mount multiple panels, order the corresponding multiple of this bracket model.

If you are installing on a different type of roof, add to your order:

6 pcs of combi screws in case of installation on corrugated, asphalt and similar roofs

or

6 pieces of metal roof brackets .

Both of these types of holders also require L profiles for the SC series.

When installing microinverters, use an M8 screw with a compatible profile to attach them to the rail . You can also add this screw at a discounted price in the first step of the cart.

More information can be found here:

https://www.i4wifi.cz/cs/faq/334-sestava-drzaku-pro-pole-solarnich-panelu-na-strechu

BASIC SPECIFICATIONS

Type: complete SC holder

Compatibility: solar panels with a frame height of 35 mm
