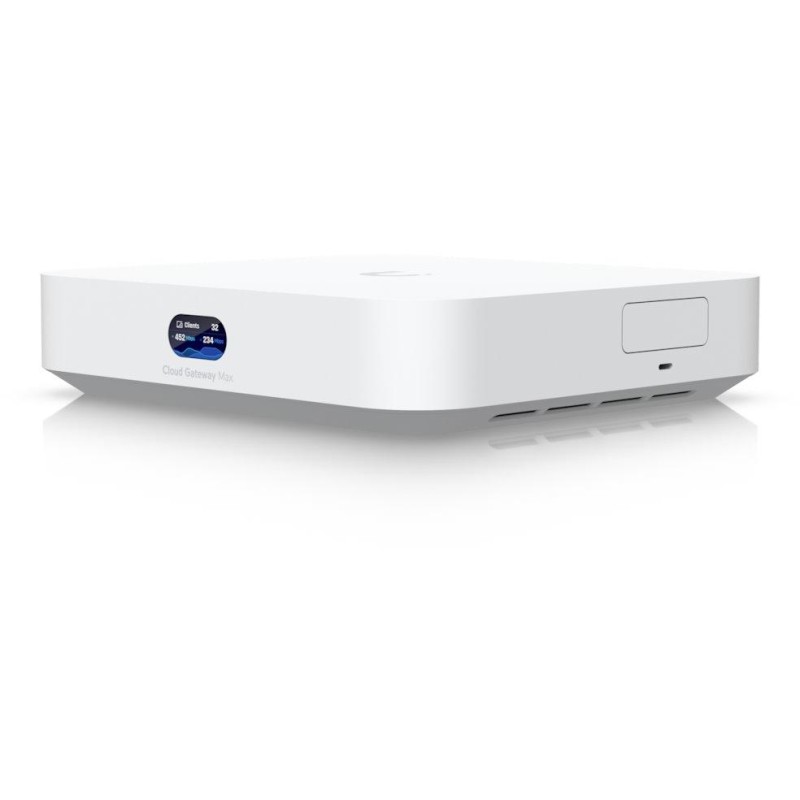

Ubiquiti UniFi Cloud Gateway Max
A powerful and compact UniFi Cloud Gateway multi-WAN with a full set of advanced routing and security features. This device supports all UniFi applications for managing all UniFi devices (i.e. UniFi Network, UniFi Protect, UniFi Access, UniFi Talk and UniFi Connect ). The Cloud Gateway can be accessed via the web interface at unifi.ui.com and via the UniFi Network mobile app .
The UniFi Cloud Gateway Max features one WAN port (2.5GbE RJ-45) and four LAN (2.5GbE RJ-45) ports, providing the high-speed connectivity needed to support most bandwidth-intensive applications. It also stands out as a compact network security solution that offers a complete set of threat mitigation features , including intrusion detection and prevention systems (IDS/IPS), content filtering, and VLAN-based traffic segmentation. It features a 0.96" LCM display that displays the current status of connected devices.
Features and benefits:
- Pre-installed UniFi Network app for managing over 30 UniFi devices and over 300 clients
- Support for all UniFi applications for managing UniFi devices (i.e. UniFi Network, UniFi Protect, UniFi Access, UniFi Talk and UniFi Connect)
- Quad-Core ARM Cortex-A53 (1.5 GHz), 3 GB DDR4 RAM
- 1× WAN port (2.5 GbE RJ-45), 4× LAN port (GbE RJ-45), Bluetooth
- Compact design & dimensions 141.8 × 127.6 × 30 mm
- USB-C power supply (DC 5 V/ 5 A), power adapter included
- QoS with UniFi Wi-Fi Access Points, QoS by Application, Domain, and Country
- Redundant WAN with failover and load balancing
- Additional Internet failover with LTE Backup
- Built-in storage 512GB SSD
- Identifying the application and device type
- IDS/IPS throughput up to 1.5 Gbps
- Load balancing across multiple networks
- WireGuard, L2TP and OpenVPN server
- Manageable via UniFi Network mobile app: version 10.17.2 or later
Next-generation security:
- Application-specific firewall rules
- Signature-based IPS/IDS threat detection
- Content, country, domain, and ad filtering
- Traffic segmentation based on VLAN/subnets
- Fully stateful firewall
Advanced network technologies:
- License-free SD-WAN
- WireGuard, L2TP and OpenVPN server
- OpenVPN client
- OpenVPN and IPsec site-to-site VPN
- Teleport and Identity VPN in one click
- Policy-based WAN and VPN routing
- DHCP relay
- Customizable DHCP server
- IGMP proxy server
- IPv6 ISP support
BASIC SPECIFICATIONS
Ports: 1× 2.5GbE RJ-45 WAN, 4× 2.5GbE RJ-45 LAN, 1× USB-C (power)
Processor: ARM Cortex-A53 (4-core, 1.5 GHz)
Memory size: 3GB DDR4
Storage: 512GB NVMe SSD
PoE support: no
Dimensions: 141.8 x 127.6 x 30mm
Weight: 519g
Manual (assembly instructions):
es/book_1.jpg" border="0" alt="book_1.jpg" />dl.ui.com/qig/ucg-max/#index
