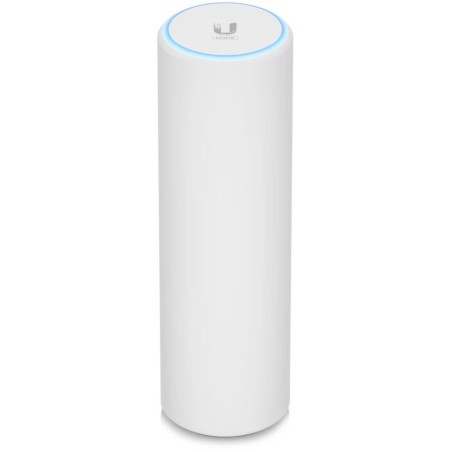

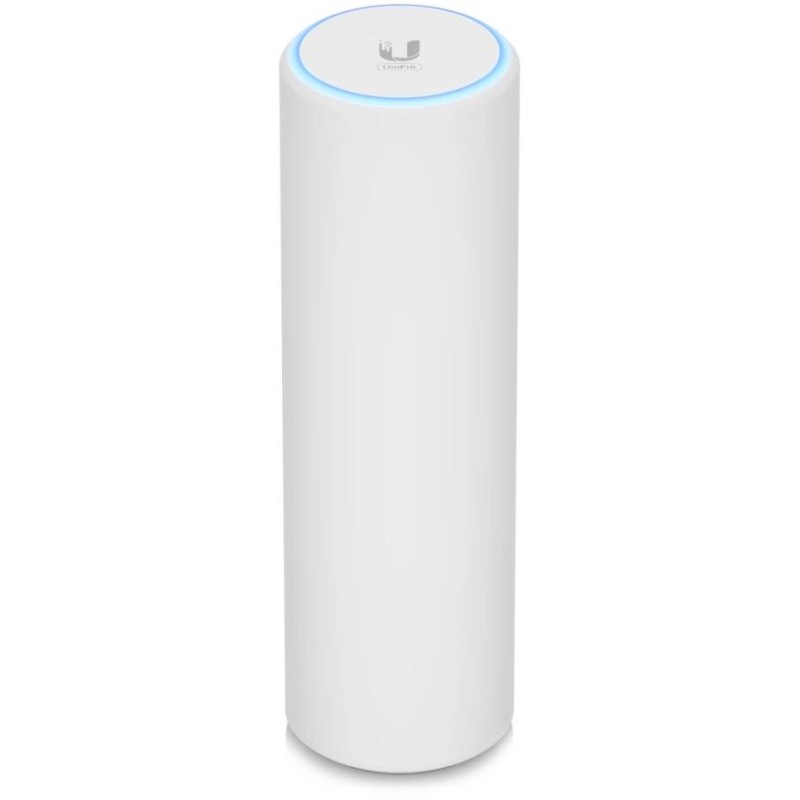

Ubiquiti UniFi 6 Mesh
This small, sleek and powerful AP is ideal for businesses and homes . The modern and discreet design allows for placement close to users for optimal performance.
Thanks to the support of the 802.11ax DL/UL MU-MIMO 4x4 standard, it achieves a combined transfer rate of up to 5.3 Gbps . The AP has integrated 5 dBi antennas for the 5 GHz band and 3 dBi antennas for the 2.4 GHz band. Suitable for indoor and outdoor use.
Features and functions:
- Highly efficient 4x4 Wi-Fi 6 (802.11ax)
- 5 GHz band (4×4 MU-MIMO and OFDMA) with 4.8 Gbps throughput
- 2.4 GHz band (2×2 MIMO) with 573.5 Mbps throughput
- Fully supports 4×4 MIMO and 160 MHz bandwidth
- Power supply via PoE 802.3af (PoE adapter included)
- Housing design - plastic and aluminum, IPX5 protection
The UniFi unit works with the UniFi Network Application (version 6.3.51 or later), which allows you to manage the created wireless network via a web browser. You can plan the placement of communicating UniFi units on a map and define virtual APs with different permissions, including the ability to redirect to an authentication server.
Create a powerful Mesh network
UniFi 6 Mesh is ideal for creating a wireless Mesh network, thanks to its 4x4 MIMO support it achieves twice the speed of conventional Mesh solutions.
The unit supports active PoE 802.3af power supply (adapter included).
BASIC SPECIFICATIONS
Standard: IEEE 802.11a/b/g/n/ac/ax
Data transfer rate: 5 GHz - 4.8 Gbps, 2.4 GHz - 573.5 Mbps
Antenna: 5 dBi 4×4 MU-MIMO (5 GHz), 3 dBi 2×2 MU-MIMO (2.4 GHz)
Ports: 1× GbE RJ-45
PoE support: yes, PoE 802.3af
Frequency band: 2.4GHz, 5GHz
Security: WPA-PSK, WPA-Enterprise (WPA/WPA2/WPA3)
Dimensions: 159.5 × 48.5 × 48.5 mm
Weight: 400g
Color: white
Manual (assembly instructions):
https://dl.ui.com/qig/u6-mesh
Datasheet:
https://dl.ui.com/ds/u6-mesh_ds
