Ubiquiti UniFi Swiss Army Knife Ultra - Wi-Fi 5 AP, 2.4/5GHz, up to 1166 Mbps, 1x GbE, outdoor, IPX6, PoE (no PoE inj.)

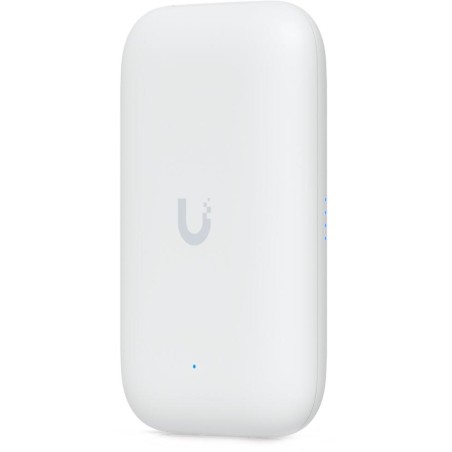

Ubiquiti UniFi Swiss Army Knife Ultra

The UniFi Swiss Army Knife Ultra (UK-Ultra) is a powerful dual-band Wi-Fi AP with support for both 2.4 and 5 GHz frequency bands and transfer speeds of up to 1166.7 Mbps . Its small size and flexible placement options make it ideal for both business and home use.

UniFi Swiss Army Knife Ultra is a compact hotspot solution with a well-designed design using the 802.11ac (Wi-Fi 5) standard and is equipped with a 2×2 MIMO antenna system. The device features a higher gain of 6.1 dBi (for 5 GHz) and 4.7 dBi (for 2.4 GHz) antennas, which improves two-way communication between remote clients and the AP. The access point supports PoE power supply . The unit requires UniFi OS version 8 or later .

•

• 802.11ac (Wi-Fi 5) standard

• 5 GHz band with 866.7 Mbps throughput

• 2.4 GHz band with 300 Mbps throughput

• Coverage up to 115 ^m2

• Capacity of more than 200 concurrent clients

• PoE power supply (44-57V)

• Full use of 2×2 MIMO technology

• Guest Traffic Isolation, which increases wireless network security and reduces the possibility of traffic congestion

• Management using the UniFi Network Application (Network)

• IPX6 protection (can be mounted indoors and outdoors)

• Wall or pole mounting (⌀ 1–2", bracket included)

• 2 RP-SMA connectors for optional external antennas

• Support WPA-PSK, WPA-Enterprise (WPA/WPA2, TKIP/AES), VLAN (802.1Q), Advanced QoS

• Requires UniFi OS software version 8 or later


The package does not include a PoE injector!

UniFi devices can be configured and managed using the UniFi Network application, which is pre-installed on UniFi OS consoles (UniFi Dream Machine, Dream Router, Dream Wall, Express, Cloud Gateway Ultra, etc.). Alternatively, the freely available UniFi Network Server software is available for installation on your own computer or server (Windows, MacOS, Linux). The UniFi Network Server software is constantly being improved, so we recommend always using the latest version, which you can download from the Ubiquiti website in the Download section. You can also learn more about this product at the Ubiquiti training .

BASIC SPECIFICATIONS

Standard: 802.11a/b/g/n/ac

Antenna: integrated 2-band antenna, 2x RP-SMA connector

Operating frequency: 2.4 GHz, 5 GHz

Data transfer rate: 300 Mbps (2.4 GHz), 866.7 Mbps (5 GHz)

PoE support: yes, active PoE 802.3af (44-57V)

Ports : 1× GbE RJ-45

Dimensions: 137 × 84 × 34 mm

Manual (assembly instructions):

er="0" alt="book_1.jpg" />https://dl.ui.com/qig/uk-ultra
