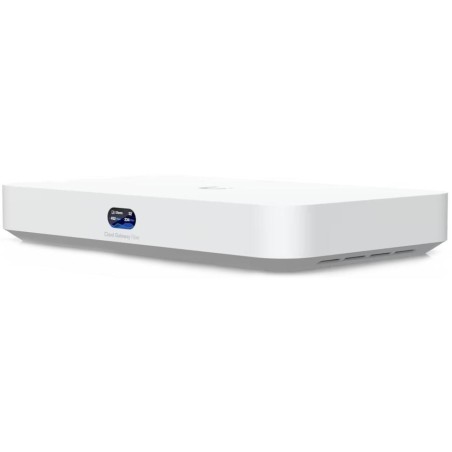

Ubiquiti UniFi Cloud Gateway Fiber
Desktop 10G Cloud Gateway with integrated 4-port 2.5GbE switch , optional NVR storage, and full UniFi app support. UniFi Network software for managing UniFi devices is pre-installed directly on the Cloud Gateway. The Cloud Gateway can be accessed via the web interface at unifi.ui.com and the UniFi Network mobile app .
The UniFi Cloud Gateway Fiber is equipped with two WAN ports (10GbE RJ-45, 10GbE SFP+) , one 10Gb SFP+ port, and four LAN (2.5GbE RJ-45) ports, providing the high-speed connectivity needed to support most bandwidth-intensive applications. It also stands out as a compact network security solution that offers a complete set of threat mitigation features , including intrusion detection and prevention systems (IDS/IPS), content filtering, and VLAN-based traffic segmentation. It features a 0.96" LCM display that displays the current status of connected devices.
Features and benefits:
- Manage over 50 UniFi devices and over 500 clients
- Quad-Core ARM Cortex-A73 (2.2 GHz), 3 GB DDR4 RAM
- 2x WAN port (10GbE RJ-45, 10GbE SFP+), 4x LAN port (2.5GbE RJ-45), 1x 10Gb SFP+ port, Bluetooth
- Compact design & dimensions 212.8 × 127.6 × 30 mm
- DC power supply 54V/1.1A (50-57V), power adapter included
- QoS with UniFi Wi-Fi Access Points, QoS by Application, Domain, and Country
- Integrated 4-port switch with one PoE+ port
- Additional Internet failover with LTE Backup
- NVMe SSD storage slot
- Identifying the application and device type
- IDS/IPS throughput up to 5 Gbps
- Load balancing across multiple networks
- WireGuard, L2TP and OpenVPN server
- ESD/EMP protection up to 8 kV air, up to 4 kV contact
Next-generation security:
- Application-centric firewall rules
- Signature-based IPS/IDS threat detection
- Content, country, domain, and ad filtering
- Traffic segmentation based on VLAN/subnets
- Fully stateful firewall
Advanced network technologies:
- License-free SD-WAN
- WireGuard, L2TP and OpenVPN server
- OpenVPN client
- OpenVPN and IPsec site-to-site VPN
- Teleport and Identity VPN in one click
- DHCP relay
BASIC SPECIFICATIONS
Ports: Bluetooth, 1× 10GbE RJ-45 WAN, 4× 2.5GbE RJ-45 LAN, 1× 10GbE SFP+ WAN, 1× 10GbE SFP+
Processor: ARM Cortex-A73 (4-core, 2.2 GHz)
Memory size: 3GB DDR4
Storage: 1x NVMe SSD slot (up to 2 TB)
PoE support: yes, 1× PoE+, PoE Budget 30 W
Dimensions: 212.8 x 127.6 x 30 mm
Weight: 675g
Manual (assembly instructions):
dl.ui.com/qig/ucg-fiber>
