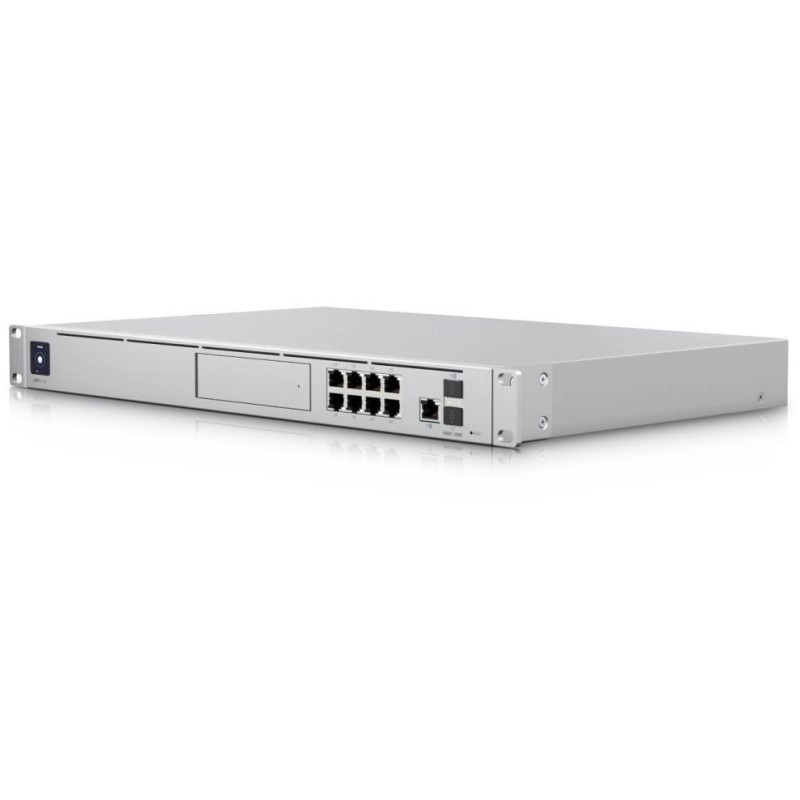

Ubiquiti UniFi Dream Machine SE (Special Edition)
The Dream Machine SE is an enterprise-class console (router + security gateway), designed for 1U rack mounting, that helps home and business owners seamlessly expand and manage networks with high-speed connectivity with dual WANs ( 10G SFP+ and 2.5GbE RJ45 ports), a Gigabit PoE switch, and a Network Video Recorder (NVR) with 128GB of internal storage . The device is powered by the UniFi OS and supports all UniFi applications for managing all UniFi devices (i.e. UniFi Network, UniFi Protect, UniFi Access, UniFi Talk, and UniFi Connect ). It is also a future-proof console as it will be able to run all upcoming UniFi OS applications. Designed for end-to-end simplicity, the UDM Special Edition features integrated Bluetooth to simplify the initial setup and configuration process, which can be completed in minutes using the UniFi Network app (web or mobile interface).
- 1.3" color touchscreen for clear network monitoring
- Customizable Internet threat filtering and traffic identification for better network security
- Quick setup via Bluetooth via the UniFi Network web app or mobile app
- Possibility to connect a redundant SmartPower power supply system to create an uninterruptible network
- Integrated security gateway and UniFi Protect-ready NVR that supports compatible 3.5" hard drives
- Support for all UniFi applications for managing UniFi devices (i.e. UniFi Network, UniFi Protect, UniFi Access, UniFi Talk and UniFi Connect)
- Integrated 128GB storage for full use of UniFi OS applications
Next-generation security:
- Application-specific firewall rules
- Signature-based IPS/IDS threat detection
- Content, country, domain, and ad filtering
- Traffic segmentation based on VLAN/subnets
- Fully stateful firewall
Advanced network technologies:
- License-free SD-WAN
- WireGuard, L2TP and OpenVPN server
- OpenVPN client
- OpenVPN and IPsec site-to-site VPN
- Teleport and Identity VPN in one click
- Policy-based WAN and VPN routing
- DHCP relay
- Customizable DHCP server
- IGMP proxy server
- IPv6 ISP support
BASIC SPECIFICATIONS
Ports: 8x GbE RJ-45 LAN, 1x 2.5GbE RJ-45 WAN, 1x 10G SFP+ WAN, 1x 10G SFP+ LAN
Throughput: 3.5Gbps
Processor: ARM Cortex-A57 (4-core, 1.7 GHz)
Memory size: 4GB DDR4 RAM + 16GB eMMC + 128GB SSD
PoE support: yes, 2x PoE+ IEEE 802.3at, 6x PoE IEEE 802.3af
Dimensions: 442.4 × 285.6 × 43.7 mm
Weight: 4.95 kg
Manual (assembly instructions):
https://dl.ui.com/qig/udm-se
Datasheet:
target="_blank" rel="noreferrer noopener"> https://dl.ui.com/ds/udm_se_ds.pdf
