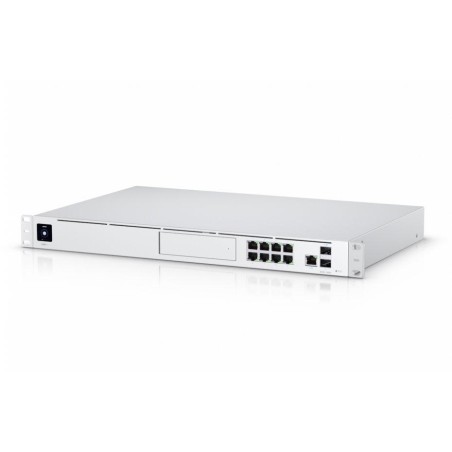

Ubiquiti UniFi Dream Machine Pro
The UniFi Dream Machine Pro (UDM-Pro) combines advanced security features with high-performance routing/switching , unifying a router, security gateway, and switch. It supports all UniFi applications for managing all UniFi devices (i.e. UniFi Network, UniFi Protect, UniFi Access, UniFi Talk, and UniFi Connect ). The UDM-Pro is ideal for small and medium-sized businesses that require a reliable, managed router/switch in a professional 1U rack-mount design. The UniFi Dream Machine Pro is an ALL IN ONE solution that includes:
- Router and 8-port switch (8x GbE RJ-45 LAN, 1x GbE RJ-45 WAN, 2x SFP+)
- Security gateway - advanced security features (IDS/IPS, DPI, Endpoint Scanning, Threat Management and other functions)
- 3.5" HDD slot for NVR storage (also supports 2.5" drives)
UniFi Dream Machine Pro supports Deep Packet Inspection ( DPI ) to monitor and block services used by clients, and an Intrusion Prevention System ( IPS ) to proactively protect your network from attacks and suspicious activity in real time.
All operations are controlled by a powerful quad-core 1.7 GHz ARM Cortex-A57 processor and the throughput reaches up to 3.5 Gbps (8 Gbps without IDS/IPS).
Other features and benefits:
- Support for all UniFi applications for managing UniFi devices (i.e. UniFi Network, UniFi Protect, UniFi Access, UniFi Talk and UniFi Connect)
- Automatic QoS Top prioritization (calls and video transmission)
- VPN server
- VLAN support
- 1.3" touch screen (status information for easy monitoring)
- Plug & Play installation and management via web interface or Bluetooth
Next-generation security:
- Application-specific firewall rules
- Signature-based IPS/IDS threat detection
- Content, country, domain, and ad filtering
- Traffic segmentation based on VLAN/subnets
- Fully stateful firewall
Advanced network technologies:
- License-free SD-WAN
- WireGuard, L2TP and OpenVPN server
- OpenVPN client
- OpenVPN and IPsec site-to-site VPN
- Teleport and Identity VPN in one click
- Policy-based WAN and VPN routing
- DHCP relay
- Customizable DHCP server
- IGMP proxy server
- IPv6 ISP support
BASIC SPECIFICATIONS
Ports: 9x RJ-45, 2x SFP+
Throughput: 3.5 Gbps (8 Gbps without IDS/IPS)
ARM Cortex-A57 processor (4-core, 1.7 GHz)
Memory size: 4GB DDR4 RAM + 16GB eMMC
PoE support: no
RoDimensions: 442.4 x 285.6 x 43.7 mm
Weight: 3.9 kg
