Ubiquiti UniFi G5 Flex - camera, 4Mpx resolution, 30 fps, IR LED, IPX4, PoE

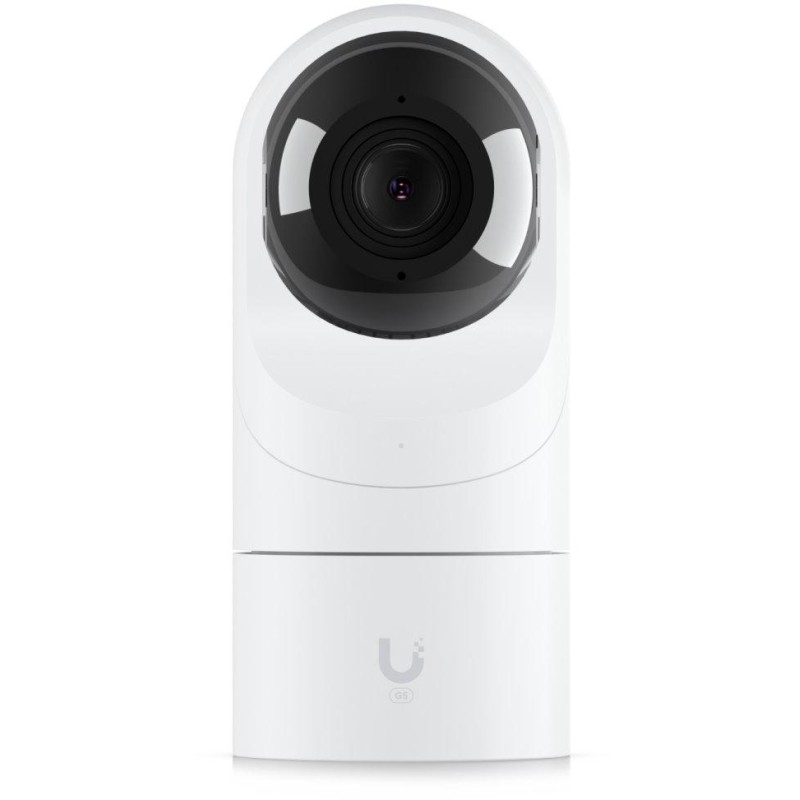

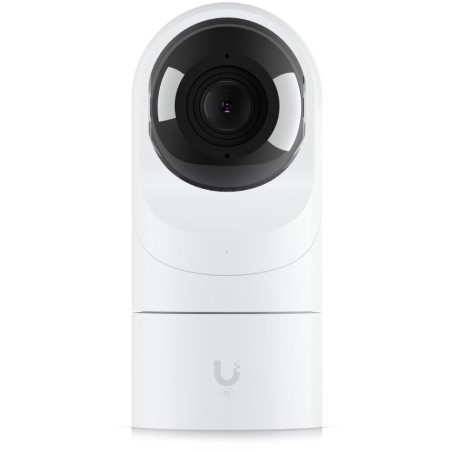

Ubiquiti UniFi Protect G5 Flex

The UniFi Protect G5 Flex camera provides clear and sharp images in 2688 × 1512 resolution at 30 fps with night vision capability.

The camera supports active PoE power supply (37-57 V DC) . The package does not include a PoE injector.

•

• Compact 2K HD PoE camera (indoor & outdoor)

• 5 Mpx CMOS sensor (4 Mpx video)

• Field of view: 102.4° horizontal, 54.9° vertical, 120.6° diagonal

• IR illumination (night mode) with a range of up to 6 m

• AI event detection (artificial intelligence)

• H.264 video compression

• Microphone (can be turned off)

• Protection IPX4 + IK04 (anti-vandal)

• PoE power supply

• Mounting: desktop, wall, pole, ceiling (included), cable (sold separately)

• Management via UniFi Protect app (version 2.2.7 or 2.7.28 and later (web) / 1.10.0 and later (iOS & Android))


The camera is part of the UniFi Protect product line, where the biggest advantage is centralized management of all devices in a single software. The UniFi Protect software is pre-installed on the UniFi Protect NVR server (IPZUBT1003) for Full HD recording of up to 50 cameras, the UniFi Cloud Key Gen2 Plus (NAOUBT1019) for recording of up to 15 cameras or the UniFi Dream Machine PRO (NAAUBT1121) for recording of up to 32 cameras.

The advantage of servers is that they work with applications for mobile devices, so you can keep your camera system under constant surveillance.*

UniFi Protect app for Android mobile devices

UniFi Protect app for iOS mobile devices

BASIC SPECIFICATIONS

Sensor resolution: 5 Mpx

Sensor chip: 5 Mpx CMOS sensor (4 Mpx video)

Maximum resolution: 2688 × 1512 px

Frame rate: max. 30 fps

IR illumination: yes, up to 6 m (20 ft)

Lens: fixed

Interface: 1× RJ-45 10/100 Mbps

Video compression: H.264

Memory card slot: no

Audio: yes, integrated microphone

Power supply: PoE 37-57V DC

Working temperature: -20 to +40 °C

Weight: 170g

Dimensions: 107.5 × 48 × 48 mm

WDR (Wide Dynamic Range)

G4, G5 and AI series cameras feature True WDR technology. G3 and older generations only have Digital WDR (DWDR).

When the FPS is increased in software (above the default value), WDR is turned off due to the exposure limit.

Attention:

The camera is not intended for outdoor use. Installation is only possible in a protected environment (for example, in a false ceiling, under a roof, etc.). For outdoor installation, you can use the Ubiquiti Professional Wall Mounts IPIUBT0003 and IPIUBT0004, which can be found in related products.

Manual (assembly instructions):

https://dl.ui.com/qig/uvc-g5-flex.pdf

Datasheet:

https://dl.ui.com/ds/uvc-g5-flex_ds.pdf

*A standalone camera without a recording server cannot be configured or managed in mobile apps. Standalone cameras can also be accessed via the web interface at the device's IP address.
