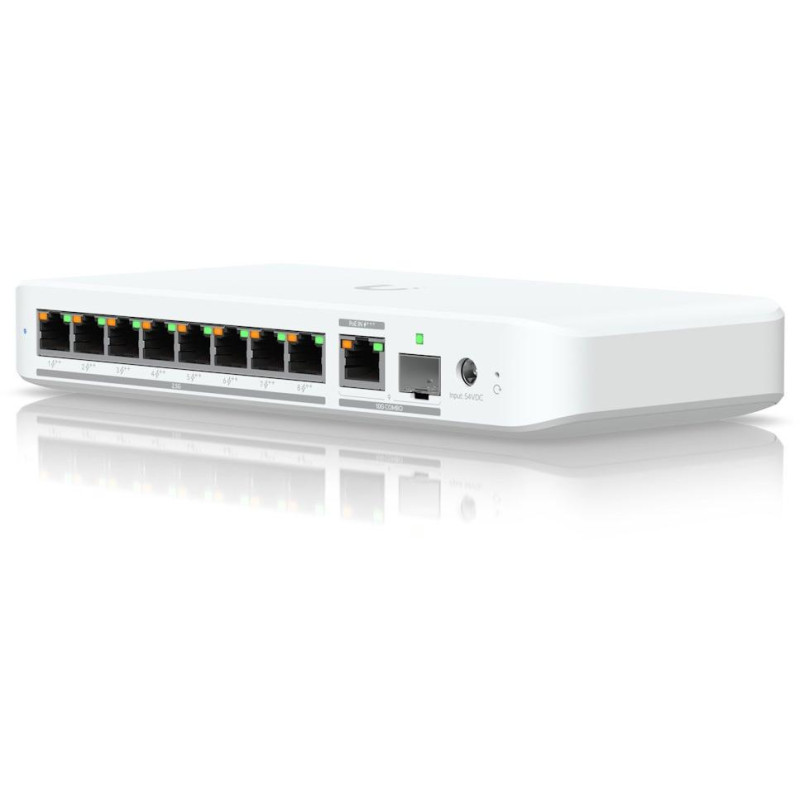

Ubiquiti UniFi Switch Flex Mini 2.5G 8 PoE
Flexible switch offering eight 2.5GbE RJ-45 PoE++ ports and one 10G RJ-45/SFP+ combo for uplink . It is an L2 switch with a total capacity of 60 Gbps , a routing speed of 44.64 Mpps and a PoE budget of up to 196 W (depending on the power supply type). The switch can be powered either via a DC connector or using PoE+++.
Possibility of mounting on a wall (included in the package) or on a DIN rail (not included).
- 8× 2.5G RJ-45 PoE++ output
- 1× 10G RJ-45 PoE+++/SFP+ input
- 196 W PoE budget (power adapter)
- Wall mounting possible (mounting kit included)
- LED indication
UniFi devices can be configured and managed using the UniFi Network application, which is pre-installed on UniFi OS consoles (UniFi Dream Machine, Dream Router, Dream Wall, Express, Cloud Gateway Ultra, etc.). Alternatively, the freely available UniFi Network Server software is available for installation on your own computer or server (Windows, MacOS, Linux). The UniFi Network Server software is constantly being improved, so we recommend always using the latest version, which you can download from the Ubiquiti website in the Download section. You can also learn more about this product at the Ubiquiti training .
L2 function:
STP/RSTP with priorities and port-level disabling
Port isolation
Storm control
Port mirroring
Multicast/broadcast rate limiting
Flow control
Jumbo frames
Egress rate limit
Custom loop protection
Power options:
- PoE+ input: 12W
- PoE++ input: 37W
- PoE+++ input: 57W
- 210W AC adapter: 196W (adapter not included)
BASIC SPECIFICATIONS
Ports: 8× 2.5 GbE RJ-45 PoE++, 1× 10G combo RJ-45 PoE+++/SFP+
Switch capacity: 60 Gbps (30 Gbps non-blocking)
Routing speed: 44.64 Mpps
PoE support: yes (802.3af/at/bt, 196 W PoE budget)
Power supply: AC/DC input 54 V DC (DC jack), or PoE input 50—57 V DC
Dimensions: 212.9 x 99.4 x 33.5mm
Weight: 567g
Manual (assembly instructions):
Ubiquiti UniFi Switch Flex Mini 2.5G 8 PoE
