Ubiquiti UniFi Dream Machine Pro Max - Router, Full UniFi OS, IDS/IPS, 8x GbE, 1x 2.5GbE, 2x SFP+

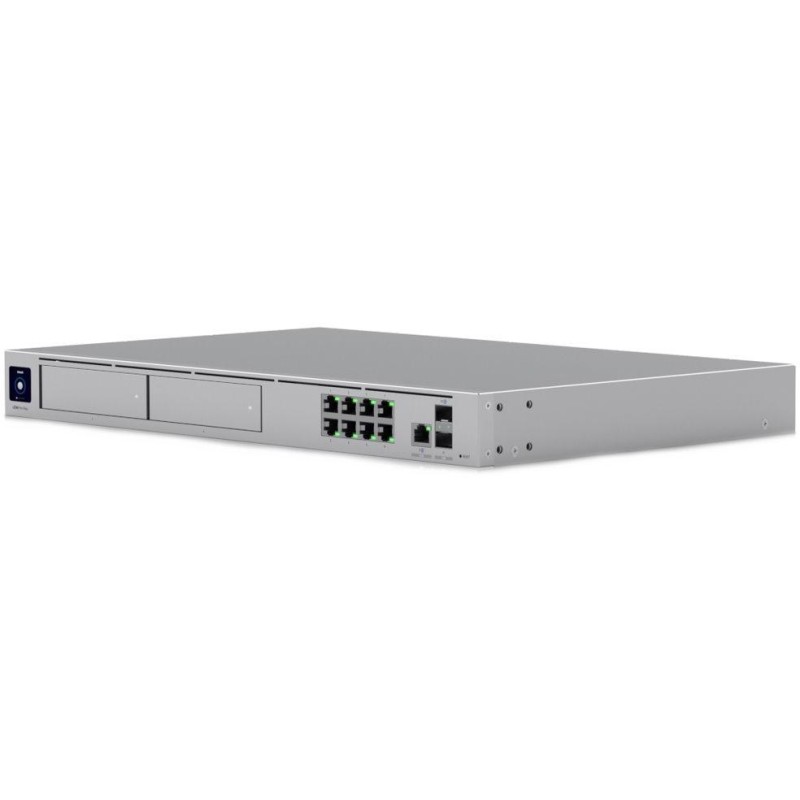

Ubiquiti UniFi Dream Machine Pro Max

The UniFi Dream Machine Pro Max (UDM-Pro-Max) combines advanced security features with high-performance routing/switching , unifying a router, security gateway, and switch. This device supports all UniFi applications for managing all UniFi devices (i.e. UniFi Network, UniFi Protect, UniFi Access, UniFi Talk, and UniFi Connect ). The UDM-Pro-Max is ideal for businesses that require a reliable, managed router/switch in a professional 1U rack-mountable design. The UniFi Dream Machine Pro Max is an ALL IN ONE solution that includes:

•

• Router and 8-port switch (8x GbE RJ-45 LAN, 1x 2.5GbE RJ-45 WAN, 2x SFP+)

• Security gateway - advanced security features (IDS/IPS, DPI, Endpoint Scanning, Threat Management and other functions)

• 2× 3.5" HDD slot for NVR storage (also supports 2.5" drives)


UniFi Dream Machine Pro supports Deep Packet Inspection ( DPI ) to monitor and block services used by clients, and an Intrusion Prevention System ( IPS ) to proactively protect your network from attacks and suspicious activity in real time.

All operations are controlled by a powerful 2.0 GHz ARM Cortex-A57 quad-core processor and the throughput reaches up to 5 Gbps .

Other features and benefits:

•

• Support for all UniFi applications for managing UniFi devices (i.e. UniFi Network, UniFi Protect, UniFi Access, UniFi Talk and UniFi Connect)

• Integrated Wi-Fi 7 (2x2 MU-MIMO)

• 300+ connected Wi-Fi devices

• 0.96" color LCM screen for network and connection monitoring

• VPN server

• VLAN support

• Plug & Play installation and management via web interface or Bluetooth

• Pre-installed microSD card (64 GB) for NVR recording detection


Next-generation security:

•

• Application-centric firewall rules

• Signature-based IPS/IDS threat detection

• Content, country, domain, and ad filtering

• Traffic segmentation based on VLAN/subnets

• Fully stateful firewall


Advanced network technologies:

•

• License-free SD-WAN

• WireGuard, L2TP and OpenVPN server

• OpenVPN client

• OpenVPN and IPsec site-to-site VPN

• Teleport and Identity VPN in one click

• Policy-based WAN and VPN routing

• DHCP relay

• Customizable DHCP server

• Proxy server IGMP

• IPv6 ISP support


BASIC SPECIFICATIONS

Ports: 8x GbE RJ-45 LAN, 1x 2.5GbE RJ-45 WAN, 1x 10G SFP+ LAN, 1x 10G SFP+ WAN

Throughput: 5 Gbps

ARM Cortex-A57 processor (4-core, 2.0 GHz)

Memory size: 8GB DDR4 RAM + 32GB eMMC + integrated 128GB SSD

PoE support: no

Dimensions: 442.4 × 285.6 × 43.7 mm

Weight: 4.7 kg

Manual (assembly instructions):

Ubiquiti UniFi Dream Machine Pro Max
