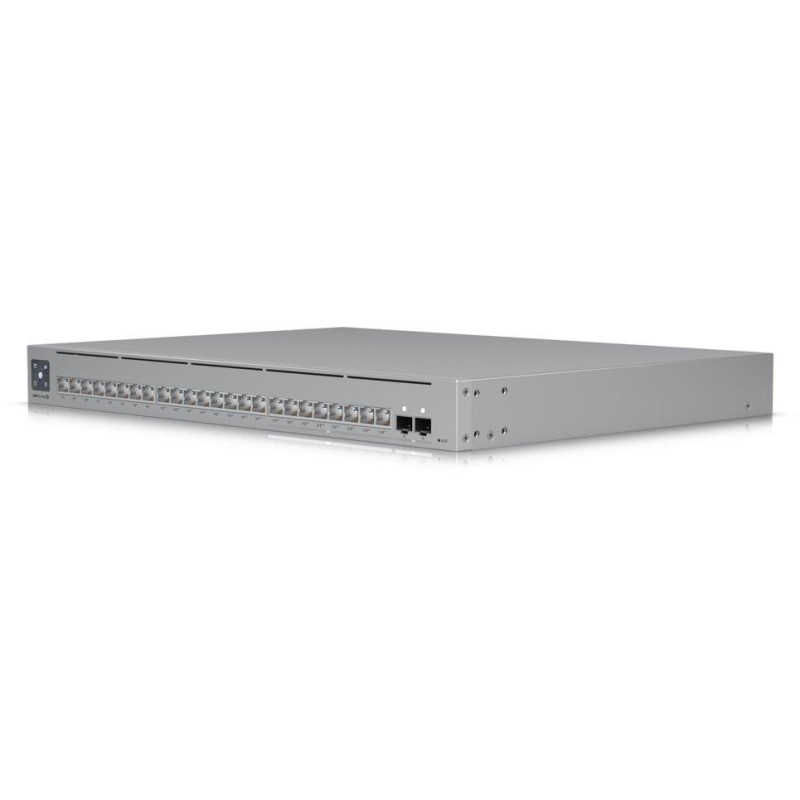

Ubiquiti UniFi Switch Pro Max 24 PoE - 8x 2.5GbE, 16x GbE, 2x SFP+, Etherlighting, PoE+/PoE++ (PoE budget 400W)

Ubiquiti UniFi Switch Pro Max 24 PoE 400 W

The UniFi Switch (USW-Pro-Max-24-PoE) is ideal for small and medium businesses that require a reliable L3 managed switch in a professional design designed for 1U rack mounting.

Build your network with the Ubiquiti networks UniFi Switch series. The UniFi Switch Pro Max 24 PoE is a high-performance, multi-gigabit PoE switch from the well-known manufacturer Ubiquiti from the UniFi series, which also features a 1.3" touch LCM display for easy control. There is also an RPS DC input that provides redundant power in case of a primary failure.

•

• Etherlighting ports that indicate port location, speed/link, and native VLAN/network

• 8× 2.5GbE PoE++ ports

• 16× GbE ports (including 8× PoE+ and 8× PoE++)

• 2× 10G SFP+ slots

• Backup power support

• 400W total PoE budget


One of the biggest advantages of this switch is the support of PoE according to the IEEE 802.3at/bt standard on each port (16x PoE++ and 8x PoE+) for powering multiple devices. By default, the UniFi Switch automatically detects 802.3at/bt on the connected device, so that the device can automatically receive PoE. The device also has ports with Etherlighting backlighting, which indicates the port location, speed/link and native VLAN/network (for optimal brightness, use UniFi Etherlighting cables).

•

• maximum PoE power per port is 15.4 W

• maximum PoE+ power per port is 30 W

• maximum PoE++ power per port is 60 W

• the maximum power of this model (total PoE budget) is 400 W


UniFi devices can be configured and managed using the UniFi Network application, which is pre-installed on UniFi OS consoles (UniFi Dream Machine, Dream Router, Dream Wall, Express, Cloud Gateway Ultra, etc.). Alternatively, the freely available UniFi Network Server software is available for installation on your own computer or server (Windows, MacOS, Linux). The UniFi Network Server software is constantly being improved, so we recommend always using the latest version, which you can download from the Ubiquiti website in the Download section. You can also learn more about this product at the Ubiquiti training .

BASIC SPECIFICATIONS

Ports: 16× 1Gbps RJ-45, 8× 2.5Gbps RJ-45, 2× 10Gbps SFP+

Switch capacity: 112 Gbps

PoE support: yes (802.3af/at/bt, 400 W PoE budget)

Dimensions: 442.4 × 325 × 43.7 mm

Weight: 5.1 kg (5.2 kg with rack mounts)

Manual (assembly instructions):

dl.ui.com/qig/usw-pro-max-24-poe/#index
