Ubiquiti Enterprise Access Hub - Hub, 10x GbE, 8x PoE Out 802.3af, 8x relays, 8+8 inputs, backup power

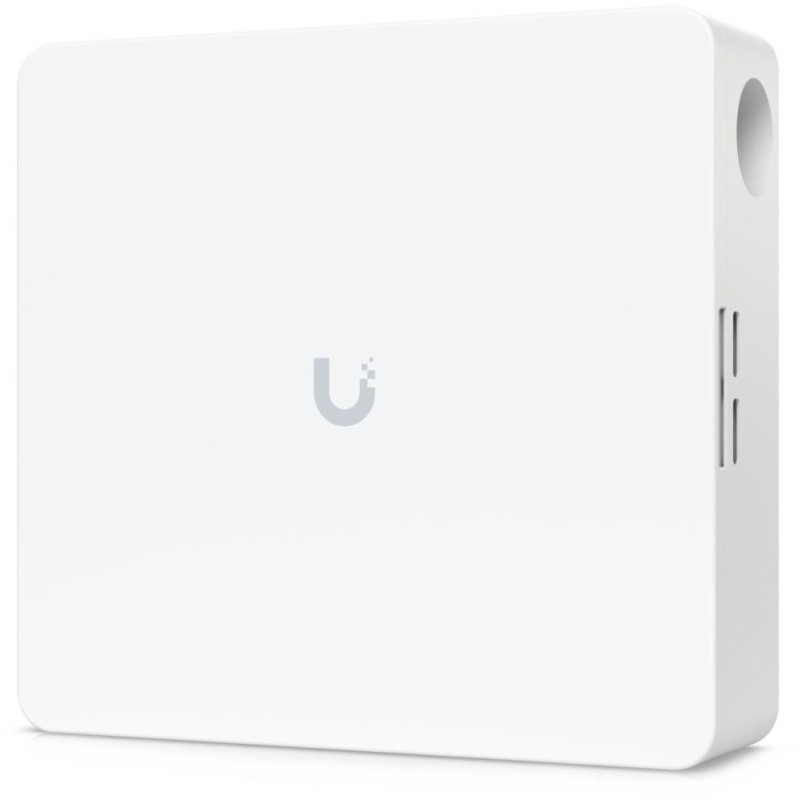

Ubiquiti UniFi Enterprise Access Hub

The UniFi Enterprise Access Hub is an intelligent, enterprise-class controller that controls entry and exit for up to eight doors . The universal interface supports most electronic and magnetic locks , and is compatible with 12V accessories (buttons, alarms, motion sensors, etc.).

•

• Integration with UniFi Access

• Eight RJ-45 PoE 802.3af ports for UniFi access readers

• 8× relays for lock control (12 V or Dry)

• 4× AUX output relays for connecting an external siren and automatic door opening

• 8+8 inputs for buttons, motion sensors and door position sensors

• 1× emergency input (connection to fire alarm system)

• Remotely manage your UniFi Access devices using one simple interface

• Set up policies, schedules, and access permissions

• Complete user management, setting their roles, assigning NFC cards, statistics, audit reports/logs, etc.

• Backup power support (PP45 lead-acid battery input, 32-48 V DC; battery not included)

• Steel housing with plastic cover and passage for optional lock

• Wall mounting using the included bracket

• Certification: CE, FCC, IC, UL 294, CAN/ULC-60839-11-1 (Class 1)


BASIC SPECIFICATIONS

Mounting: on the wall

Interfaces: 10× GbE RJ-45 (8× PoE 802.3af), 16× digital input, 8× output relay, 4× power relay

Power supply: AC 100–240 V, or battery DC 32–48 V, max. power consumption 240 W

Weight: 9.1 kg

Dimensions: 379 × 355 × 105 mm

Note: UniFi Dream Machine Pro, UniFi Dream Machine SE, UniFi Dream Router, UniFi Dream Wall, or Cloud Key Gen2 Plus is required to operate the UniFi Access system.

Manual (assembly instructions):

dl.ui.com/qig/eah-8/

PoE Cabling Requirements

Category 5e cable is the minimum recommended performance category. The performance category used should match the transmission speed required at the installation location.

The minimum wire size allowed for the connection between the PSE or power injector and the PD must be 26 AWG (0.13 ^mm2 ) for patch cables; 24 AWG (0.21 ^mm2 ) for horizontal or riser cable.
