Ubiquiti UniFi Switch Ultra - 8x GbE, 1x PoE++ In, 7x PoE+ Out (without power adapter)

Ubiquiti UniFi Switch Ultra

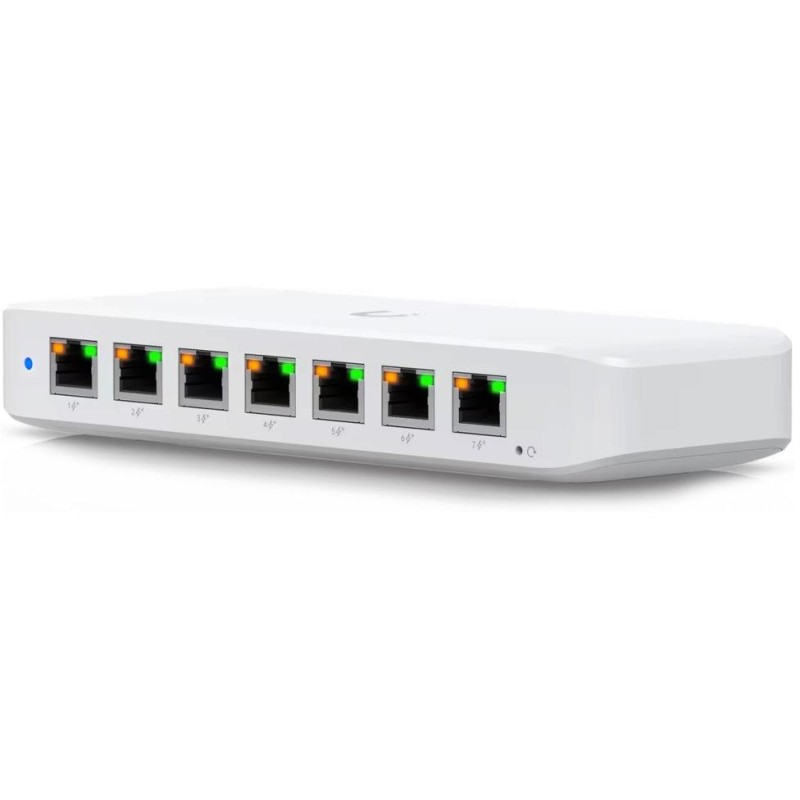

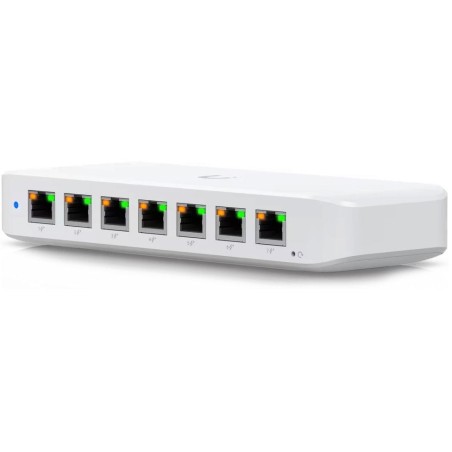

The UniFi Switch Ultra is equipped with seven GbE PoE+ output RJ-45 ports and one GbE PoE++ input RJ-45 port. It is an L2 switch with a total capacity of 16 Gbps , an unblocked throughput of 8 Gbps , and a PoE budget of up to 202 W (depending on the power supply type). The switch can be powered either via the DC connector (54 V DC) or via the PoE++ (802.3at/bt) input on the rear. It can be easily mounted on a wall with the included bracket.

•

• 7× GbE RJ-45 PoE+ output

• 1× GbE RJ-45 PoE++ input

• 42 W PoE budget (PoE++ input)

• Wall mounting possible (mounting kit included)


Power options:

•

• PoE+ (802.3at): PoE budget max. 16 W

• PoE++ (802.3bt): PoE budget max. 42 W

• DC adapter (60 W): PoE budget max. 52 W (adapter not included)

• DC adapter (210 W): PoE budget max. 202 W (adapter not included)


UniFi devices can be configured and managed using the UniFi Network application, which is pre-installed on UniFi OS consoles (UniFi Dream Machine, Dream Router, Dream Wall, Express, Cloud Gateway Ultra, etc.). Alternatively, the freely available UniFi Network Server software is available for installation on your own computer or server (Windows, MacOS, Linux). The UniFi Network Server software is constantly being improved, so we recommend always using the latest version, which you can download from the Ubiquiti website in the Download section. You can also learn more about this product at the Ubiquiti training .

Note:

The switch does not support LACP and STP/RSTP port aggregation.

BASIC SPECIFICATIONS

Ports: 1x GbE RJ-45 PoE++, 7x GbE RJ-45 PoE+

Switch capacity: 16 Gbps

Total non-blocking throughput: 8 Gbps

PoE support: yes (802.3af/at/bt, 42 W PoE budget)

Dimensions: 203 × 76 × 33 mm

Weight: 320g

Manual (assembly instructions):

Ubiquiti UniFi Switch Ultra
