Growatt SPH 10000TL3 BH-UP-SET
Set of 10kW hybrid asymmetric inverter, LFP battery storage with a capacity of 10 kWh and accessories.
Three-phase hybrid asymmetric inverter with 2 integrated MPP Trackers and a power of 10 kW , which combines the functions of an inverter, UPS, solar charger and battery charger . Solar panels, batteries, appliances, a power plant or the distribution network can be connected to the unit to obtain a complete hybrid system . RS-485, CAN or USB interfaces are available for communication and management. It can also be optionally supplemented with wireless Wi-Fi, RF or GPRS connectivity. It has an EURO efficiency of 97.5%. Batteries in a wide voltage range from 100 to 550 V can be connected to the inverter. Cooling is fanless. The inverter has a variety of operating modes and a VPP interface designed for the sale of electricity. The inverter has a backup output with a transition speed of up to 10 ms. Remote monitoring and power measurement is a matter of course.
Management unit (BMS) for ARK HV battery systems. The unit communicates with the inverter, checks the charge status of individual cells and takes care of their balanced charging. Supports a total of 3 to 10 ARK-2.5H-A1 battery modules .
The battery module with a capacity of 2.56 kWh and safe LiFePo4 technology is designed for storing excess energy from photovoltaic systems. The module does not contain a BMS and therefore must be supplemented with the ARK-2.5H-A1-BMS control unit.
The stand is designed for safe installation of ARK-2.5H-A1 batteries on the floor. The stand can hold up to 10 ARK-2.5H-A1 batteries.
High-voltage connection cables are used to connect Growatt ARK-2.5H-A1 batteries to the inverter.
Monitoring module designed for use with Growatt inverters. It communicates via a wireless Wi-Fi network and its range is up to 50 m . There is a memory for data collection for up to 1 month . It communicates with the inverter via the Modbus RTU protocol, and with the server via the TCP protocol.

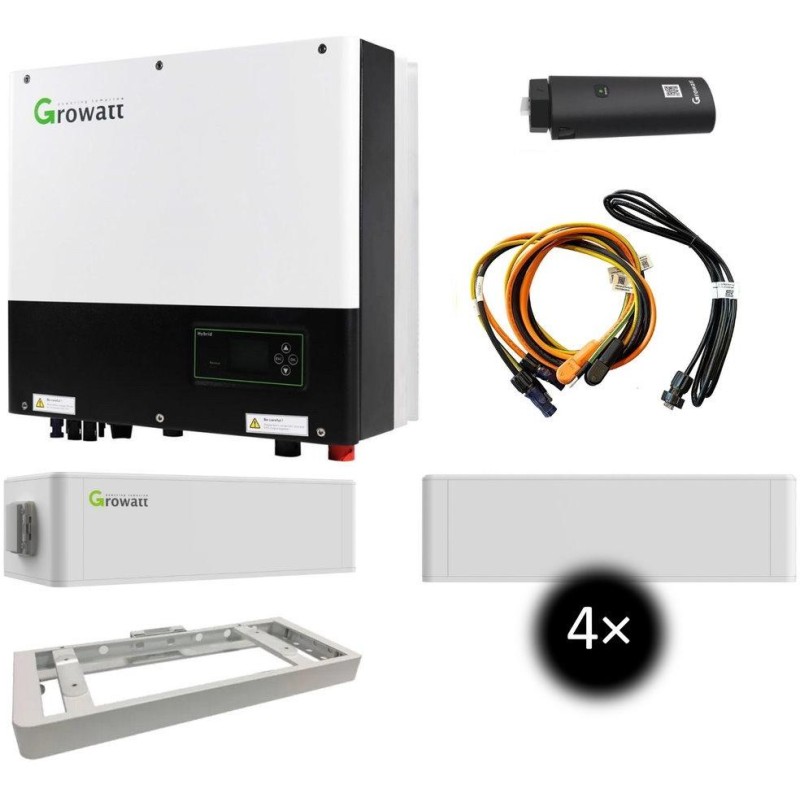

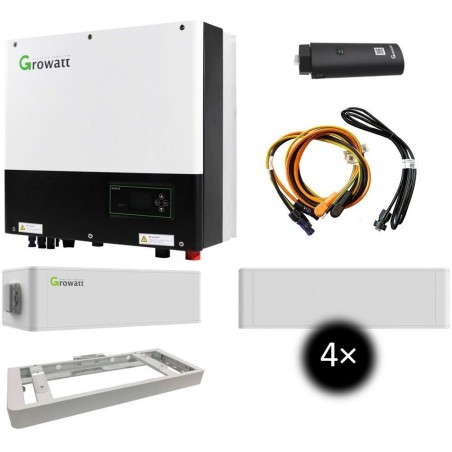

The set includes:
1× Growatt SPH 10000TL3 BH-UP - three-phase hybrid asymmetric inverter
1× Growatt ARK-2.5H-A1-BMS - control unit (BMS) for ARK HV battery systems
4× Growatt ARK-2.5H-A1 - battery module (LiFePo4) 2.5 kWh
1× Growatt ARK-2.5H battery stand - stand for safe battery installation
1× Growatt battery cable ARK-2.5H-A1 - high-voltage connection cables
1× Growatt ShineWiFi-X - monitoring module
The Growatt SPH 10000TL3 BH-UP inverter is in the list of products of the New Green for Savings program (code: SVT26170)
BASIC SPECIFICATIONS
Growatt SPH 10000TL3 BH-UP inverter
PV input (photovoltaics)
Max. DC input power: 15,000 W
PV input voltage: max. 1000 V
MPPT Range: 120-1000V / 600V
Starting voltage: 120 V
PV input current: 13.5 A (per each MPP Tracker)
Max. short current on MPPT: 16.9 A
Number of MPPTs: 2
Number of strings per MPPT: 1
Charger (battery)
Continuous charging and discharging power: 10,000 W
Battery type: lithium & lead acid battery
Battery voltage range: 100-550V
Max charging current: 25 A
Max. discharge current: 25 A
Inverter (AC output)
Rated power: 10,000 W
Max. apparent AC power: 10,000 VA
Rated AC voltage: 230/400 V (310–476 V)
Max output current: 15.2 A
Adjustable power factor: 0.8 capacitive ... 0.8 inductive
AC mains connection type: 3-phase (3W+N+PE)
Backup power (AC)
Rated power: 10,000 W
Max. apparent AC power: 10,000 VA
Rated AC voltage: 230/400 V (50/60 Hz)
Max output current: 15.2 A
Switching time: up to 10 ms
Efficiency: EU 97.5%
Communication interface: RS-485/CAN/USB
Protection: IP65
Dimensions: 505 × 453 × 198 mm
Weight: 30 kg
Growatt ARK-2.5H-A1-BMS control unit
Compatibility: Growatt ARK HV (ARK-2.5H-A1)
Communication: CAN
Max. number of connectable batteries: up to 10 pcs
Dimensions: 650 × 260 × 185 mm
Weight: 8.5 kg
Protection level: IP65
Growatt ARK-2.5H-A1 battery module
Capacity: 2.56 kWh
Rated voltage: 51.2 V
Battery capacity (nominal): 50 Ah
Charge/discharge current (standard, max.): 25 | 50 A
Battery technology: LiFePO4
Communication: CAN
Weight: 27 kg
Dimensions: 650 × 260 × 185 mm
Operating temperature: -10 to +50 °C, -20 to +40 °C (storage)
Protection level: IP65
Growatt battery stand ARK-2.5H
Compatibility: Growatt ARK-2.5H-A1
Weight: 5 kg
Color: white
Growatt cable for ARK-2.5H-A1 batteries
Compatibility: Growatt ARK-2.5H-A1
Package contents: 2× power cable, 1× communication cable, 1× ground cable
Weight: 800g
Growatt ShineWiFi-X monitoring module
Connection type: Wi-Fi (802.11b/g/n), 2.4 GHz
Antenna: internal
Interface: USB (Modbus RTU protocol)
Supply voltage: 5V DC
Dimensions: 135 × 79 × 29 mm
Weight: 60g
Operating temperature: -20°C to 65°C
Compatibility: Growatt inverters
