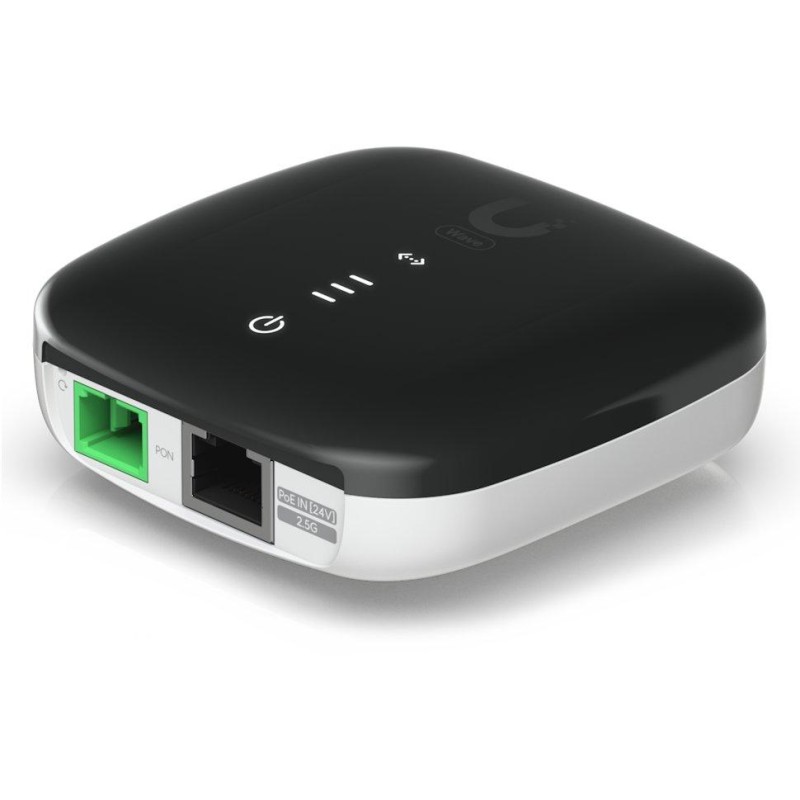

Ubiquiti WaveFiber ONU - GPON unit, SC/APC port, 1x 2.5GbE, PoE 24V

GPON optical network unit with 2.5GbE port for high-speed connections up to 20 km.

WaveFiber ONU is a compact optical network unit (ONU) using GPON technology to provide high-speed Internet connectivity. The device offers data transfer speeds of 1.244 Gbps for upload and 2.488 Gbps for download , enabling the full potential of optical networks to be utilized.

The unit is equipped with one SC/APC GPON WAN port for connection to the optical network and one 1/2.5 GbE RJ45 LAN port for connection to end devices. With compact dimensions of 76.5 × 76.5 × 26.4 mm and a low weight of 78 g, the device can be easily placed on a table or mounted on a wall.

WaveFiber ONU is fully compatible with UISP-FIBER-OLT-XGS, UF-OLT and UF-OLT-4 optical line terminals, ensuring seamless integration into existing infrastructure. The device offers advanced features including web server, NAT, bridging and routing, firewall and VLAN support.

The package includes a 24 V, 0.3 A PoE injector.

BASIC SPECIFICATIONS

Device type: GPON optical network unit

Network interface: 1× SC/APC ITU-G.984 GPON WAN port, 1× 1/2.5 GbE RJ45 LAN port

Transfer rates: 2.488 Gbps downstream, 1.244 Gbps upstream

Optical range: up to 20 km

Optical wavelengths: 1310 nm TX, 1490 nm RX

Optical power: TX 1.5 to 5 dBm, RX -8 to -28 dBm

Power supply: 24V passive PoE, range 20-28V DC

Consumption: max. 5 W

Dimensions: 76.5 × 76.5 × 26.4 mm

Weight: 78g
Operating temperature: -15 to 45 °C

Operating humidity: 10 to 90% non-condensing

Mounting: table, wall
