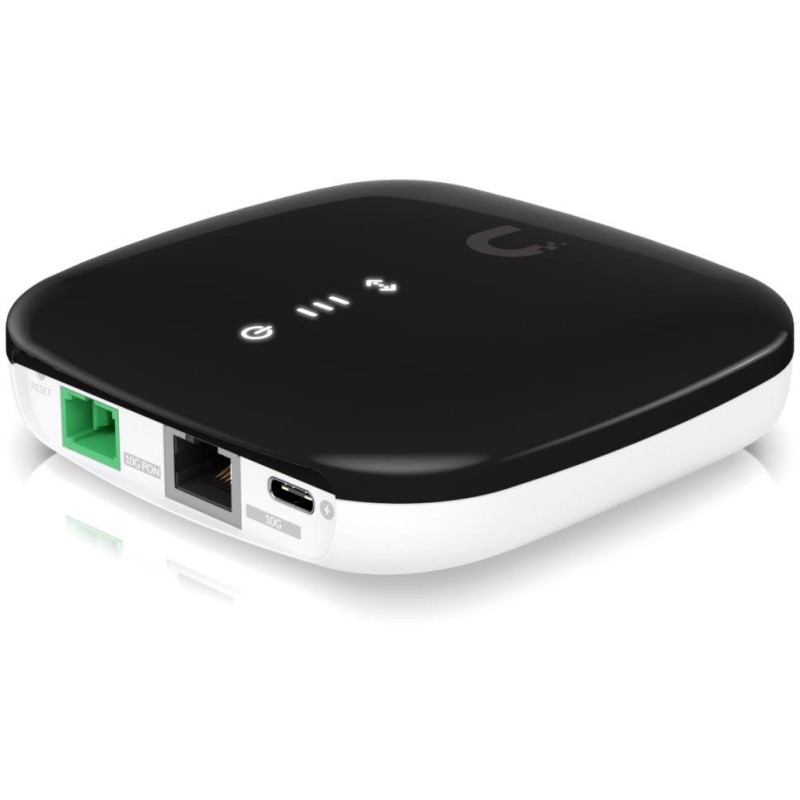

Ubiquiti UISP Fiber XGS - GPON unit, SC/APC port, 1x 10GbE port

Ubiquiti UISP Fiber XGS

Optical network unit that can provide transmission speeds of up to 10 Gb/s for uplink/downlink over distances of up to 20 km .

•

• UISP Fiber XGS-PON CPE

• 1× 10 GbE RJ-45 LAN port (100/1000/2500/5000/10000 MbE)

• 1× XGS-PON optical port (SC/APC), ITU-G.9807 XGSPON WAN standard

• Normal TX range of optical module: 4 to 9 dBm

• Typical RX range of optical module: -9 to -26 dBm

• Bridge and Router mode support

• Power adapter included

• Management using UISP (version 1.5.7 or later)


Note: This device is only compatible with UISP Fiber XGS OLT. It cannot be used with OLT devices from other manufacturers.

BASIC SPECIFICATIONS

Interface: Ethernet, PON

Ports: 1× SC/APC, 1× 10GbE RJ-45, 1× USB-C (power only)

Memory: 256MB DDR, 32MB NOR (flash)

Max. line speed (non-blocking): downstream 9.95 Gbit/s; upstream 9.95 Gbit/s

Operating wavelength: TX 1270 nm, RX 1577 nm

Range: 20 km

Encoding: NRZ (Scrambled NRZ)

Power supply: external adapter DC 5 V (3 A), consumption max. 8 W

Operating temperature: -15 to +45 °C

Weight: 220g

Dimensions: 100 × 100 × 27 mm

Manual (assembly instructions):

https://dl.ui.com/qig/uisp-fiber-xgs
