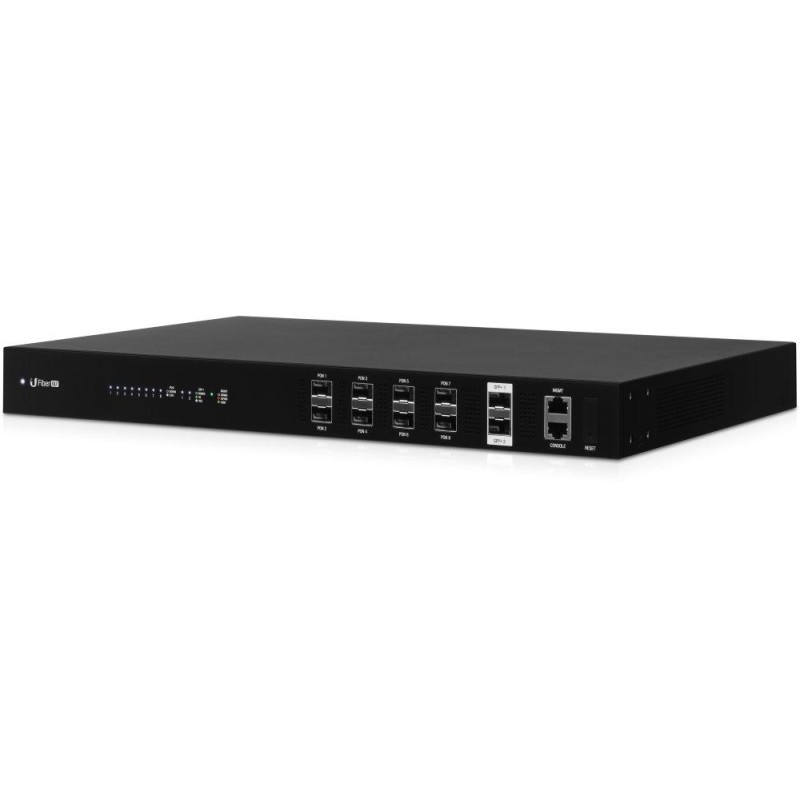

Ubiquiti UFiber OLT
8-port optical line terminal , which can provide transmission speed up to 2488 Mbps for downlink and 1244 Mbps for uplink. It supports up to 1024 simultaneously connected clients up to a distance of up to 20 km . UF-OLT is supplied as standard with one AC/DC power supply and one free slot for a second power supply. The free slot can be equipped with the same AC/DC or DC/DC power supply.
- UISP Fiber GPON OLT
- Optical interface speed up to 2488 Mbps (downlink) and 1244 Mbps (uplink)
- 8× 1G SFP ports OLT
- 2× 10G SFP+ uplink ports
- Capacity 1024 clients (8 ports)
- 2x Hot-Swap power supply slots (hot-swappable)
- AC/DC power module redundancy support (second module not included)
- 1U rack mount & SGCC steel housing
- Management using the UISP application
Note:
Connecting the ONU (UFiber Nano or Loco) directly to the OLT may cause damage to the optics in the ONU (or OLT) due to the high output power of the UF-GP-B+ module (approx. 3 dB). The allowed limit for optical power at the ONU input is in the range of -8 dB to -28 dB .
The package includes accessories for mounting in a 19" 1U rack, UFiber GPON B+ module (UF-GP-B+) and power cable.
BASIC SPECIFICATIONS
Interface: Ethernet, PON, Bluetooth
Ports: 8× 1G SFP, 2× 10G SFP+, 2× RJ-45 (management + console port)
Power supply: 1× internal Hot-Swap power supply AC 100–240 V (50/60 Hz), 1× free slot, redundancy support, max. 40 W consumption
Operating temperature: -10 to +45 °C
Weight: 4.4 kg (4.5 kg with rack mounts)
Dimensions: 442.4 × 285.6 × 43.7 mm
Manual (assembly instructions):
dl.ui.com/qig/uf-olt
