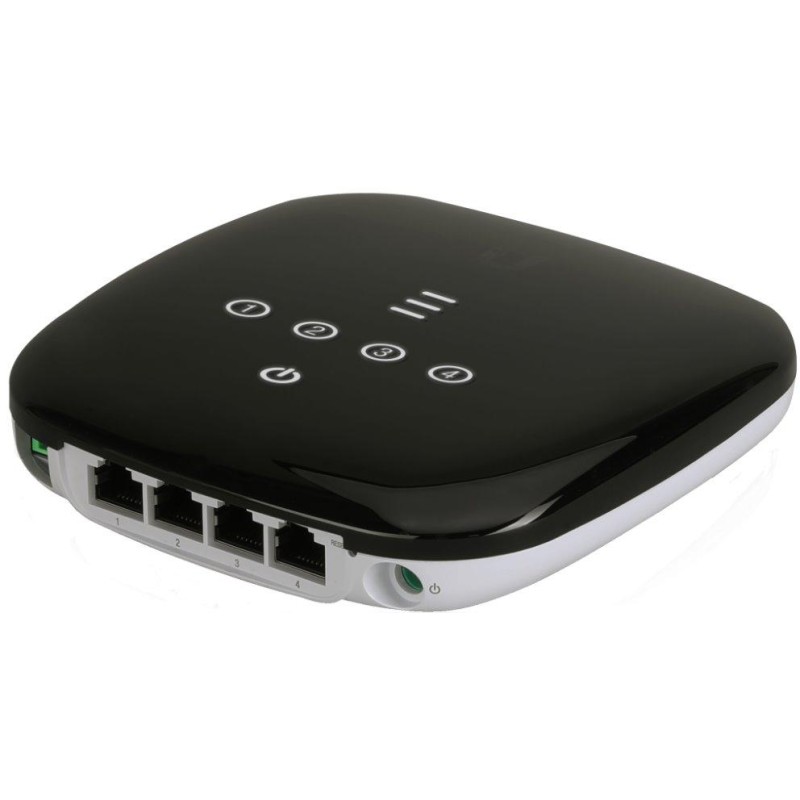

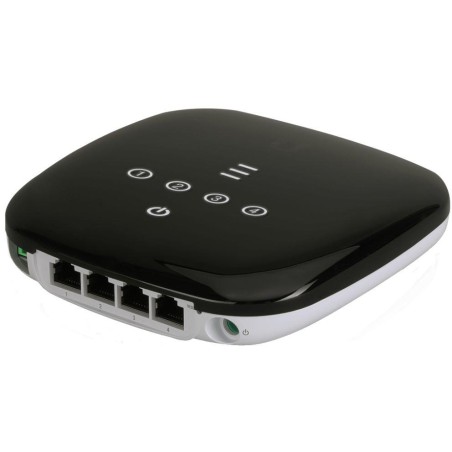

Ubiquiti UFiber WIFI
UFiber WiFi unit with SC/APC input GPON port (WAN) and 4 RJ-45 output ports. The maximum downstream speed is 2.488 Gbps (RX) and upstream speed is 1.244 Gbps (TX) on the WAN interface. UFiber WiFi also supports 2.4 GHz Wi-Fi connection 300 Mbit/s according to the 802.11n standard , so you don't have to buy another Wi-Fi router.
Supervision and management of UBNT UFiber WIFI units is carried out in the UNMS (Ubiquiti Network Management System) software.
UNMS is a comprehensive controller for centralized management of all registered 8-port UFiber OLTs , 4-port UFiber OLTs and their UFiber Loco and UFiber Nano clients.
It offers an intuitive web interface, quick device configuration, graphical reports for effective monitoring and troubleshooting. The biggest advantage is zero license fees for using the software.
Note: A list of supported OLTs from other manufacturers can be found here .
The package includes a 24V (0.5 A) power supply.
Important notice:
Connecting the UFiber WiFi unit directly to the OLT may cause damage to the optics in the UFiber WiFi device (or OLT) due to the high output power of the UF-GP-B+ module (approximately 3 dB). The allowed limit for optical power at the UFiber WiFi input is between -8 dB and -28 dB .
BASIC SPECIFICATIONS
Interface: 1x GPON (SC/APC), 4x RJ-45 1000Base-T
Wavelength: 1310/1490 nm
GPON standard: ITU G.984
Data transfer rate: 2488 Mbps / 1244 Mbps (downstream / upstream)
Wi-Fi: 802.11n, 2.4GHz
Power supply: 24 V passive PoE or 24 V (0.5 A) power adapter, power consumption max. 7 W
Operating temperature: -10 to +45 °C
Weight: 190g
Dimensions: 126.34 x 126.09 x 31.65mm
