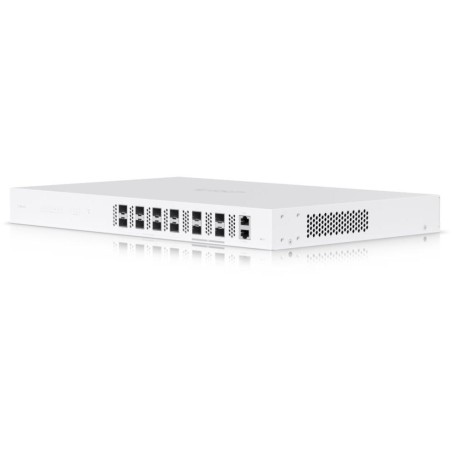

Ubiquiti UISP Fiber OLT XGS - 8x GPON port, 4x SFP28 port, 2x Hot-Swap, DAC cable

Ubiquiti UISP Fiber OLT XGS

An 8-port optical line terminal that can provide transmission speeds of up to 10 Gbps uplink/downlink for more than 2,000 subscribers.

•

• UISP Fiber XGS/XG/G-PON OLT

• XGS-PON with 10 Gbps bidirectional capacity

• 8× 10G SFP+ OLT ports

• 4× 25G SFP28 uplink ports

• Capacity 2048 clients (8 ports)

• 2x Hot-Swap power supply slots (hot-swappable)

• AC/DC power module redundancy support

• 1U rack mount & SGCC steel housing

• Management using UISP (version 1.5.7 or later)


Note:

The four SFP28 ports do not support combined speed in 25 Gbps mode. Once one of these SFP28 ports is configured to 25 Gbps mode, the other ports will also be set to 25 Gbps. The SFP28 ports only support combined speed mode when all ports are in 1 Gbps or 10 Gbps mode.

BASIC SPECIFICATIONS

Interface: Ethernet, PON, Bluetooth

Ports: 8× 10G SFP+, 4× 25G SFP28, 2× RJ-45 (console port)

Memory: 512MB DDR3, 64MB NOR + 512MB NAND

Power supply: 2× internal Hot-Swap power supply AC 100–240 V (50/60 Hz), redundancy support, max. 70 W consumption

Operating temperature: -10 to +45 °C

Weight: 5.29 kg

Dimensions: 442.4 × 285.6 × 43.7 mm

Manual (assembly instructions):

http://dl-origin.ubnt.com/qig/uisp-fiber-olt-xgs/
