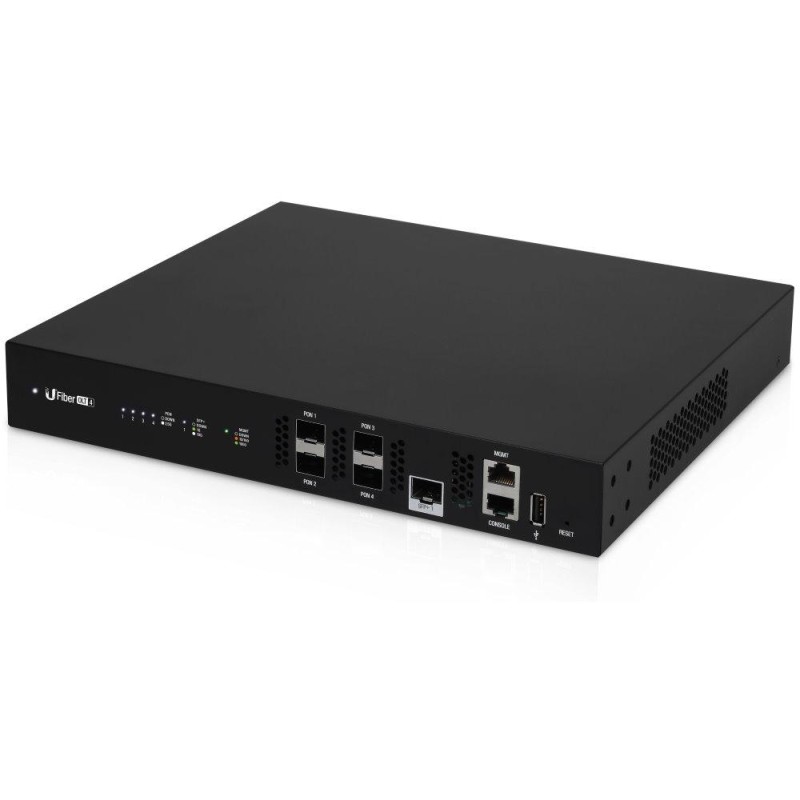

Ubiquiti UFiber OLT 4 - 4x GPON port, 1x SFP+ port, 35W + 1x UFiber GPON B+ module

Ubiquiti UFiber OLT 4

4-port optical line terminal , which can provide transmission speed up to 2488 Mbps for downlink and 1244 Mbps for uplink. Supports up to 512 simultaneously connected clients at a distance of up to 20 km .

•

• UISP Fiber GPON OLT

• Optical interface speed up to 2488 Mbps (downlink) and 1244 Mbps (uplink)

• 4× 1G SFP port OLT

• 1× 10G SFP+ uplink port

• Capacity 512 clients (4 ports)

• 1U rack mount & SGCC steel housing

• Management using the UISP application


Note:

Connecting the ONU (UFiber Nano or Loco) directly to the OLT may cause damage to the optics in the ONU (or OLT) due to the high output power of the UF-GP-B+ module (approx. 3 dB). The allowed limit for optical power at the ONU input is in the range of -8 dB to -28 dB .

The package includes accessories for mounting in a 19" 1U rack, UFiber GPON B+ module (UF-GP-B+) and power cable.

BASIC SPECIFICATIONS

Interface: Ethernet, PON

Ports: 4× 1G SFP, 1× 10G SFP+, 2× RJ-45 (management + console port), 1× USB

Memory: 512MB DDR3 + 512MB NAND

Power supply: internal AC 100–240 V (50/60 Hz) or DC 16–25 V, max. 35 W consumption

Operating temperature: -10 to +45 °C

Weight: 1.9 kg (2.1 kg with rack mounts)

Dimensions: 299.8 × 256 × 43 mm

Manual (assembly instructions):

dl.ui.com/qig/uf-olt-4
