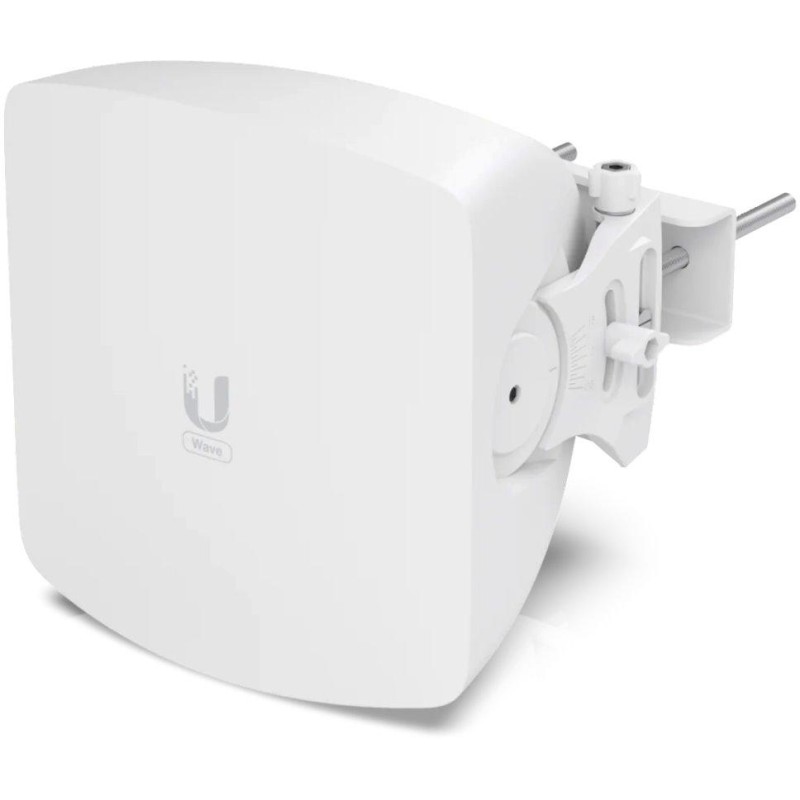

Ubiquiti UISP Wave Access Point
Wave-AP is a 60 GHz outdoor access point designed for PtMP (Point-to-Multipoint) connections with Wave technology. It is compatible with Wave Long-Range and Wave Nano units. The AP range is 5 or 8 km (depending on the station) , gain is 24 dBi , radio power (TX) is 23 dBm and total throughput is 5.4 Gbps (2.7 Gbps duplex).
The Wave-AP also features a powerful 5 GHz backup radio to ensure uninterrupted connectivity. The unit also features a Bluetooth management interface, so it can be easily set up and configured using the UISP Mobile app .
Function:
- Wave technology, PtMP access point, for connecting up to 31 stations/units (firmware version 3.4.0 and later)
- Total throughput up to 5.4 Gbps (2.7 Gbps duplex)
- Quad ARM Cortex-A53 (1.4 GHz) + 512 MB DDR3L, airOS operating system
- Backup 5 GHz connection (802.11ax Wi-Fi 6)
- Connection range 5 or 8 km (depending on the station)
- Integrated GPS
- Connection planning support via ISP Design Center
- Pole mounting (⌀ 25 to 76 mm)
Management using UISP application : version 1.5.7 or later
The package includes a 2.5 GbE PoE injector 48 V (0.65 A) and a pole mount .
BASIC SPECIFICATIONS
Frequency band: 60 GHz (operational 57-71 GHz), 5 GHz reserve
Throughput: 5.4 Gbps (2.7 Gbps duplex)
Interface: 1× 2.5 GbE RJ-45, 1× 10G SFP+, Wave technology
Antenna gain: 24 dBi (12 dBi for 5 GHz backup)
Beamwidth: azimuth 30°, elevation 3° (3 dB); 4° (6 dB)
PoE support: yes, passive PoE 48V or 24V
Max range: 5 km (Wave Nano), 8 km (Wave Long-Range)
Radio power (TX): 23 dBm
Weather resistance: IPX6
Dimensions: 212 × 205 × 187 mm
Weight: 2.3 kg
Color: white
The operation of the 60GHz link in the Czech Republic is only possible in accordance with the valid general authorization VO-R/12/03.2021-3. The actual range of the link depends on local regulations in the given country and local conditions.
Manual (assembly instructions):
https://dl.ui.com/qig/wave-ap.pdf
Datasheet:
https://dl.ui.com/ds/wave-ap_ds.pdf
