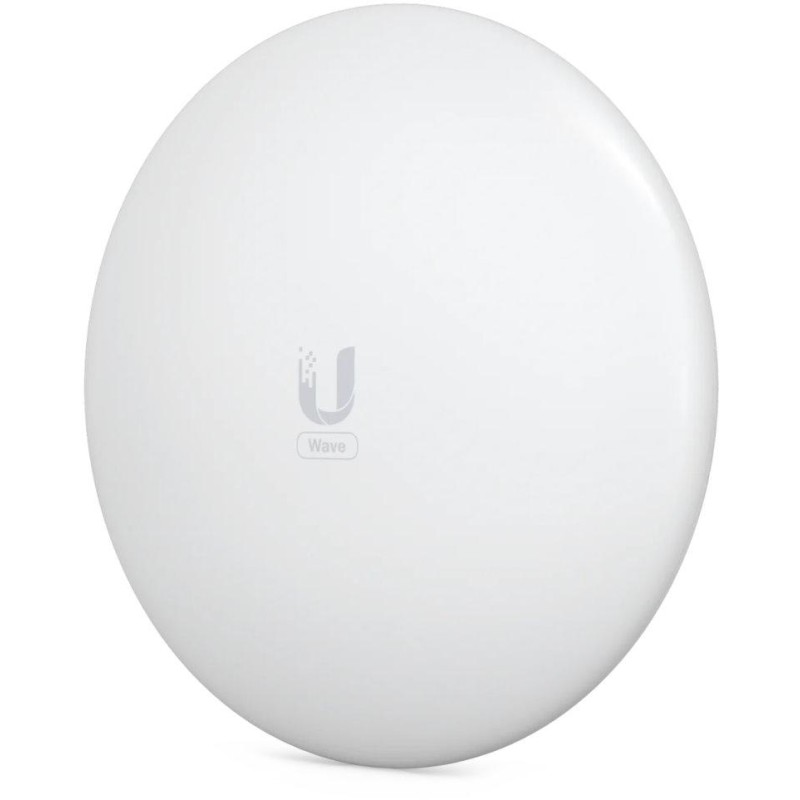

Ubiquiti UISP Wave Long Range
Wave-LR is a 60 GHz outdoor unit designed for PtMP connections (Point-to-Multipoint) with Wave technology (PtP from FW 3.2.0). It is compatible with client access points (Wave AP). The unit has a range of up to 8 km , a gain of 46 dBi , a radio power (TX) of 9 dBm and a total throughput of 2 Gbps (1 Gbps duplex).
The Wave Long-Range Station also features a powerful 5 GHz backup radio to ensure uninterrupted connectivity. The unit also features a Bluetooth management interface so it can be easily set up and configured using the UISP Mobile app .
Firmware 3.2.0 for 60 GHz Ubiquiti devices - Added PtP/PtMP mode switching for Wave Nano, Wave LR and AF60-LR.
More information at the link: https://community.ui.com/releases/Wave-PTMP-PTP-3-2-0/
Function:
- Wave technology, PtMP unit/station & PtP mode (firmware 3.2.0 and later)
- Dual ARM Cortex-A53 (1 GHz) + 512 MB DDR3L, airOS operating system
- Backup 5 GHz connection (802.11ax Wi-Fi 6)
- Connection range up to 8 km
- Bridge/router mode support
- Integrated GPS
- Connection planning support via ISP Design Center
- Pole mounting (⌀ 25 to 76.2 mm)
- Possibility to operate 2 of these devices as a Point-to-Point connection (from FW 3.2.0)
Management using UISP application : version 1.4.5 or later
The package includes a Gigabit power PoE injector 48 V (0.65 A) .
BASIC SPECIFICATIONS
Frequency band: 60 GHz (operational 57-71 GHz), 5 GHz reserve
Throughput: 2 Gbps (1 Gbps duplex)
Interface: 1x GbE RJ-45, Wave technology
Antenna gain: 46 dBi (22 dBi for 5 GHz backup)
Azimuth and elevation (beam width): 3 dB: 0.8°; 6 dB: 1.1°
PoE support: yes, passive PoE 48V or 24V
Max. range: 8 km
Radio power (TX): 9 dBm
Weather resistance: IPX6
Dimensions: 424.4 x 424.4 x 166.2 mm
Weight: 2.59 kg (3.79 kg with bracket)
Color: white
The operation of the 60GHz link in the Czech Republic is only possible in accordance with the valid general authorization VO-R/12/03.2021-3. The actual range of the link depends on local regulations in the given country and local conditions.
Manual (assembly instructions):
https://dl.ui.com/qig/wave-lr.pdf
Datasheet:
https://dl.ui.com/ds/wave-lr_ds.pdf
