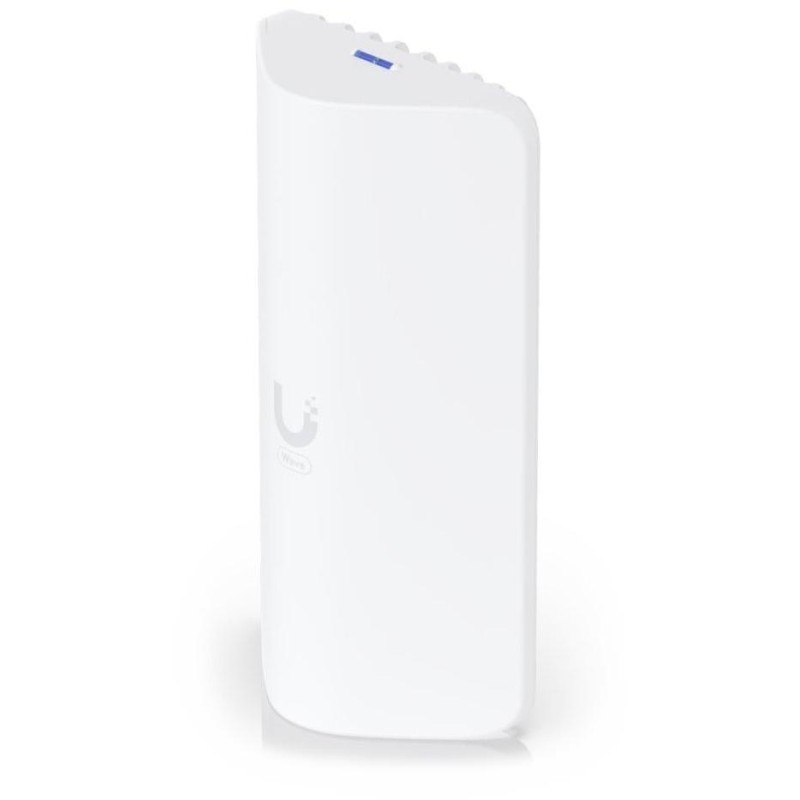

Ubiquiti Wave AP Micro - 60GHz PtMP AP, 20 dBi, 5GHz backup, 90° angle, 5 Gbps throughput

Ubiquiti UISP Wave AP Micro

Wave-AP-Micro is a 60 GHz outdoor access point designed for PtMP (Point-to-Multipoint) connections with Wave technology. It is compatible with Wave Long-Range and Wave Nano units. The AP range is 4 or 6 km (depending on the station) , gain is 20 dBi , radio power (TX) is 23 dBm and the total throughput is 5 Gbps (2.5 Gbps duplex).

The access point is also equipped with a powerful redundant 5 GHz radio (802.11ax) to ensure uninterrupted connectivity. The unit is also equipped with a Bluetooth management interface, so it can be easily set up and configured using the UISP Mobile app .

Function:

•

• Wave technology, PtMP access point, for connecting up to 31 stations/units (firmware version 3.4.0 and later)

• Total throughput up to 5 Gbps (2.5 Gbps duplex)

• Quad ARM Cortex-A53 (1.4 GHz) + 512 MB DDR3L, airOS operating system

• Backup 5 GHz connection (802.11ax Wi-Fi 6)

• Connection range 4 or 6 km (depending on the station - Wave Long-Range 6 km & Wave Nano 4 km)

• Integrated GPS

• Connection planning support via ISP Design Center

• Pole mounting (⌀ 35 to 60 mm)

• Weather resistance IPX6

• Wind load 87 N at 200 km/h (20 lbf at 125 mph)


Management via UISP app : version 2.2.11 (web), 2.25.1 (iOS), 2.27.5 (Android) or later

The package includes a 2.5 GbE PoE injector 48 V (0.65 A) and a pole mount .

BASIC SPECIFICATIONS

Frequency band: 60 GHz (operational 57–71 GHz), 5 GHz reserve

Throughput: 5 Gbps (2.5 Gbps duplex)

Interface: 1× 2.5 GbE RJ-45, Wave technology, 802.11ax Wi-Fi 6 (backup)

Antenna gain: 20 dBi (13.5 dBi for 5 GHz backup)

Beamwidth: azimuth 90° (3 dB), elevation 7° (3 dB); 12° (6 dB)

PoE support: yes, passive PoE 48V or 24V

Max. range: 4 km (Wave Nano), 6 km (Wave Long-Range)

Radio power (TX): 23 dBm

Weather resistance: IPX6

Dimensions: 284 × 156 × 76 mm

Weight: 1.3 kg

Color: white

The operation of the 60GHz link in the Czech Republic is only possible in accordance with the valid general authorization VO-R/12/03.2021-3. The actual range of the link depends on local regulations in the given country and local conditions.

Manual (assembly instructions):

https://dl.ui.com/qig/wave-ap.pdf

Datasheet:

alt="book_1.jpg" />https://dl.ui.com/ds/wave-ap_ds.pdf
