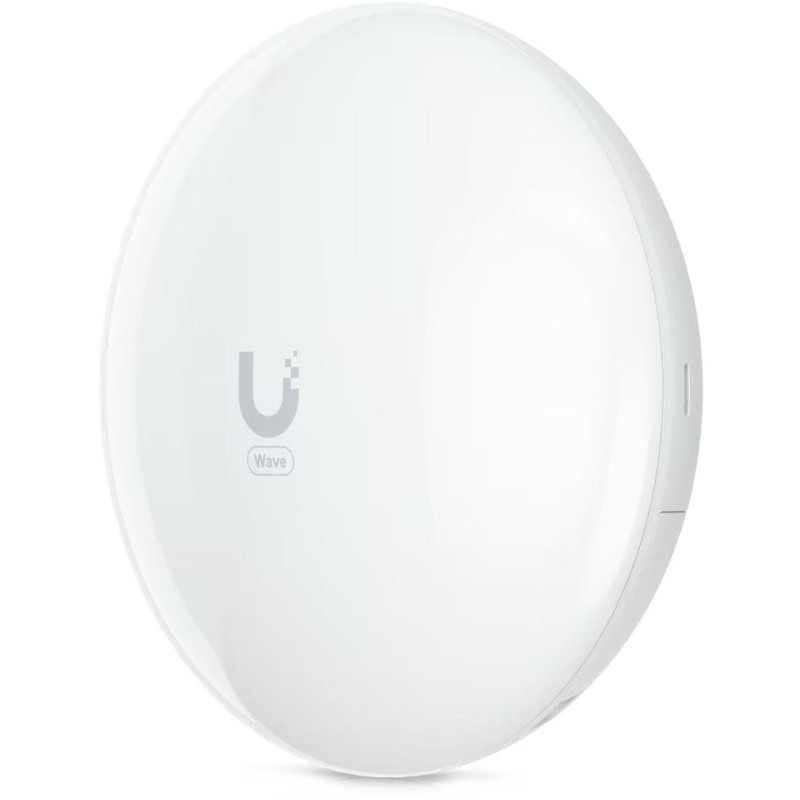

Ubiquiti UISP Wave Pico
Wave-Pico is a 60GHz outdoor unit designed for PtMP (Point-to-Multipoint) and PtP connections with Wave technology. It is compatible with client access points (Wave AP and Wave AP Micro). The unit has a range of up to 1.3 km with Wave AP, up to 0.9 km with Wave AP Micro, a gain of 27.7 dBi and a total throughput of 2 Gbps (1 Gbps duplex).
The Wave-Pico also features a powerful 5 GHz backup radio to ensure uninterrupted connectivity. The unit also features a Bluetooth management interface so it can be easily set up and configured using the UISP Mobile app .
Function:
- Total throughput up to 2 Gbps (1 Gbps duplex)
- Dual-core ARM Cortex-A53 (1 GHz) + 512 MB DDR3L
- Backup 5 GHz connection (802.11ax Wi-Fi 6)
- Connection range 1.3 or 0.9 km (depending on the station - Wave AP 1.3 km & Wave AP Micro 0.9 km)
- Bridge/router mode support (router only in PtMP mode)
- Connection planning support via ISP Design Center
- Pole mounting (⌀ 20 to 53.1 mm)
- Weather resistance IPX6
- Wind load 31.3 N at 200 km/h (7 lbf at 125 mph)
Management via UISP app : version 2.4.61 (web), 2.32.0 (iOS), 2.31.9 (Android) or later
The package includes a 48 V (0.5 A) GbE power PoE injector and a pole mount .
BASIC SPECIFICATIONS
Frequency band: 60 GHz (operational 57–71 GHz), 5 GHz reserve
Throughput: 2 Gbps (1 Gbps duplex)
Interface: 1× GbE RJ-45, Wave technology, 802.11ax Wi-Fi 6 (backup)
Antenna gain: 27.7 dBi (9 dBi for 5 GHz backup)
Azimuth and elevation (beam width): 3 dB: 6°; 3 dB: 6°
PoE support: yes, passive PoE 48V
Max. range: 1.3 km (Wave AP), 0.9 km (Wave AP Micro)
Weather resistance: IPX6
Dimensions: 152.1 x 152.1 x 55.8mm
Weight: 347 g (including holder 409 g)
Color: white
The operation of the 60GHz link in the Czech Republic is only possible in accordance with the valid general authorization VO-R/12/03.2021-3. The actual range of the link depends on local regulations in the given country and local conditions.
Manual (assembly instructions):
https://ui.com/qig/wave-pico
