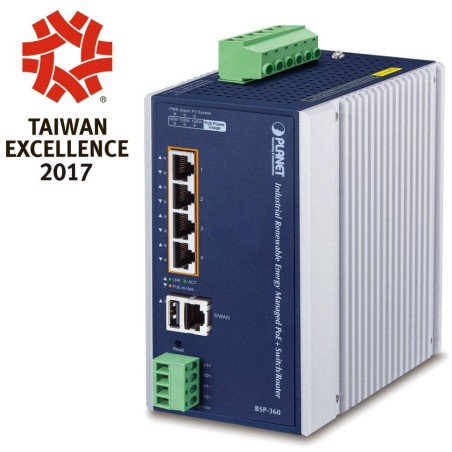

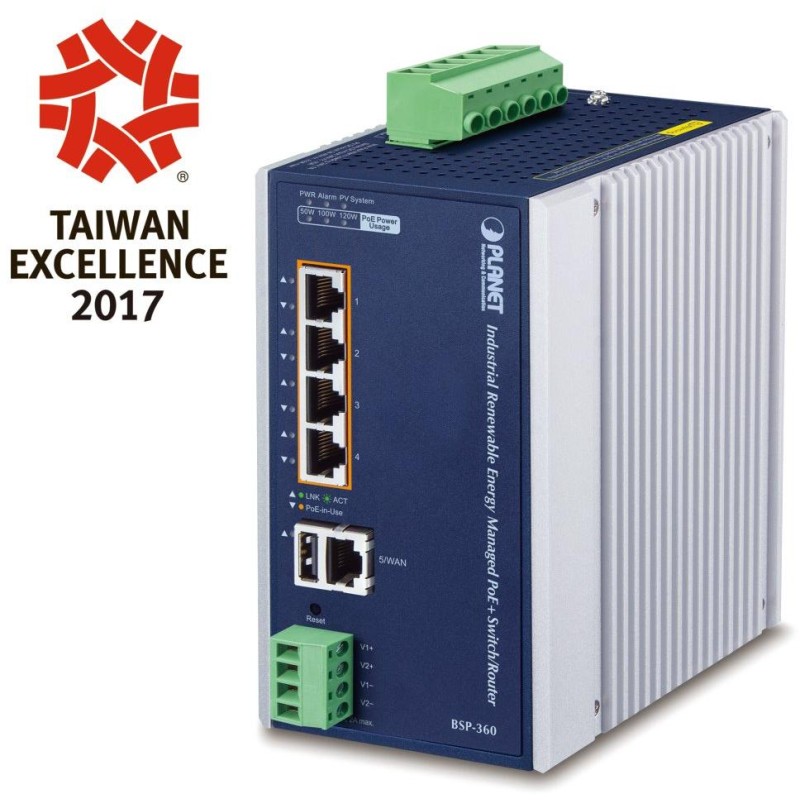

PLANET BSP-360 v3
Solar powered PoE+ router with switch and integrated MPPT controller, 4x RJ-45 10/100/1000 Base-T with PoE+ IEEE 802.3af/at (36 W/port) , 120 W PoE budget, 1x RJ-45 10/100/1000 Base-T (WAN in Gateway mode), 1x USB (configuration backup).
1x power input for PV (photovoltaic) panel DC 24-45 V up to 400 W + some types of generators (hydro or wind), 1x power input/output for battery (Pb/Li-ion, the type of connected battery is switchable), 2x power output DC 24 V (max. 2 A) , DC output voltage depends on the battery.
ESD protection up to 6 kV, IP30 protection (aluminum housing), wall or DIN rail mounting, operating temperature -10 to +60 °C .
- Integration of PoE technology and renewable energy system (solar, wind and hydropower)
- Designed for deployment of surveillance or wireless network and for remote monitoring and management
- Remote management option using NMS-360 Network Management Controller
The solution provides the ability to power connected active devices, such as IP cameras, switches and converters or Wi-Fi units, 24 hours a day, 7 days a week without dependence on the power grid. The application is therefore suitable for providing surveillance in the environment of parks, forests, cottages or large agricultural and industrial technologies, thanks to uninterruptible power supply, and as a means of building telecommunication points for local internet providers.
Battery management:
- Supports lithium (Lithium, Li-ion) and lead-acid (Lead-acid, Pb) batteries, optional
- Input power (PV IN): min. voltage 24 V (we recommend > 30 V for full battery charge), max. 45 V, max. current 8.8 A, power consumption up to 400 W
- Easy diagnosis of system operating status using LED indicator
- Current battery usage status
- MPPT (Maximum Power Point Tracking) charge controller
- Low voltage shutdown protection: send a notification and cut off power when the battery is low
- Reverse current protection (prevents the backflow of electrical current into the photovoltaic panel)
- Overcurrent protection and reverse polarity protection (for battery and charging electrodes)
BASIC SPECIFICATIONS
Physical properties:
Ports: 4x 1x RJ-45 10/100/1000 Base-T with PoE+ IEEE 802.3af/at, 1x 1x RJ-45 10/100/1000 Base-T LAN/WAN (depending on mode), 1x USB type A (configuration backup)
Memory: 8k MAC addresses, 512 Kb buffer
Throughput: 10 Gbps bus, operational 5.95 Mpps (64B)
Design: DIN rail, wall-mounted
Power supply (router): via photovoltaic panels (DC 24-45 V) or from battery (DC 24 V), total power consumption up to 135.36 W (full load with PoE power supply)
Input power:
Solar panel - min. voltage 24 V (we recommend > 30 V for full battery charge), max. 45 V, max. current 8.8 A, power consumption up to 400 W
Battery - DC 24V (10A), lithium or lead acid, 16-20 AWG (terminal block wires)
Output power: 4x PoE+ RJ-45 & 2x DC 24 V power output (max. 2 A), 4pin terminal block (front), DC output voltage is dependentbattery operated
Protection: ESD up to 6 kV (Ethernet)
Operating temperature: -10 to +60 °C
Dimensions: 152 x 107 x 89 mm
Weight: 1251g
Administration functions:
Management: WEB, SNMP trap, SNMP v1/v2c, PLANET Smart Discovery Utility, NMS-360 support
Access control: by IP and MAC addresses, URL and port filter, DoS attack prevention
Spanning Tree Protocol:
STP protocol, IEEE 802.1d Spanning Tree protocol
IGMP: IGMP proxy
Wiring diagnostics: no
PoE function:
Total power output: up to 120 W, 802.3af/at
Number of injectors: 4x up to 36 W
Power supply type: End-span
Advanced features:
control and management of individual PoE ports (priority, power on/off, power limit, etc.)
integrated scheduler for scheduled shutdown of powered end elements (PoE schedule)
detection of activity of powered devices using ICMP, if there is no response, it can be restarted by disconnecting the power (PD alive check)
