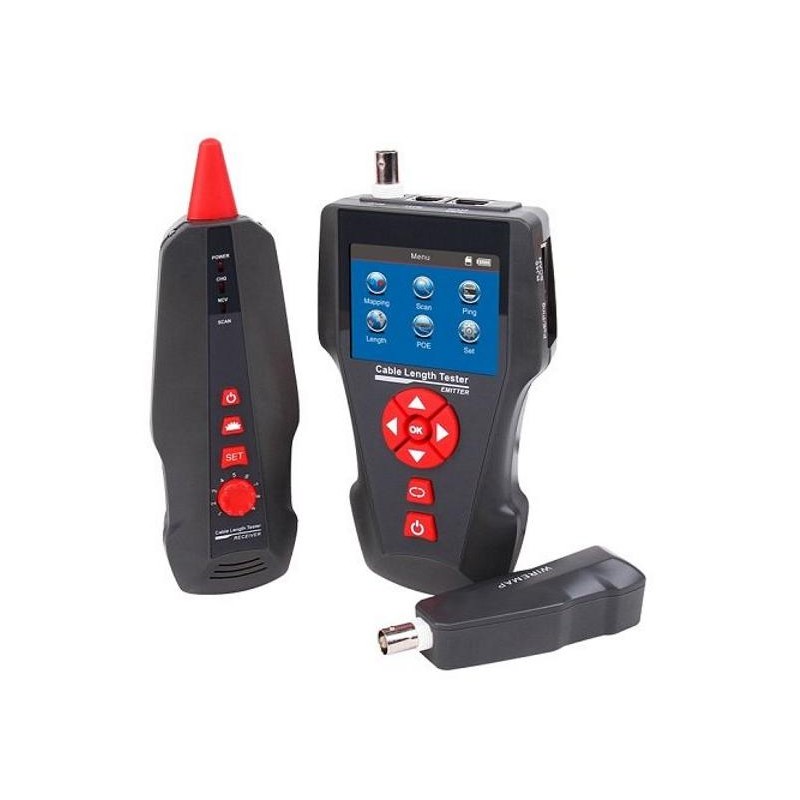

XtendLan Tester STP+PSTN+coax+USB, LCD display, line length measurement, PoE and PING test, probe

XtendLan LANTESTLCD80-SPP

Tester for UTP/STP (RJ-45), coaxial (BNC) and telephone (RJ-11) lines. Ohmic measurement methods including advanced PoE and PING response tests.

Equipped with a detection probe for searching for cable connections, 1x counter loop. Color LCD display.

BASIC SPECIFICATIONS

Display: LCD, 128 x 64 pixels

Function: Auto off

Battery: 3.7 V, Lion, 1800 mAh

Memory card reader: slot for uSD (TF) card to save records (cable connections, line lengths, PoE voltage on the wires)

Working temperature: -10 to 60 °C

Tester dimensions: 173 x 92 x 34 mm

Probe dimensions: 183 x 58 x 35 mm

Loop dimensions: 106 x 32 x 30 mm

Type of measured cables:

UTP/STP typically CAT5, CAT5E, CAT6

coaxial cables

USB connection cables

telephone and other single-pair cables

Types of measurements:

Wire length measurement, reflection method

Open circuit/short circuit test with fault location identification

Cable wiring diagram – only for RJ45 ports with loopback

Finding cable lines with a probe

Cable identification

Ping (ICMP) to the selected IP address

Measuring PoE voltage levels on wires

Length measurement accuracy:

for an unknown cable after performing a previous calibration on a sample of at least 10 m in length: 2% of the length and +/- 0.5 m

for CAT5E cables: 3% of the length and +/- 0.5 m

---
