TINYCONTROL current sensor SCT up to 30A for LAN controller LK3 and LK4

Tinycontrol current sensor up to 30 A

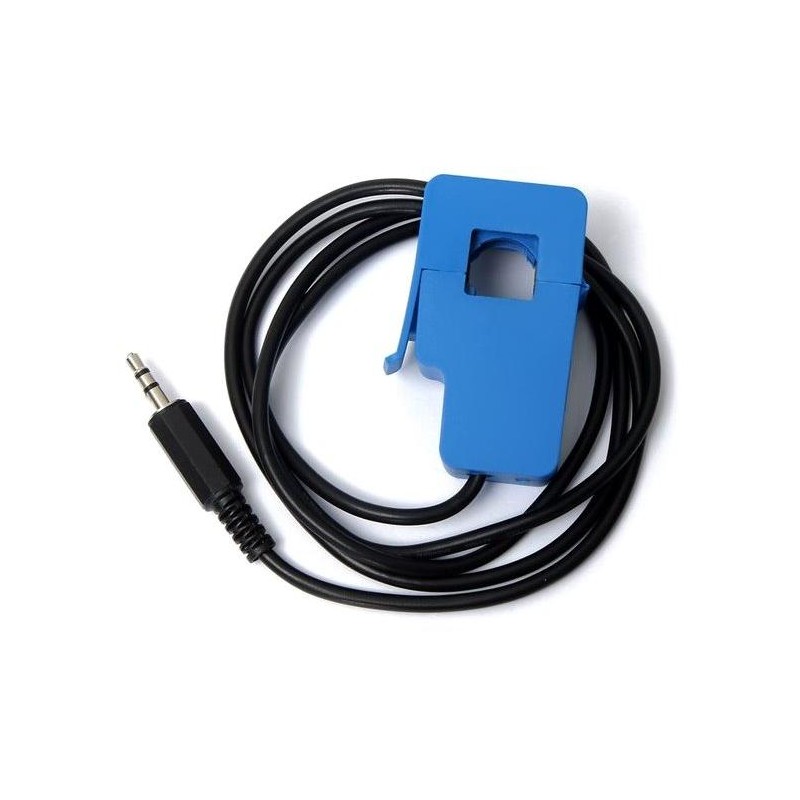

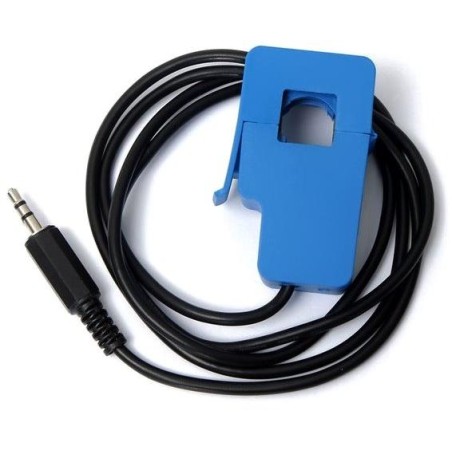

Non-invasive current transformer SCT-013-030 for indirect current measurement . The output AC voltage is proportional to the current in the main conductor and is intended for LAN controller LK3 and LK4 .

Measurements must be made on only one wire, not the entire cable, where current flows in both directions. The sensor is connected to the INPA1-4 inputs and GND for these inputs. It is supplied with a 3.5 mm jack connector (male), which can be cut to the required length or a 3.5 mm jack connector (female) can be connected to the LAN controller with the wiring, see photos.

TECHNICAL SPECIFICATIONS

AC current range: 0-30 A (AC)

Maximum diameter of the measured conductor: 12 mm

Built-in sampling resistor: 62 Ohm

Output voltage alternating: 0-1 V (AC)

Cable length: 1 m

Weight: 45g

You can find the method of connecting the sensor to the LAN controller in the manual .
