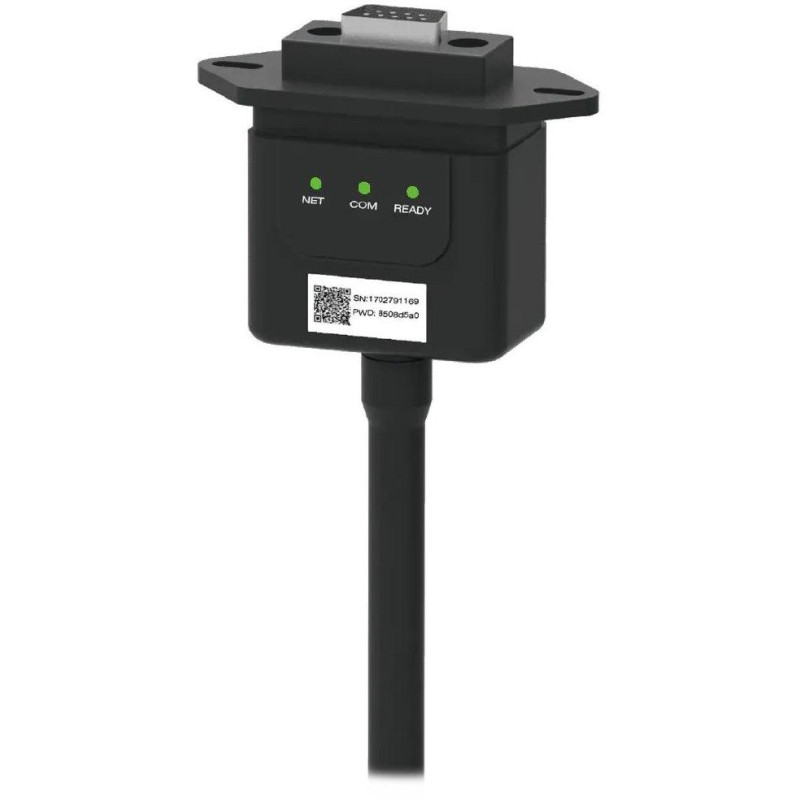

Solarmi LSW-3 Stick logger - Monitoring platform with Wi-Fi for Xtend Solarmi/Deye inverters

Xtend Solarmi Deye LSW-3 Stick logger

The LSW-3 monitoring platform will enrich your inverter with a 2.4 GHz Wi-Fi wireless connection and ensure reliable remote management and data transfer to the cloud and subsequent management via the SOLARMAN application. Among other things, it allows remote instant shutdown, parameter settings or firmware updates. There is also a Bluetooth interface for on-site configuration, debugging, and data collection on operation and energy production from the inverter.

•

• Outdoor design, IP65 protection

• Easy installation Plug and Play, powered by inverter

• LED status indication

• Bluetooth interface for configuration and debugging

• Easy remote monitoring with the SOLARMAN app


BASIC SPECIFICATIONS

Compatibility: Xtend Solarmi, Deye inverters

Communication interface: Wi-Fi, RS-485, RS-232, TTL

Configuration interface: Bluetooth, web, app

Power: 1.5W

Voltage: 4.7-15V DC

Antenna: external Wi-Fi antenna

Protection level: IP65

Operating temperature: –40 to +85 °C

Color: black
